Handling bullet masking

This tutorial is a collection of techniques that can be used to tackle various approaches to masking of bullets on an XY chart.

Default behavior

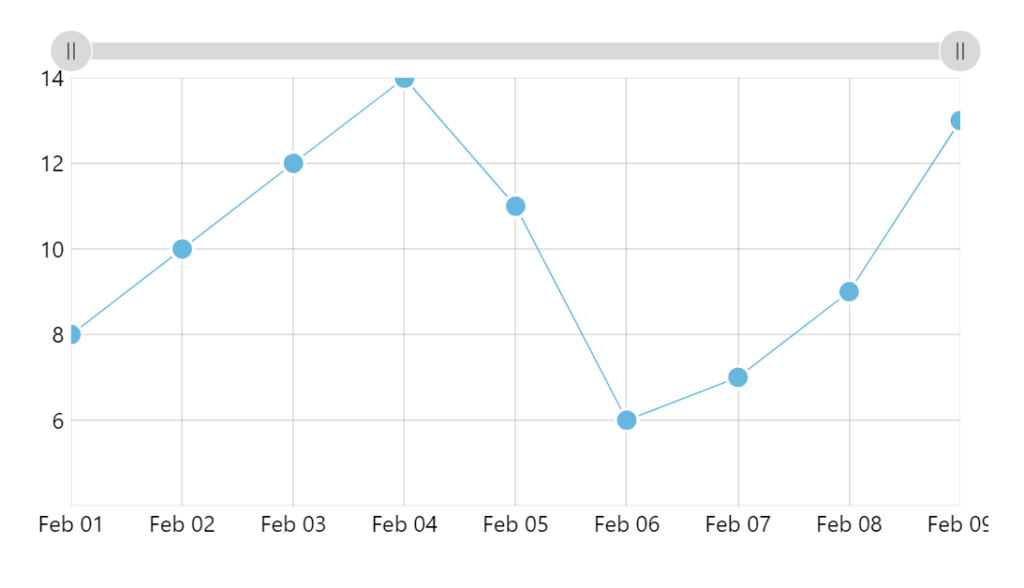

By default, an XY chart will contain all plots, including bullets within its plot area.

This means that if bullets extent beyond plot area edge, they’ll be cut off.

Unmasking bullets

Disabling the bullet mask

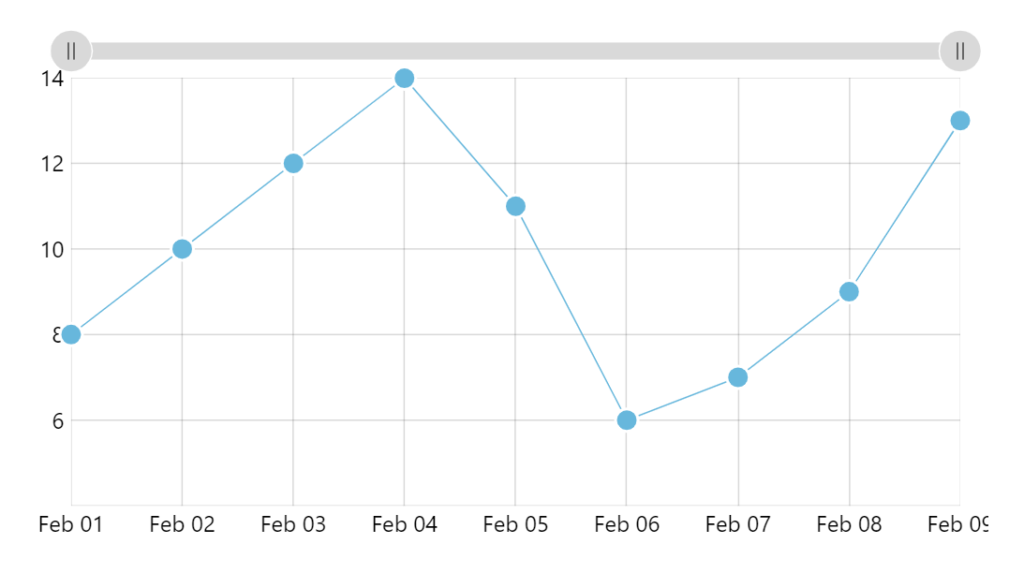

To disable bullet masking, set maskBullets to false in your series settings:

TypeScript

let series = chart.series.push(am5xy.ColumnSeries.new(root, {
  xAxis: xAxis,
  yAxis: yAxis,
  valueYField: field,
  valueXField: "date",
  maskBullets: false
}));

JavaScript

var series = chart.series.push(am5xy.ColumnSeries.new(root, {
  xAxis: xAxis,
  yAxis: yAxis,
  valueYField: field,
  valueXField: "date",
  maskBullets: false
}));

If our chart did not have zoom capabilities, we’d be all set.

However, if the chart can be zoomed, we’ll need to do some further tweaks. Read on.

Out-of-bounds bullets

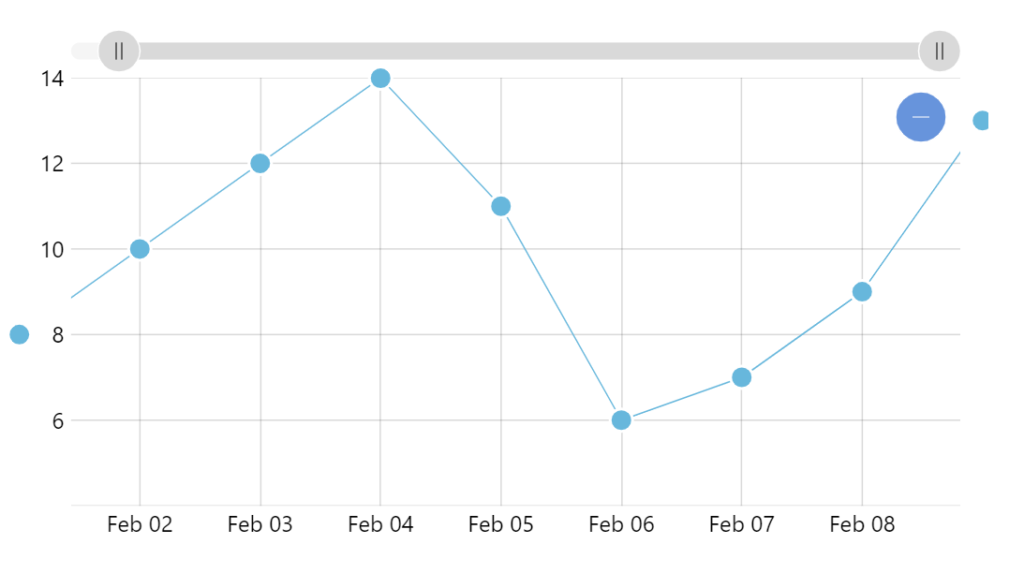

Now that we have disabled bullet masking, they’re no longer constrained to plot container, which could lead to visual issues when chart is zoomed.

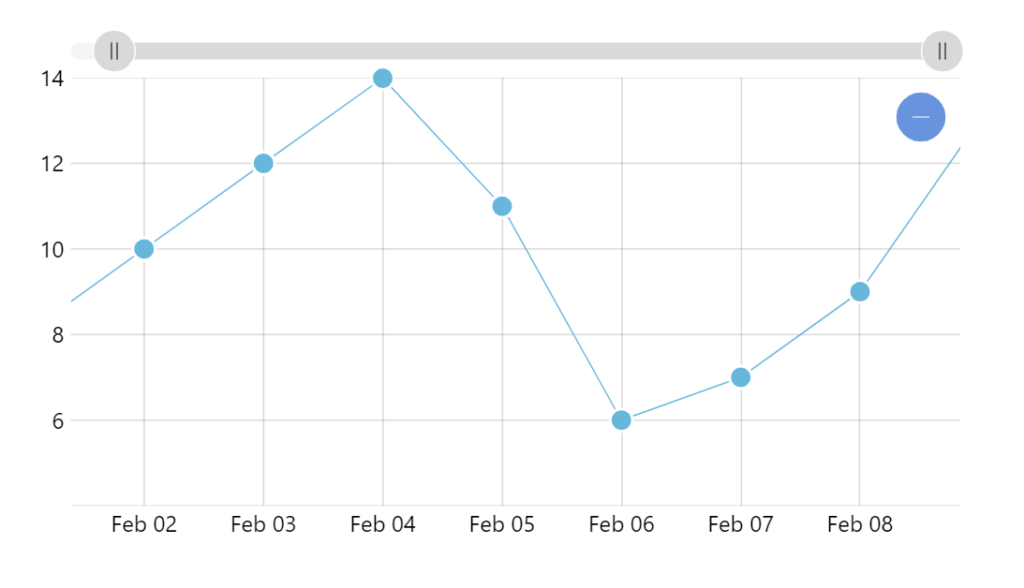

To work around it, we will use bullet element’s events to capture the moment when its X coordinate changes, then check if it falls within plot container, and hide or show it accordingly.

TypeScript

series.bullets.push(function () {
  let circle = am5.Circle.new(root, {
    radius: 8,
    fill: series.get("fill"),
    stroke: am5.color(0xffffff),
    strokeWidth: 2
  });

  circle.on("x", function(x, circle) {
    if ((x < 0) || (x > chart.plotContainer.width())) {
      circle.hide(0)
    }
    else {
      circle.show(0)
    }
  });

  return am5.Bullet.new(root, {
    sprite: circle
  });
});

JavaScript

series.bullets.push(function () {
  var circle = am5.Circle.new(root, {
    radius: 8,
    fill: series.get("fill"),
    stroke: am5.color(0xffffff),
    strokeWidth: 2
  });

  circle.on("x", function(x, circle) {
    if ((x < 0) || (x > chart.plotContainer.width())) {
      circle.hide(0)
    }
    else {
      circle.show(0)
    }
  });

  return am5.Bullet.new(root, {
    sprite: circle
  });
});

Open in CodePen

Padding plot area

Another approach for dealing for bullets that get clipped because they’re too close to the edge of the plot container, is to slightly increase the scale of axis.

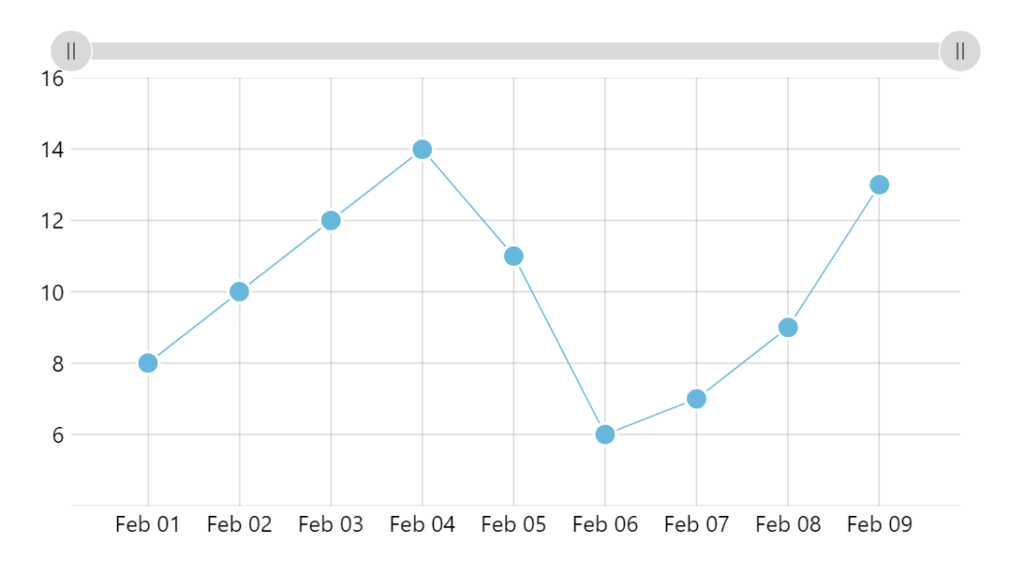

This can be achieve with axis’ extraMin and extraMax settings, that indicate how to relatively expand its scale.

These settings will work on both value and date axes.

TypeScript

let yAxis = chart.yAxes.push(
  am5xy.ValueAxis.new(root, {
    extraMin: 0.05,
    extraMax: 0.05,
    renderer: am5xy.AxisRendererY.new(root, {})
  })
);

JavaScript

var yAxis = chart.yAxes.push(
  am5xy.ValueAxis.new(root, {
    extraMin: 0.05,
    extraMax: 0.05,
    renderer: am5xy.AxisRendererY.new(root, {})
  })
);

Open in CodePen
