Panning and zooming the map

This tutorial looks at all the ways we can configure map panning and zooming.

Panning

The map chart has two options related to panning it: panX and panY.

panX controls what happens when map is dragged horizontally, and panY is responsible for vertical drag behavior.

There are three options for both:

Value	Comment
"none"	Do nothing. Map will remain static when dragged in the specific direction.
"rotateX" or "rotateY"	Will “rotate” the map, wrapping around contents like a globe would be rotated.
"translateX" or "translateY" (default)	Move contents of the map without changing appearance.

Zooming

Zooming in and out the chart can be done in a variety of ways, e.g. with mouse wheel or pinch gestures, via API and some interactions on the map, or via zoom control.

Zoom steps

Whenever zoom operation kicks in (via API, zoom control, or mouse wheel spin) the map changes its zoom level by 2.

We can change map chart’s zoomStep setting to a lower value (making zoom in slower) or to a bigger value to make map zoom in deeper with each step.

Limiting zoom

As a default behavior, map chart would not let zoom out beyond level 1 and zoom in beyond level 32.

We can change that using minZoomLevel and maxZoomLevel chart settings respectively.

TypeScript

let chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "rotateX",
    wheelY: "zoom",
    minZoomLevel: 0.5,
    maxZoomLevel: 16
  })
);

JavaScript

var chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "rotateX",
    wheelY: "zoom",
    minZoomLevel: 0.5,
    maxZoomLevel: 16

  })
);

Zooming via API

Map chart provides several methods for us to use to perform zoom operations:

Method	Comment
zoomToPoint()	Centers and zooms the map to specific X/Y coordinates in pixels.
zoomToGeoPoint()	Centers and zooms the map to specific latitude/longitude coordinates and zoom level.
zoomIn()	Zooms the map in by zoomStep setting value.
zoomOut()	Zooms the map out by zoomStep setting value.
zoomToDataItem()	Zooms the map to a specific polygon (data item).
zoomToDataItems()	Zooms the map to so all the map polygon data items passed in an array parameter are visible.

The following call will zoom the map to focus on Europe:

TypeScript

chart.zoomToGeoPoint({ longitude: 10, latitude: 52 }, 3.5);

JavaScript

chart.zoomToGeoPoint({ longitude: 10, latitude: 52 }, 3.5);

Zooming to clicked object

To zoom the map to a polygon when it is clicked, set polygon series’ clickZoom setting to true:

TypeScript

let polygonSeries = chart.series.push(
  am5map.MapPolygonSeries.new(root, {
    geoJSON: am5geodata_worldLow,
    clickZoom: true
  })
);

JavaScript

var polygonSeries = chart.series.push(
  am5map.MapPolygonSeries.new(root, {
    geoJSON: am5geodata_worldLow,
    clickZoom: true
  })
);

Clicking the same polygon again, or the map’s background, zooms back to the home position. On a rotating map, such as a globe, the map also turns to bring the polygon to the center.

The polygon zoomed to is set as active, so we can highlight it with an “active” state:

TypeScript

polygonSeries.mapPolygons.template.states.create("active", {
  fill: am5.color(0x297373)
});

JavaScript

polygonSeries.mapPolygons.template.states.create("active", {
  fill: am5.color(0x297373)
});

Note

clickZoom is available since version 5.21.0.

For custom behavior, we can instead add a click event to map polygons, and zoom in on them by using map polygon series’ method zoomToDataItem():

TypeScript

polygonSeries.mapPolygons.template.events.on("click", function(ev) {
  polygonSeries.zoomToDataItem(ev.target.dataItem);
});

JavaScript

polygonSeries.mapPolygons.template.events.on("click", function(ev) {
  polygonSeries.zoomToDataItem(ev.target.dataItem);
});

Open in CodePen

Pre-zooming to polygon(s)

We can combine methods getDataItemById() and zoomToDataItems() to pre-zoom to a group of polygons.

The following code will pre-zoom on Scandinavia:

TypeScript

polygonSeries.events.on("datavalidated", function() {
  const zoomTargets = ["SE", "FI", "NO", "DK"];
  const zoomDataItems = [];
  zoomTargets.forEach(function(id) {
    zoomDataItems.push(polygonSeries.getDataItemById(id));
  });
  polygonSeries.zoomToDataItems(zoomDataItems);
});

JavaScript

polygonSeries.events.on("datavalidated", function() {
  var zoomTargets = ["SE", "FI", "NO", "DK"];
  var zoomDataItems = [];
  zoomTargets.forEach(function(id) {
    zoomDataItems.push(polygonSeries.getDataItemById(id));
  });
  polygonSeries.zoomToDataItems(zoomDataItems);
});

Note

Both methods need to be called when the data on series is ready, hence the use of datavalidated event.

Open in CodePen

Mouse-wheel behavior

Setting behavior

There are two separate settings for mouse wheel behavior: wheelX (controls what happens when wheel is spinned horizontally) and wheelY (what happens when wheel is spinned vertically).

With the following possible values:

Value	Comment
"none"	Do nothing. Map will remain static when dragged in the specific direction.
"rotateX"	Will “rotate” the map horizontally, wrapping around contents like a globe would be rotated.
"rotateY"	Will “rotate” the map vertically, wrapping around contents like a globe would be rotated.
"translateX"	Move contents of the map horizontally without changing appearance.
"translateY"	Move contents of the map vertically without changing appearance.
"zoom"	Zoom the map while centering on the actual position of the mouse cursor.

wheelY is set to "zoom" by default.

TypeScript

let chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "rotateX",
    wheelY: "zoom"
  })
);

JavaScript

var chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "rotateX",
    wheelY: "zoom"
  })
);

Sensitivity

Mouse wheel sensitivity can be adjusted with map chart’s wheelSensitivity setting.

With default at 1, the value can be increased or decreased to make chart zoom in faster or slower, respectively.

TypeScript

let chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "rotateX",
    wheelY: "zoom",
    wheelSensitivity: 0.7
  })
);

JavaScript

var chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "rotateX",
    wheelY: "zoom",
    wheelSensitivity: 0.7
  })
);

Note

Sensitivity settings are ignored when wheelY (or wheelX) is set to "zoom".

Control+scroll

Enabling mouse-wheel behavior will make the map zoom but may disrupt scrolling of the whole page when mouse cursor is over the chart.

The common practice is to enable zoomonly when CTRL key is pressed. To implement that we can disable all wheel behavior by default, and only enable it when CTRL key is down:

TypeScript

var chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "rotateX",
    projection: am5map.geoNaturalEarth1(),
    wheelY: "none"
  })
);

chart.events.on("wheel", function(ev) {
  if (ev.originalEvent.ctrlKey) {
    ev.originalEvent.preventDefault();
    chart.set("wheelY", "zoom");
  }
  else {
    chart.set("wheelY", "none");
  }
});

JavaScript

var chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "rotateX",
    projection: am5map.geoNaturalEarth1(),
    wheelY: "none"
  })
);

chart.events.on("wheel", function(ev) {
  if (ev.originalEvent.ctrlKey) {
    ev.originalEvent.preventDefault();
    chart.set("wheelY", "zoom");
  }
  else {
    chart.set("wheelY", "none");
    overlay.show();
    overlay.setTimeout(function() {
      overlay.hide()
    }, 800);
  }
});

Open in CodePen

We can enhance this behavior with Google-like message over the chart when scroll is used without CTRL key pressed.

TypeScript

// Create curtain + message to show when wheel is used over chart without CTRL
let overlay = root.container.children.push(am5.Container.new(root, {
  width: am5.p100,
  height: am5.p100,
  layer: 100,
  visible: false
}));

let curtain = overlay.children.push(am5.Rectangle.new(root, {
  width: am5.p100,
  height: am5.p100,
  fill: am5.color(0x000000),
  fillOpacity: 0.3
}));

let message = overlay.children.push(am5.Label.new(root, {
  text: "Use CTRL + Scroll to zoom",
  fontSize: 30,
  x: am5.p50,
  y: am5.p50,
  centerX: am5.p50,
  centerY: am5.p50
}));

chart.events.on("wheel", function(ev) {
  // Show overlay when wheel is used over chart
  if (ev.originalEvent.ctrlKey) {
    ev.originalEvent.preventDefault();
    chart.set("wheelY", "zoom");
  }
  else {
    chart.set("wheelY", "none");
    overlay.show();
    overlay.setTimeout(function() {
      overlay.hide()
    }, 800);
  }
});

JavaScript

// Create curtain + message to show when wheel is used over chart without CTRL
var overlay = root.container.children.push(am5.Container.new(root, {
  width: am5.p100,
  height: am5.p100,
  layer: 100,
  visible: false
}));

var curtain = overlay.children.push(am5.Rectangle.new(root, {
  width: am5.p100,
  height: am5.p100,
  fill: am5.color(0x000000),
  fillOpacity: 0.3
}));

var message = overlay.children.push(am5.Label.new(root, {
  text: "Use CTRL + Scroll to zoom",
  fontSize: 30,
  x: am5.p50,
  y: am5.p50,
  centerX: am5.p50,
  centerY: am5.p50
}));

chart.events.on("wheel", function(ev) {
  // Show overlay when wheel is used over chart
  if (ev.originalEvent.ctrlKey) {
    ev.originalEvent.preventDefault();
    chart.set("wheelY", "zoom");
  }
  else {
    chart.set("wheelY", "none");
    overlay.show();
    overlay.setTimeout(function() {
      overlay.hide()
    }, 800);
  }
});

Open in CodePen

Pinch zoom

The map can be pinch-zoomed/panned on multi-touch devices, like phones, tables and touch-screen-enabled computers.

Should we want to disable it, we can use pinchZoom setting:

TypeScript

let chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "rotateX",
    pinchZoom: false
  })
);

JavaScript

var chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "rotateX",
    pinchZoom: false
  })
);

Double-click zoom

Double-clicking will zoom in the map centered on the pointer’s position.

Double-clicking while holding SHIFT key down, will zoom out.

To disable this behavior, set Map chart’s setting doubleClickZoom: false.

TypeScript

let chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "rotateX",
    doubleClickZoom: false
  })
);

JavaScript

var chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "rotateX",
    doubleClickZoom: false
  })
);

Box-selection zoom

To enable zooming by selecting a box on the map, use boxZoom setting (default: "none").

The following boxZoom values are available:

Value	Comment
"none"	Box-zoom is disabled (default).
"drag"	Select by pushing down on the map area and dragging. To use this option, panX and panY should be set to "none".
"shift"	Box-select will be active when SHIFT key is down.
"ctrl"	Box-select will be active when CTRL key is down.
"alt"	Box-select will be active when ALT key is down.

TypeScript

let chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "rotateX",
    boxZoom: "shift"
  })
);

JavaScript

var chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "rotateX",
    boxZoom: "shift"
  })
);

To configure the box rectangle, use Map chart’s boxZoomSelection property which is an instance of Rectangle:

TypeScript

chart.boxZoomSelection.setAll({
  fill: am5.color(0xff0000),
  fillOpacity: 0.2
});

JavaScript

chart.boxZoomSelection.setAll({
  fill: am5.color(0xff0000),
  fillOpacity: 0.2
});

Panning outside viewport

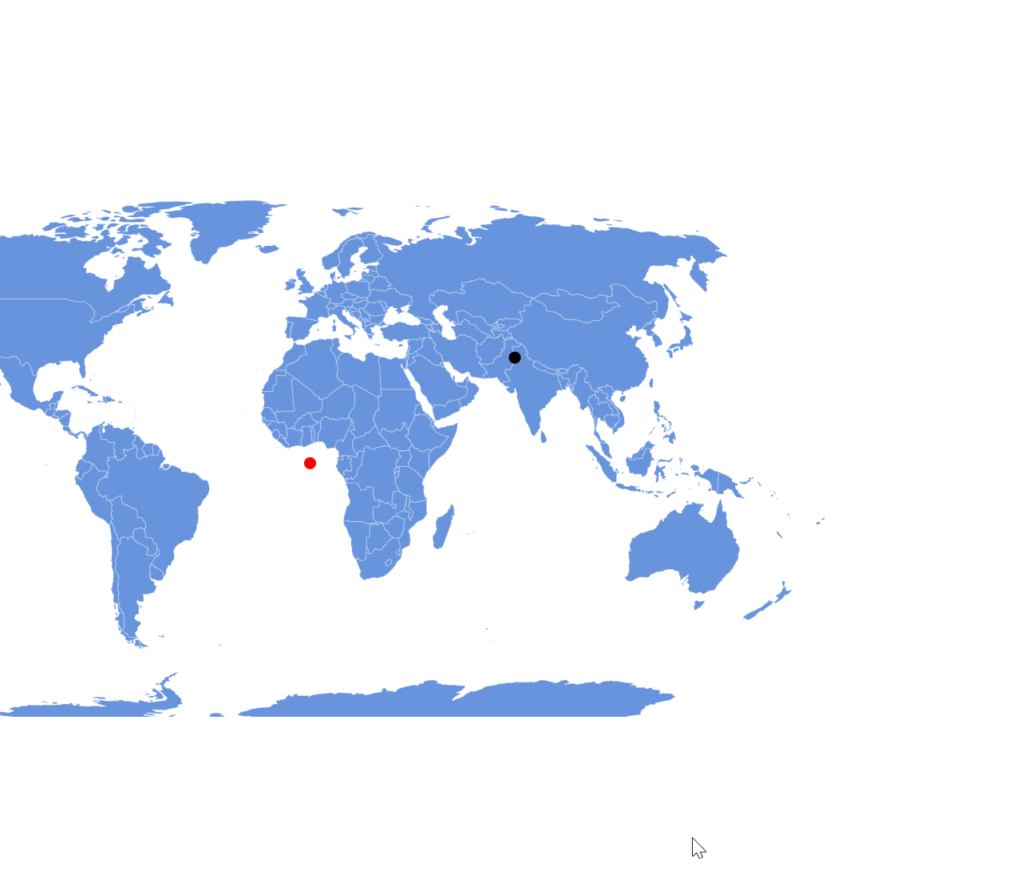

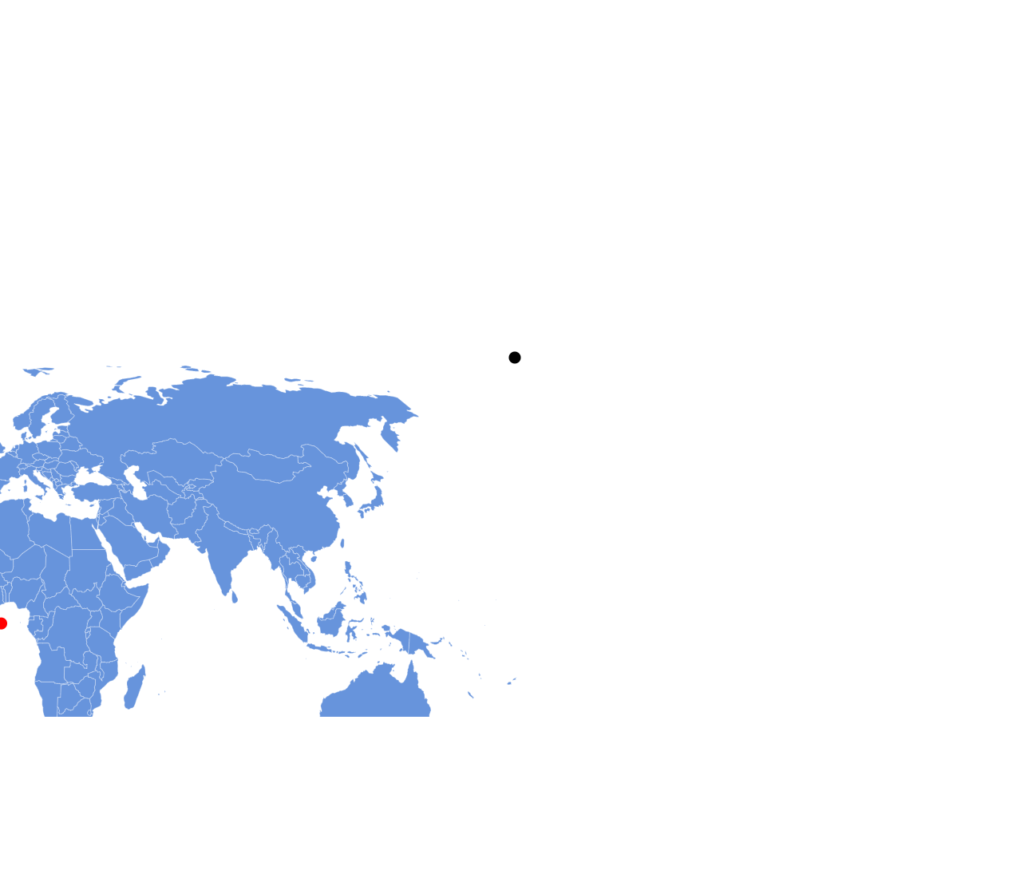

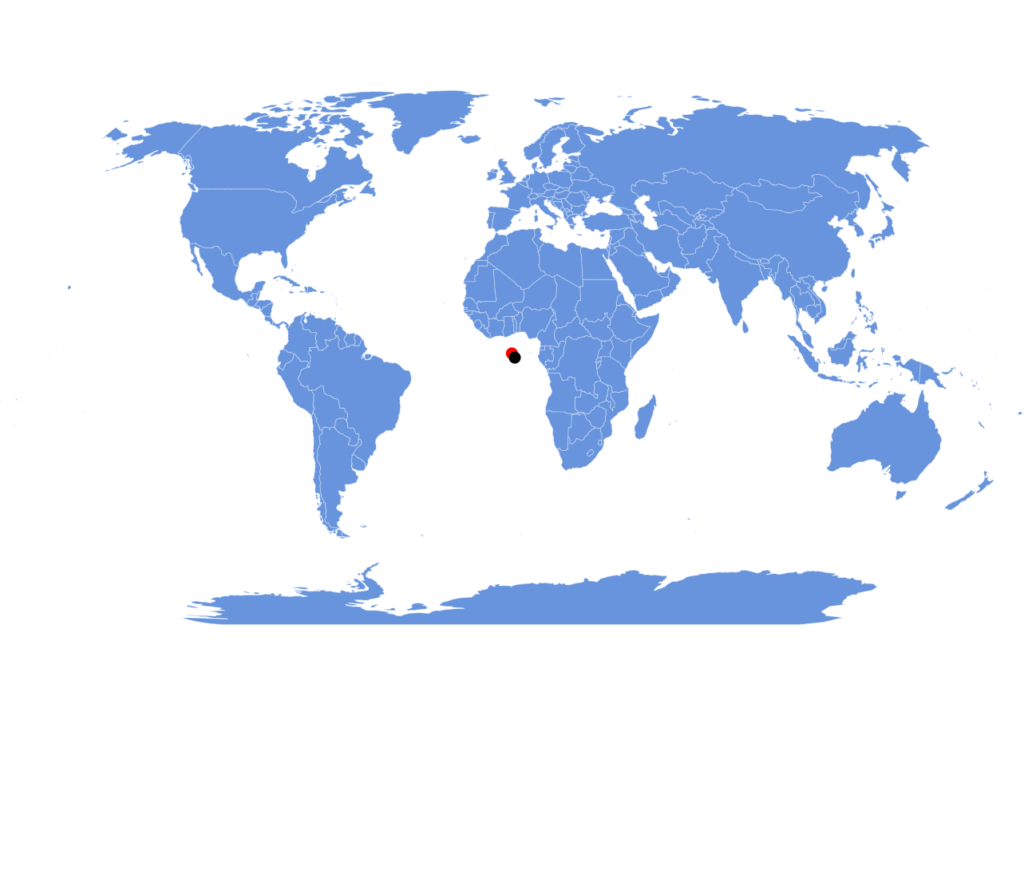

Chart will restrict how far outside its viewport map can be dragged out.

Basically, map chart would not allow map to be dragged in such way, that it would not cover or at least touch center of the chart container.

We can restrict it even further using chart’s setting: maxPanOut.

It accepts numeric values (default: 0.4) that mean relative size to map itself.

E.g. setting maxPanOut to 0.5 will mean that 50% of the map can be outside center of the chart container.

TypeScript

let chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "translateX",
    maxPanOut: 0.5
  })
);

JavaScript

var chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "translateX",
    maxPanOut: 0.5
  })
);

Note

maxPanOut is not relevant if pan settings are set to rotate the map, rather than move it.

Initial position and zoom

Setting

Map chart has two options for setting its initial/default position and zoom level: homeGeoPoint and homeZoomLevel respectively.

We can use those to set those to center around some latitude/longitude coordinates and zoom in automatically on start.

To have the map go to this home position once it loads, set autoHome: true. The following will position and zoom in the map to focus on Europe:

TypeScript

let chart = root.container.children.push(
  am5map.MapChart.new(root, {
    homeZoomLevel: 3.5,
    homeGeoPoint: { longitude: 10, latitude: 52 },
    autoHome: true
  })
);

JavaScript

var chart = root.container.children.push(
  am5map.MapChart.new(root, {
    homeZoomLevel: 3.5,
    homeGeoPoint: { longitude: 10, latitude: 52 },
    autoHome: true
  })
);

The move is animated if the chart has an animation duration set, e.g. by the Animated theme, and instant otherwise. Since it needs no code, it also works in JSON configs.

Note

autoHome is available since version 5.21.0. In earlier versions, call chart.goHome() in polygon series’ datavalidated event instead.

Initial rotation

If you have a rotating map, i.e. panX: "rotateX" and/or panY: "rotateY", you might also want to set initial (home) rotation point using homeRotationX and homeRotationY.

Both accept number values meaning longitude and latitude respectively.

TypeScript

let chart = root.container.children.push(
  am5map.MapChart.new(root, {
    homeRotationX: -74
  })
);

JavaScript

var chart = root.container.children.push(
  am5map.MapChart.new(root, {
    homeRotationX: -74
  })
);

The above code will start the map rotated to NYC in the middle.

Resetting position/level

Via API

Map can be reset to its initial position and zoom level by invoking map chart’s goHome() method:

TypeScript

chart.goHome();

JavaScript

chart.goHome();

Via background click

If polygon series has clickZoom enabled, clicking the background already zooms the map out.

Otherwise, we can add click event to the chart’s background and invoke goHome() method in it to zoom out the chart when user clicks on background (water):

TypeScript

chart.chartContainer.get("background").events.on("click", function() {
  chart.goHome();
});

JavaScript

chart.chartContainer.get("background").events.on("click", function() {
  chart.goHome();
});

Disabling zoom and pan

To completely disable all zoom and pan of the map, we need to set panX, panY, wheelX, and wheelY to "none", as well as pinchZoom to false:

TypeScript

var chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "none",
    panY: "none",
    wheelX: "none",
    wheelY: "none",
    pinchZoom: false
  })
);

JavaScript

var chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "none",
    panY: "none",
    wheelX: "none",
    wheelY: "none",
    pinchZoom: false
  })
);

Zoom control

Adding zoom control

Map chart supports built-in control that adds zooming chart via handy buttons.

To add it, simply instantiate a ZoomControl and set it to map chart’s zoomControl setting.

TypeScript

chart.set("zoomControl", am5map.ZoomControl.new(root, {}));

JavaScript

chart.set("zoomControl", am5map.ZoomControl.new(root, {}));

Configuring buttons

Zoom control has two properties that hold button instances: minusButton and plusButton.

Both are elements of type Button.

Home button

While not enabled by default, zoom control has a third button in it - Home - which when pressed will reset zoom/position of the map.

Home button is hidden by default. To enable it, set visible: true on zoom control’s homeButton property:

TypeScript

let zoomControl = chart.set("zoomControl", am5map.ZoomControl.new(root, {}));
zoomControl.homeButton.set("visible", true);

JavaScript

var zoomControl = chart.set("zoomControl", am5map.ZoomControl.new(root, {}));
zoomControl.homeButton.set("visible", true);

Positioning

The zoom control is placed in the right-bottom corner by default.

Its position is determined by 4 settings: x, centerX, y, and centerY.

Defaults look like this:

{
  x: am5.p100,
  centerX: am5.p100,
  y: am5.p100,
  centerY: am5.p100,
};

x and centerX control control’s horizontal position, and its horizontal “center” respectively.

Similarly with “y” settings.

If we’d like to move the control to top-right, we could just override its “y” settings:

TypeScript

chart.set("zoomControl", am5map.ZoomControl.new(root, {
  y: am5.p0,
  centerY: am5.p0
}));

JavaScript

chart.set("zoomControl", am5map.ZoomControl.new(root, {
  y: am5.p0,
  centerY: am5.p0
}));

To move to upper-left, we’d need to override all four of the settings:

TypeScript

chart.set("zoomControl", am5map.ZoomControl.new(root, {
  x: am5.p0,
  centerX: am5.p0,
  y: am5.p0,
  centerY: am5.p0
}));

JavaScript

chart.set("zoomControl", am5map.ZoomControl.new(root, {
  x: am5.p0,
  centerX: am5.p0,
  y: am5.p0,
  centerY: am5.p0
}));

Related tutorials

• Rotate and zoom the globe to a clicked country (demo)
• Get points within current viewport of a MapChart (demo)
