Comparison control

Comparison control can be added to stock toolbar, and is used to interactively add additional series to the Stock chart, so that they can be compared to main series.

Adding

Section titled “Adding”

Like any other control, it should be instantiated using new() syntax, and pushed into toolbar’s controls list:

// Add comparison control
let comparisonControl = am5stock.ComparisonControl.new(root, {
  stockChart: stockChart,
  items: []
});


// Add toolbar
let toolbar = am5stock.StockToolbar.new(root, {
  container: document.getElementById("chartcontrols"),
  stockChart: stockChart,
  controls: [
    comparisonControl
  ]
});

This will add a control, but it won’t be useful because it doesn’t have any items to choose from, nor events to create compared series in.

List items

Section titled “List items”

There are two ways to populate the list with: providing static item array and/or search callbacks.

Static item list

Section titled “Static item list”

To provide a list of items to choose from, we can use control’s items setting.

It accepts an array of objects like this:

{
  label: "Apple",
  subLabel: "AAPL",
  id: "AAPL"
}

The label and id are required, whereas subLabel is optional.

Let’s try and add a couple of items:

// Add comparison control
let comparisonControl = am5stock.ComparisonControl.new(root, {
  stockChart: stockChart,
  items: [
    { label: "Apple", subLabel: "AAPL", id: "AAPL" },
    { label: "Tesla", subLabel: "TSLA", id: "TSLA" },
  ]
});


// Add toolbar
let toolbar = am5stock.StockToolbar.new(root, {
  container: document.getElementById("chartcontrols"),
  stockChart: stockChart,
  controls: [
    comparisonControl
  ]
});

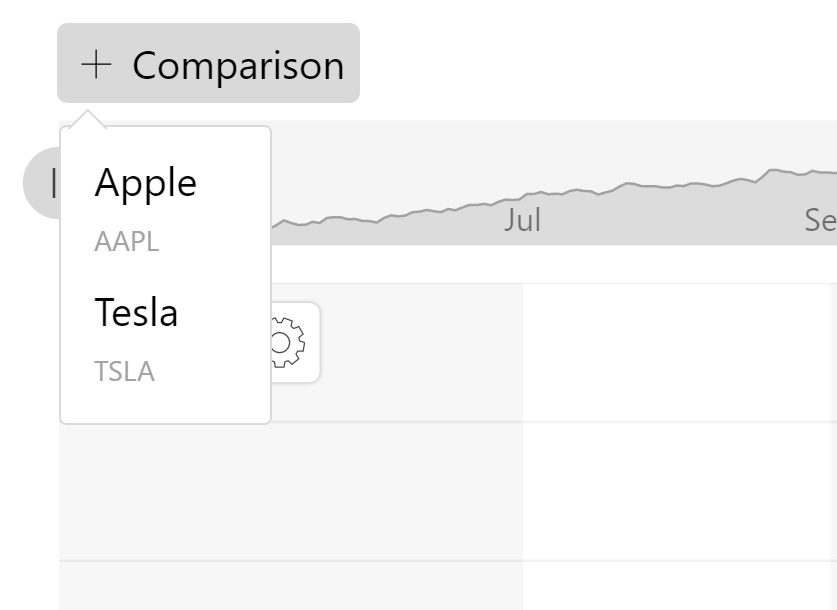

Now, when we click the control, we’ll get two items to choose from:

Section titled “Enabling search”

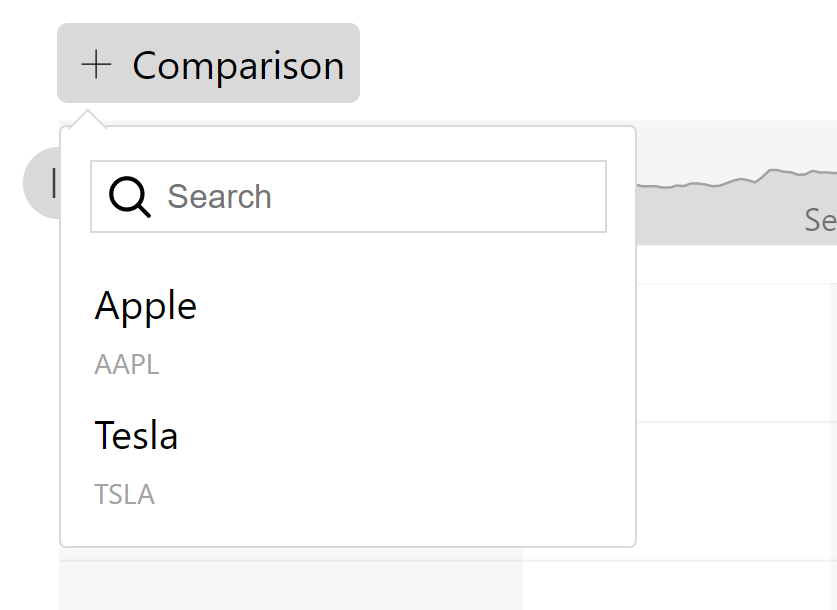

If we would like out list to be searchable, we need to enable it by setting searchable: true in control’s settings:

// Add comparison control
let comparisonControl = am5stock.ComparisonControl.new(root, {
  stockChart: stockChart,
 searchable: true,
  items: [
    { label: "Apple", subLabel: "AAPL", id: "AAPL" },
    { label: "Tesla", subLabel: "TSLA", id: "TSLA" },
  ]
});


// Add toolbar
let toolbar = am5stock.StockToolbar.new(root, {
  container: document.getElementById("chartcontrols"),
  stockChart: stockChart,
  controls: [
    comparisonControl
  ]
});

Dynamic search results

Section titled “Dynamic search results”

We can also hook up a custom function, that would provide dynamic item list based on what user is typing into the search box of the control.

For that we have a setting searchCallback which should be set to a function that accepts query string as a parameter, and returns an item array or a Promise.

// Add comparison control
let comparisonControl = am5stock.ComparisonControl.new(root, {
  stockChart: stockChart,
  searchable: true,
  searchCallback: function(query) {
    // ...
  }
});


// Add toolbar
let toolbar = am5stock.StockToolbar.new(root, {
  container: document.getElementById("chartcontrols"),
  stockChart: stockChart,
  controls: [
    comparisonControl
  ]
});

The reason why the callback would return a Promise is that it would allow search results to be loaded asynchronously, such as ones loaded via AJAX.

Adding series

Section titled “Adding series”

After comparison item is selected, we need to actually create a series for it, configure and load data for it, then provide it to the chart using addComparingSeries() method.

To catch the moment item is selected, we’ll use comparison control’s selected event.

comparisonControl.events.on("selected", function(ev) {
  let item = ev.item;
  let series = am5xy.LineSeries.new(root, {
    name: item.subLabel,
    valueYField: "Close",
    calculateAggregates: true,
    valueXField: "Date",
    xAxis: dateAxis,
    yAxis: valueAxis,
    legendValueText: "{valueY.formatNumber('#.00')}"
  });
  let comparingSeries = stockChart.addComparingSeries(series);
  comparingSeries.data.set(newData);
});

Asynchronous data

Section titled “Asynchronous data”

We can load data for the loaded series asynchronously, too.

comparisonControl.events.on("selected", function(ev) {
  let item = ev.item;
  let series = am5xy.LineSeries.new(root, {
    name: item.subLabel,
    valueYField: "Close",
    calculateAggregates: true,
    valueXField: "Date",
    xAxis: dateAxis,
    yAxis: valueAxis,
    legendValueText: "{valueY.formatNumber('#.00')}"
  });
  let comparingSeries = stockChart.addComparingSeries(series);
  loadData(item.subLabel, [comparingSeries]);
});


function loadData(ticker, series) {


  // Load external data
  // https://www.amcharts.com/docs/v5/charts/xy-chart/series/#Setting_data
  am5.net.load("https://mywebserver.com/data/" + ticker + ".csv").then(function(result) {


    // Parse loaded data
    let data = am5.CSVParser.parse(result.response, {
      delimiter: ",",
      skipEmpty: true,
      useColumnNames: true
    });


    // Process data (convert dates and values)
    let processor = am5.DataProcessor.new(root, {
      dateFields: ["Date"],
      dateFormat: "yyyy-MM-dd",
      numericFields: ["Open", "High", "Low", "Close", "Adj Close", "Volume"]
    });
    processor.processMany(data);


    // Set data
    am5.array.each(series, function(item) {
      item.data.setAll(data);
    });
  });


}

Percent scale

Section titled “Percent scale”

By default, adding a comparison series will switch the chart into a “percent mode”.

For more information, check out “Percent mode” tutorial.

Examples

Section titled “Examples”

Static list

Section titled “Static list”
Open in CodePen

Dynamic list

Section titled “Dynamic list”
Open in CodePen
