Radar series

While radar series resemble their equivalents in XY chart in how they are configured, there are some differences. This tutorial will address those.

Connecting ends

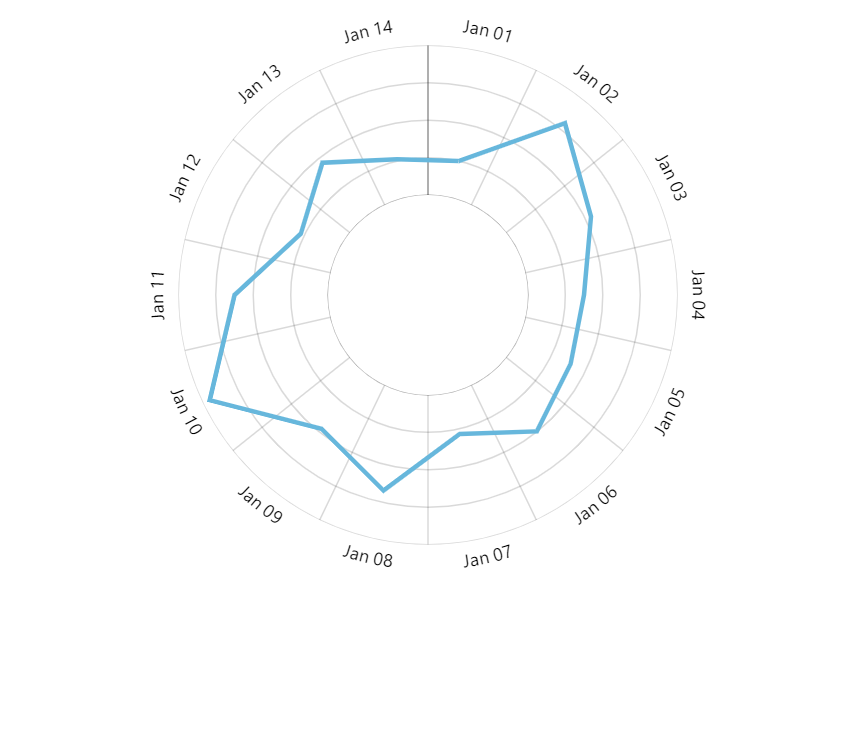

Line-based series like RadarLineSeries and SmoothedRadarLineSeries will automatically connect their first and last data points to complete the circle.

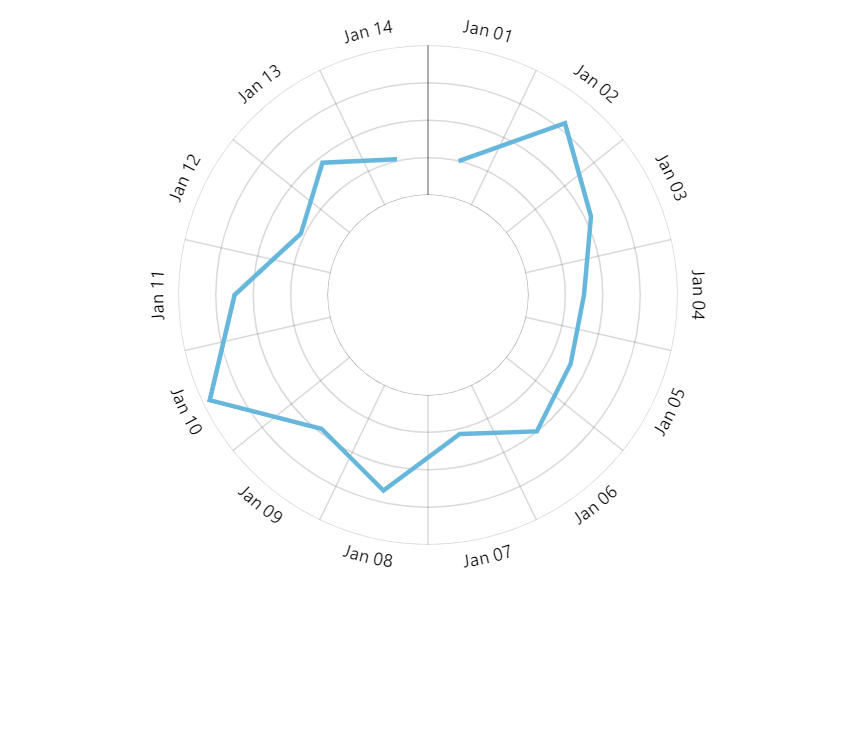

We can disable this behavior using series’ connectEnds setting:

TypeScript

let series = chart.series.push(
  am5radar.RadarLineSeries.new(root, {
    xAxis: xAxis,
    yAxis: yAxis,
    valueYField: "value",
    valueXField: "date",
    connectEnds: false
  })
);

JavaScript

var series = chart.series.push(
  am5radar.RadarLineSeries.new(root, {
    xAxis: xAxis,
    yAxis: yAxis,
    valueYField: "value",
    valueXField: "date",
    connectEnds: false
  })
);

Open in CodePen
