Containers

A container is an element that can have child elements as well as a background. Most of the elements on a chart are containers. The chart itself is also a container.

Root container

When we create a root element it comes with a container of itself.

Any top-level element - e.g. chart - will need to go into that root container as a child.

Root container is accessible by root.container.

Children

Adding

To add a child to a container, all we need to do is push() it into children list.

Here’s how we’d add a footnote label to a chart:

TypeScript

let footnote = chart.children.push(am5.Label.new(root, {
  text: "Copyright 2021 amCharts"
});

JavaScript

var footnote = chart.children.push(am5.Label.new(root, {
  text: "Copyright 2021 amCharts"
});

Ordering

Using push() method will add a child at the end of the child list. If container has a layout set it will be drawn last.

To put it in the first position, we can use unshift() instead.

Or, if we want to be super precise, we can use insertIndex() which accepts first parameter an index.

Using insertIndex(0, ...) is equovalent to unshift(...).

Layout

Setting layout

Container’s layout setting affects how child elements in it are arranged.

It can be either vertical, horizontal, grid, or none.

A layout is represented by an object, accessible visa root properties.

Layout instance	Comment

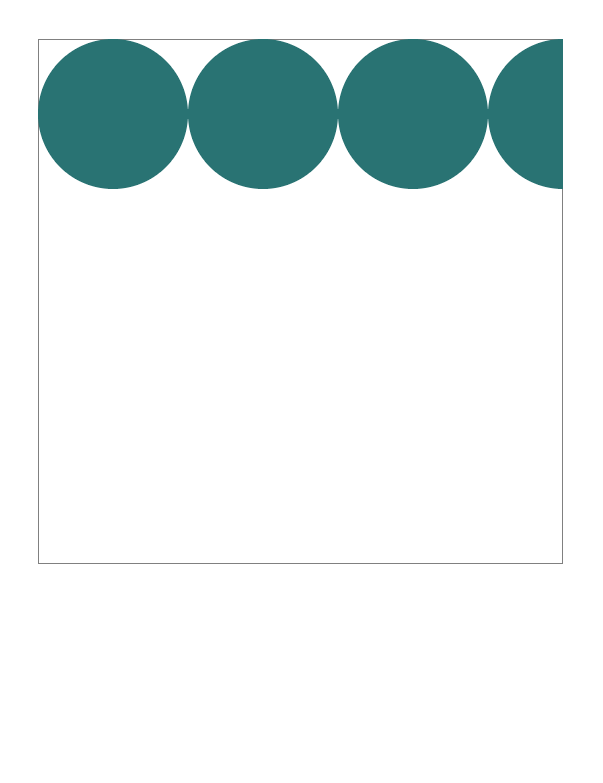

root.horizontalLayout	Child elements are displayed in a row.

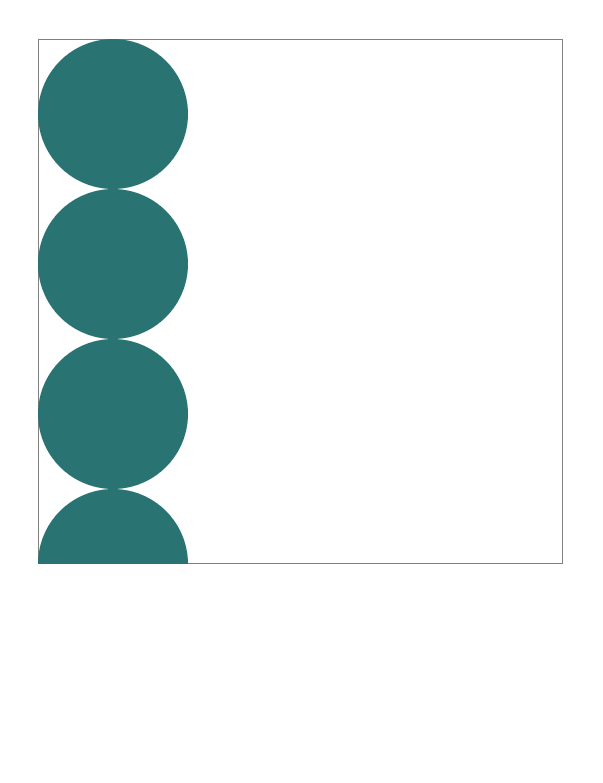

root.verticalLayout	Child elements are displayed stacked vertically.

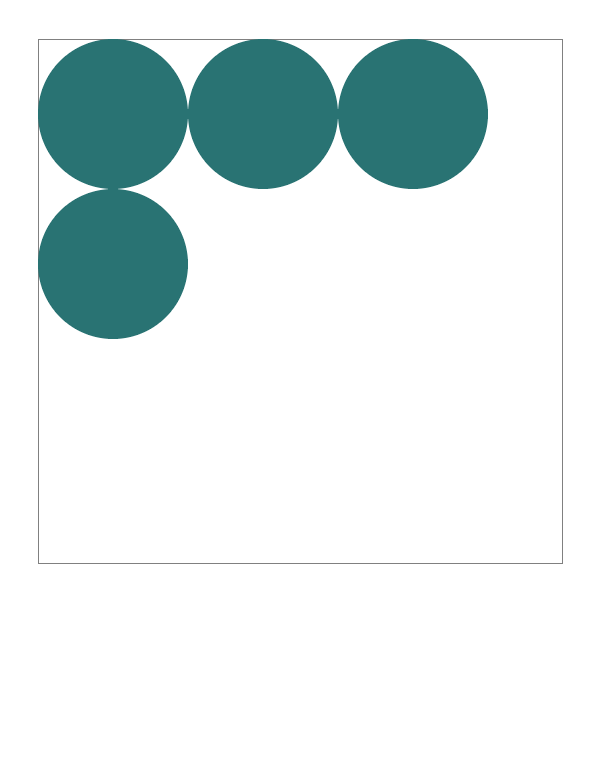

root.gridLayout	Child elements are displayed in a grid of columns, and can form multiple rows.

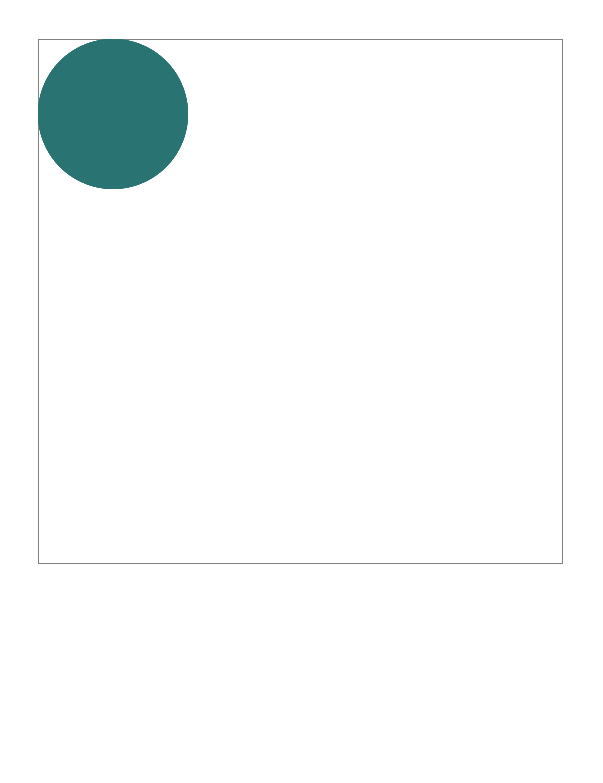

Not set	Child elements are placed at whatever x and/or y setting are set for them, or at upper-left corner if not set.

Setting layout might affect the look of the chart setup, such as where chart’s legend is placed.

TypeScript

let chart = root.container.children.push(
  am5percent.PieChart.new(root, {
    layout: root.verticalLayout
  })
);

JavaScript

var chart = root.container.children.push(
  am5percent.PieChart.new(root, {
    layout: root.verticalLayout
  })
);

Open in CodePen

Grid

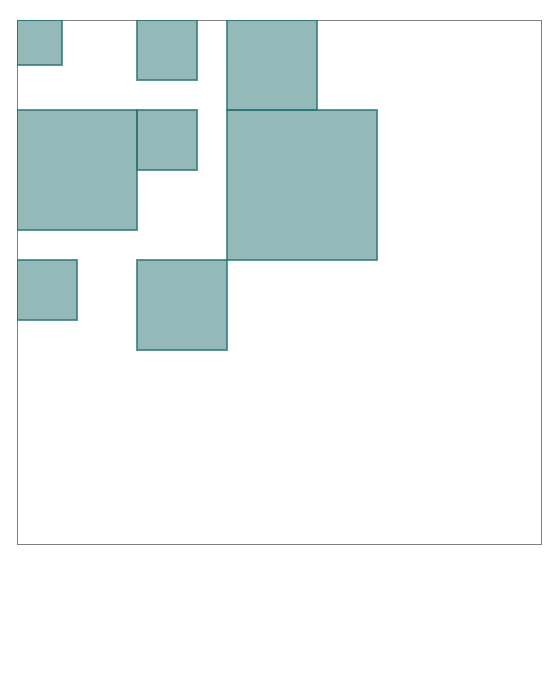

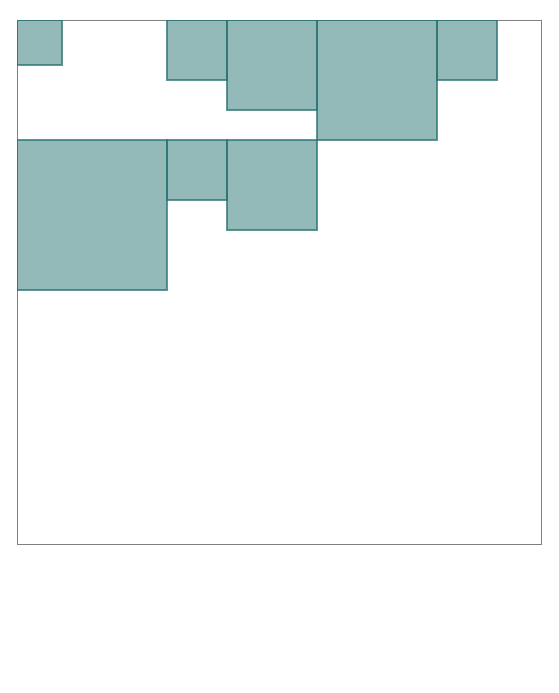

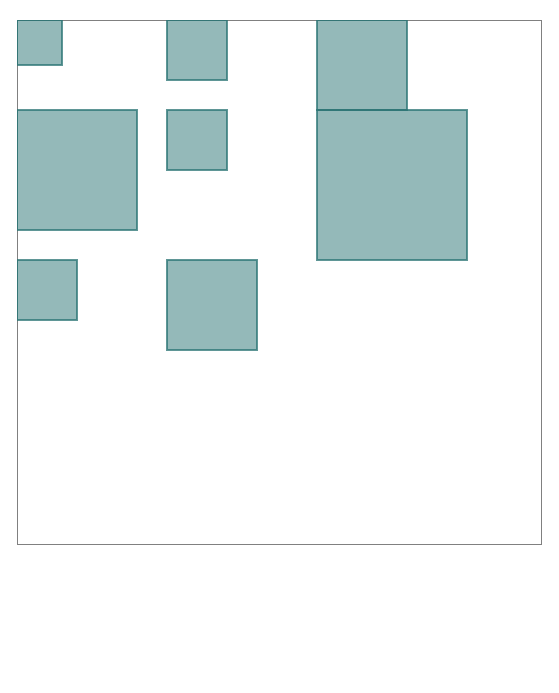

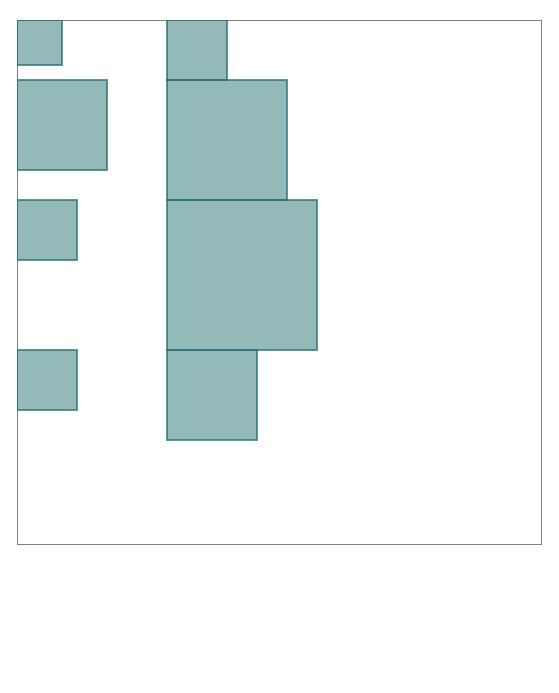

Gird layout is special, because it accepts some configuration options.

Those are:

• maxColumns - maximum number of columns to allow in the grid.
• fixedWidthGrid - if set to true will make all columns equal in width, as opposed to best fit.

Since we don’t want to modify a global instance of the grid layout (it may be used by other chart elements), we will need to create a unique instance of GridLayout specifically for the target container:

TypeScript

let legend = chart.children.push(am5.Legend.new(root, {
    centerX: am5.percent(50),
    x: am5.percent(50),
    layout: am5.GridLayout.new(root, {
    maxColumns: 3,
    fixedWidthGrid: true
  })
}));

JavaScript

var legend = chart.children.push(am5.Legend.new(root, {
    centerX: am5.percent(50),
    x: am5.percent(50),
    layout: am5.GridLayout.new(root, {
    maxColumns: 3,
    fixedWidthGrid: true
  })
}));

Open in CodePen

Background

Standalone elements

Containers do not have any background by default. To add one, we will need to container’s background setting to an instance of a Rectangle (or RoundedRectangle).

TypeScript

let chart = root.container.children.push(
  am5percent.PieChart.new(root, {
    background: am5.Rectangle.new(root, {
      fill: am5.color(0xff5599),
      fillOpacity: 0.2
    })
  })
);

JavaScript

var chart = root.container.children.push(
  am5percent.PieChart.new(root, {
    background: am5.Rectangle.new(root, {
      fill: am5.color(0xff5599),
      fillOpacity: 0.2
    })
  })
);

Templates

Objects like backgrounds will not be copied over to new elements from a template, so we will need to set them up using setup() method of the template:

TypeScript

yAxis.get("renderer").labels.template.setup = function(target) {
  target.set("background", am5.Rectangle.new(root, {
    fill: am5.color(0xff0000)
  }))
}

JavaScript

yAxis.get("renderer").labels.template.setup = function(target) {
  target.set("background", am5.Rectangle.new(root, {
    fill: am5.color(0xff0000)
  }))
}

Important

The template.setup needs to be set before any data is set on the the series. More info here.

Masks

Container contents can be constricted to any shape using its mask setting.

Mask can be any element of type Graphics, e.g. a Circle, Rectangle, or any custom shape.

TypeScript

chart.set("mask", am5.Star.new(root, {
  radius: 200,
  innerRadius: 150,
  spikes: 20,
  fill: am5.color(0x000000),
  x: am5.percent(50),
  y: am5.percent(50)
}));

JavaScript

chart.set("mask", am5.Star.new(root, {
  radius: 200,
  innerRadius: 150,
  spikes: 20,
  fill: am5.color(0x000000),
  x: am5.percent(50),
  y: am5.percent(50)
}));

The above will display a star-shaped pie chart:

Open in CodePen

Scrollbar

If container’s contents do not fit into its height, we can enable scrolling by setting its verticalScrollbar instance of a Scrollbar:

TypeScript

var legend = chart.children.push(am5.Legend.new(root, {
  centerX: am5.percent(50),
  x: am5.percent(50),
  layout: root.verticalLayout,
  height: am5.percent(100),
  verticalScrollbar: am5.Scrollbar.new(root, {
    orientation: "vertical"
  })
}));

JavaScript

var legend = chart.children.push(am5.Legend.new(root, {
  centerX: am5.percent(50),
  x: am5.percent(50),
  layout: root.verticalLayout,
  height: am5.percent(100),
  verticalScrollbar: am5.Scrollbar.new(root, {
    orientation: "vertical"
  })
}));

Note

Please note that height needs to be set for this to work properly.

Open in CodePen

Zoomable container

There’s also a special version of a Container: ZoomableContainer.

We can use it to make any chart content zoomable.

Creating a zoomable container

ZoomableContainer is similar to a regular Container with a couple of important restrictions:

• It needs to be a top-most child of the Root container.
• Zoomable contents must go into its contents.children rather than children.

TypeScript

let zoomableContainer = root.container.children.push(
  am5.ZoomableContainer.new(root, {
    width: am5.p100,
    height: am5.p100
  })
);

let series = zoomableContainer.contents.children.push(am5hierarchy.ForceDirected.new(root, {
  valueField: "value",
  categoryField: "name",
  childDataField: "children",
  idField: "name"
}));

JavaScript

var zoomableContainer = root.container.children.push(
  am5.ZoomableContainer.new(root, {
    width: am5.p100,
    height: am5.p100
  })
);

var series = zoomableContainer.contents.children.push(am5hierarchy.ForceDirected.new(root, {
  valueField: "value",
  categoryField: "name",
  childDataField: "children",
  idField: "name"
}));

Zoom functionality

Zoom in a zoomable container can be can be controlled via mouse wheel, pinch-zoom, API functions, or a zoom tools.

Both wheel and pinch-zoom are enabled by default.

To disable them, we can use wheelable and pinchZoom settings respectively:

TypeScript

let zoomableContainer = root.container.children.push(
  am5.ZoomableContainer.new(root, {
    width: am5.p100,
    height: am5.p100,
    wheelable: false,
    pinchZoom: false
  })
);

JavaScript

var zoomableContainer = root.container.children.push(
  am5.ZoomableContainer.new(root, {
    width: am5.p100,
    height: am5.p100,
    wheelable: false,
    pinchZoom: false
  })
);

Zoom tools

To add zoom tools, we can use a bundled ZoomTools class:

TypeScript

let zoomTools = zoomableContainer.children.push(am5.ZoomTools.new(root, {
  target: zoomableContainer
}));

JavaScript

var zoomTools = zoomableContainer.children.push(am5.ZoomTools.new(root, {
  target: zoomableContainer
}));

Zoom API

Finally, zoomable container provides some methods to control zoom level and position:

Method	Comment
zoomToPoint(point, zoomLevel)	Pans to specific X/Y point and zooms to specific level.
zoomIn()	Zooms in the container.
zoomOut()	Zooms out the container.
goHome()	Resets containers position and zoom level to initial.

Example

Open in CodePen
