Panels

Panels are instances of StockPanel class (which in turn extends an XYChart) comprising the Stock chart. Zoom state of their X axes as well as cursor are automatically synced by the stock chart itself.

Adding panels

To add a panel, we need to:

• Create an instance of an StockPanel.
• Configure it fully (remember it’s an XYChart so we can use any configuration options available to it), including axes and series that will go into it.
• Push it into stock chart’s panels list.

The following code will add a single panel. Let’s call it a “main chart”.

TypeScript

let mainPanel = stockChart.panels.push(am5stock.StockPanel.new(root, {
  wheelY: "zoomX",
  panX: true,
  panY: true
}));

JavaScript

var mainPanel = stockChart.panels.push(am5stock.StockPanel.new(root, {
  wheelY: "zoomX",
  panX: true,
  panY: true
}));

More info

For a complete guide on how to configure an a panel (XY chart), please refer to “XY chart” tutorial section.

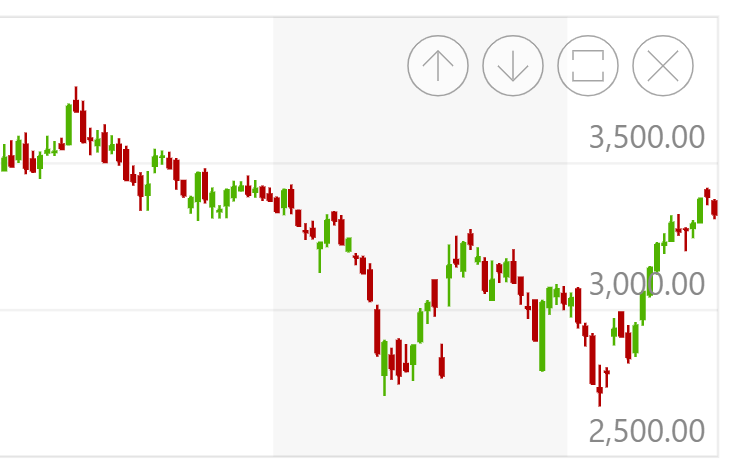

Panel controls

If the stock chart has more than one panel, a special set of controls is enabled on each panel.

Controls are buttons that allow:

• Moving panel up and down.
• Expanding panel to full chart size.
• Closing panel.

Panel controls is an object of type PanelControls, and is accessible via panel’s panelControls property.

Disabling panel controls

To disable panel controls, simply set its forceHidden: true:

TypeScript

mainPanel.panelControls.set("forceHidden");

JavaScript

mainPanel.panelControls.set("forceHidden");

Disabling individual buttons

Individual button elements from the controls are available via the following properties of the PanelControls instance:

• upButton
• downButton
• expandButton
• closeButton

To selectively disable them, use their forceHidden setting:

TypeScript

mainPanel.panelControls.expandButton.set("forceHidden");
mainPanel.panelControls.closeButton.set("forceHidden");

JavaScript

mainPanel.panelControls.expandButton.set("forceHidden");
mainPanel.panelControls.closeButton.set("forceHidden");

Note

Close button will be automatically disabled for the panel that holds the main series, if there’s one set.

Disabling panel resizer

The easiest way to disabling resizing of panels is via custom theme:

TypeScript

let myTheme = am5.Theme.new(root);

myTheme.rule("Rectangle", ["panelresizer"]).setAll({
  forceInactive: true
});

root.setThemes([
  am5themes_Animated.new(root),
  myTheme
]);

JavaScript

var myTheme = am5.Theme.new(root);

myTheme.rule("Rectangle", ["panelresizer"]).setAll({
  forceInactive: true
});

root.setThemes([
  am5themes_Animated.new(root),
  myTheme
]);

Order

Initial order

We can push as many StockPanel instances into stock chart’s panels list as we need to.

They will appear in the same order as the were pushed: the first panel will be displayed on top, with the rest following.

Reordering via UI

Panels can also be re-ordered by user via panel controls, described earlier in this tutorial.

Reordering via API

Each panel instance offers two methods, that allow changing its position: moveUp() and moveDown().

Their functionality is self-explanatory.

Sizing

Via settings

Normally, all panels will divide the vertical space between them equally.

We can modify that manually, using panel/chart’s height setting.

It accepts both absolute pixel as well as percent values.

TypeScript

let mainPanel = stockChart.panels.push(am5stock.StockPanel.new(root, {
  wheelY: "zoomX",
  panX: true,
  panY: true
}));

let volumePanel = stockChart.panels.push(am5stock.StockPanel.new(root, {
  wheelY: "zoomX",
  panX: true,
  panY: true,
  height: am5.percent(30)
}));

JavaScript

var mainPanel = stockChart.panels.push(am5stock.StockPanel.new(root, {
  wheelY: "zoomX",
  panX: true,
  panY: true
}));

var volumePanel = stockChart.panels.push(am5stock.StockPanel.new(root, {
  wheelY: "zoomX",
  panX: true,
  panY: true,
  height: am5.percent(30)
}));

In the above example, only “volumePanel” has its height set to 30%.

That means that it will take 30% of the height of the stock chart, with “mainPanel” taking up the rest 70% even if it does not have height explicitly set.

Via user interface

The panels are resizable out-of-the-box.

User can drag space between panels to resize them manually.

Syncing cursors

Cursors between panels will be automatically synced across all panels.

To disable it, use this line of code for each panel after it has been added to the chart:

TypeScript

panel.removePrivate("otherCharts");

JavaScript

panel.removePrivate("otherCharts");

Removing panels

Via API

To remove a panel programmatically, all we need to do is call panel’s close() method:

TypeScript

volumePanel.close();

JavaScript

volumePanel.close();

Note

Closing a panel will automatically dispose it. If we want to keep the instance (perhaps if we are intending to add it back to the the chart) we need to disable auto-disposing:

TypeScript

stockChart.panels.autoDispose = false;

JavaScript

stockChart.panels.autoDispose = false;

Via controls

If panel/chart has panel controls added to it, it can be removed by the user by pressing the “close” button in control bar.

Events

Panels have a few events you can tap into:

Event	Kicks in when
closed	Panel is closed (removed).
collapsed	Panel returns from its expanded state.
expanded	Panel is expanded.
moved	Panel is moved up and down using its controls or API.

TypeScript

volumePanel.events.on("closed", function(ev) {
  console.log("Buh bye, Volume Panel");
});

JavaScript

volumePanel.events.on("closed", function(ev) {
  console.log("Buh bye, Volume Panel");
});

Example

Below is a working multi-panel stock chart:
