Chord diagram

Flow chart

Section titled “Flow chart”

A chord diagram is a flow chart. For generic flow chart related information, please visit “Flow charts” tutorial.

Types of chord

Section titled “Types of chord”

There are three main types of chord series: regular, directed, and non-ribbon.

The type of the series not only affects how links look, but also how value of the node is calculated, which in turn affects its width.

Regular series

Directed series

Non-ribbon series

Chord

ChordDirected

ChordNonRibbon

Node size depends on a sum of all outgoing links.

Node size depends on a sum of all incoming and outgoing links.

Node size is fixed regardless of actual values.

Regular series

Section titled “Regular series”

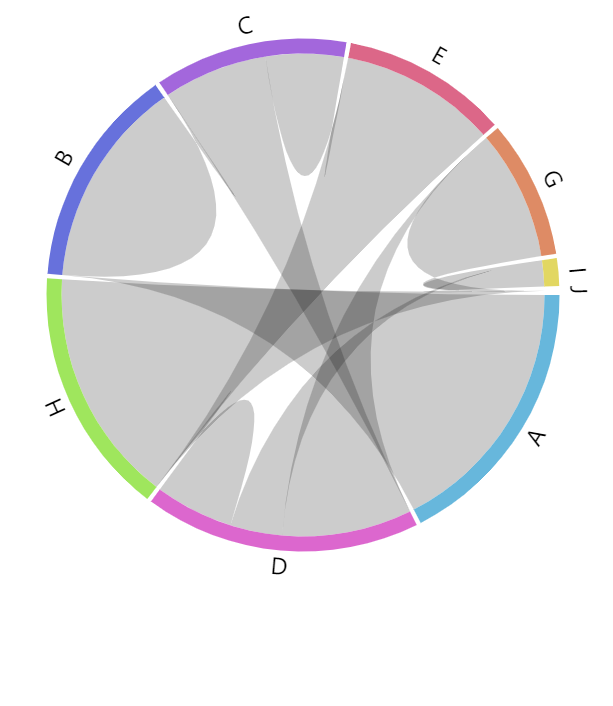

Regular chord series is created using Chord class.

It sizes nodes based on a sum of values of all outgoing links.

let series = root.container.children.push(
  am5flow.Chord.new(root, {
    sourceIdField: "from",
    targetIdField: "to",
    valueField: "value"
  })
);
Open in CodePen

There are no special regular-chord-only settings.

Directed series

Section titled “Directed series”

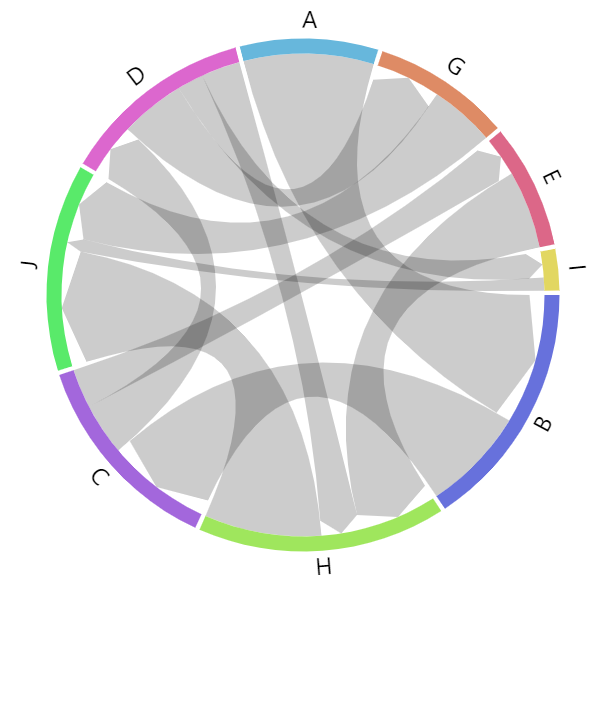

Chord directed sizes its nodes base on sum of both the outgoing and incoming links.

It also indicates the direction of the link by adding an arrowhead at the target end.

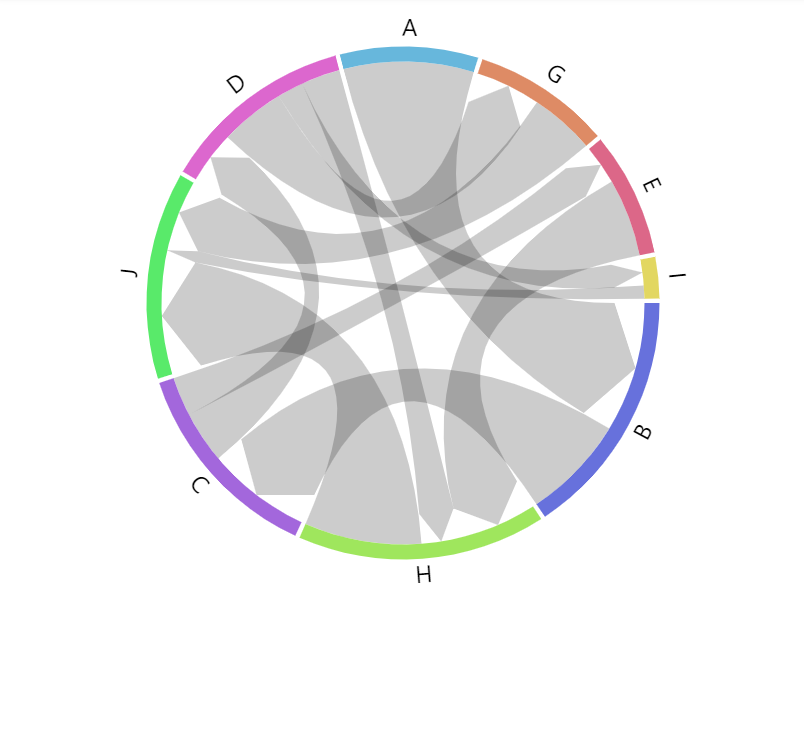

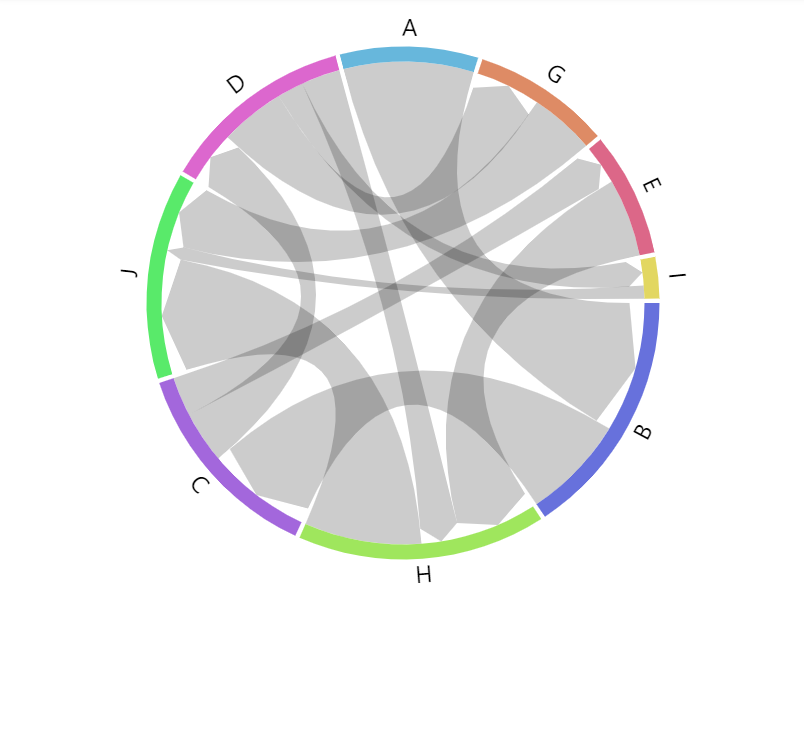

The length of the arrowhead is 10 pixels by default. We can change it by setting series’ linkHeadRadius setting.

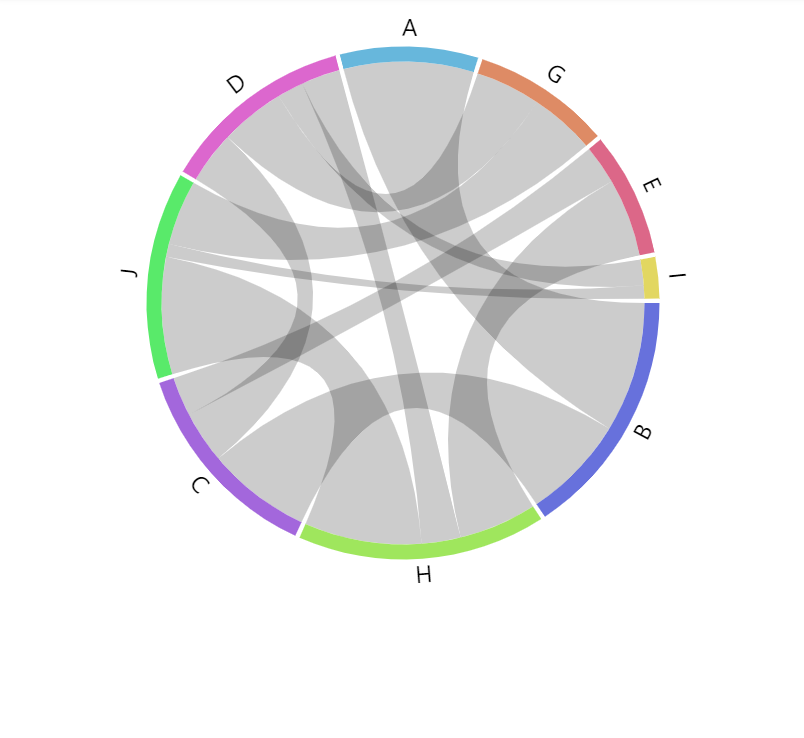

We can also disable arrowhead altogether by setting linkHeadRadius to null:

let series = root.container.children.push(
  am5flow.ChordDirected.new(root, {
    sourceIdField: "from",
    targetIdField: "to",
    valueField: "value",
    linkHeadRadius: null
  })
);

Open in CodePen

Non-ribbon series

Section titled “Non-ribbon series”

Non-ribbon chord series does not take any value into account when sizing its nodes.

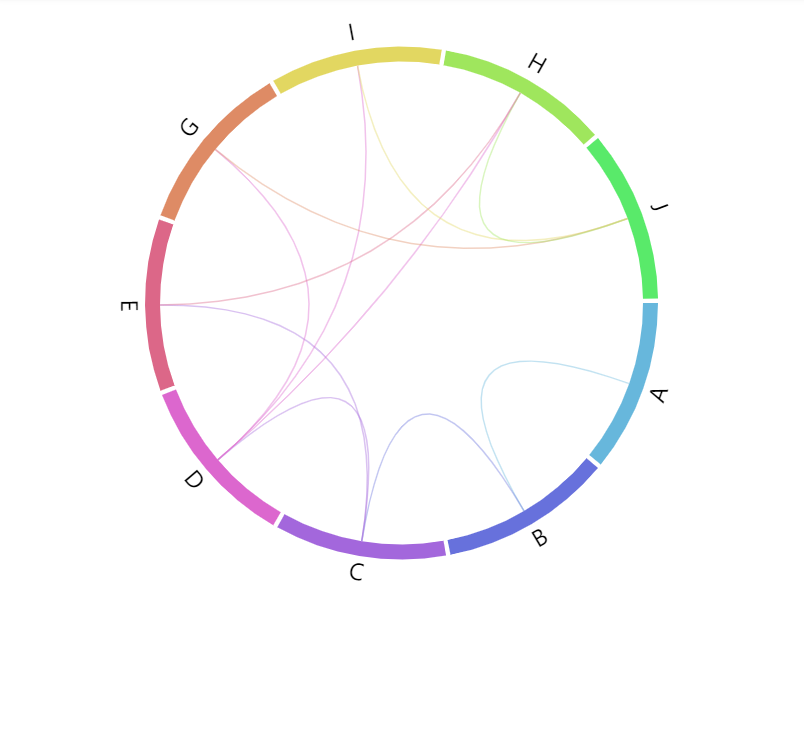

It also displays links as thin lines, that are curved from source to target node.

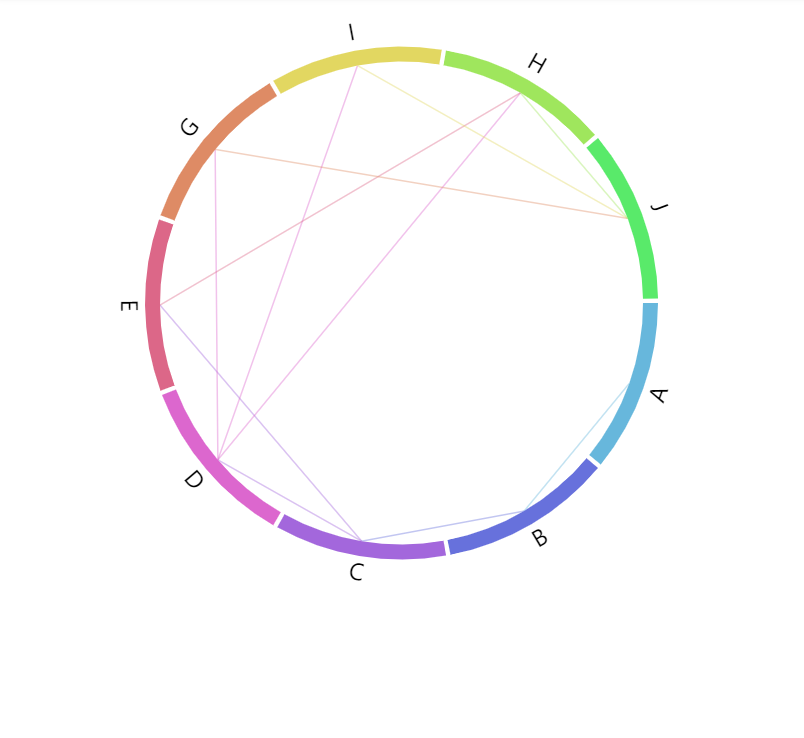

We can make them display as straight lines by setting series linkType setting to "line":

let series = root.container.children.push(
  am5flow.ChordNonRibbon.new(root, {
    sourceIdField: "from",
    targetIdField: "to",
    valueField: "value",
    linkType: "line"
  })
);

Open in CodePen

Nodes

Section titled “Nodes”

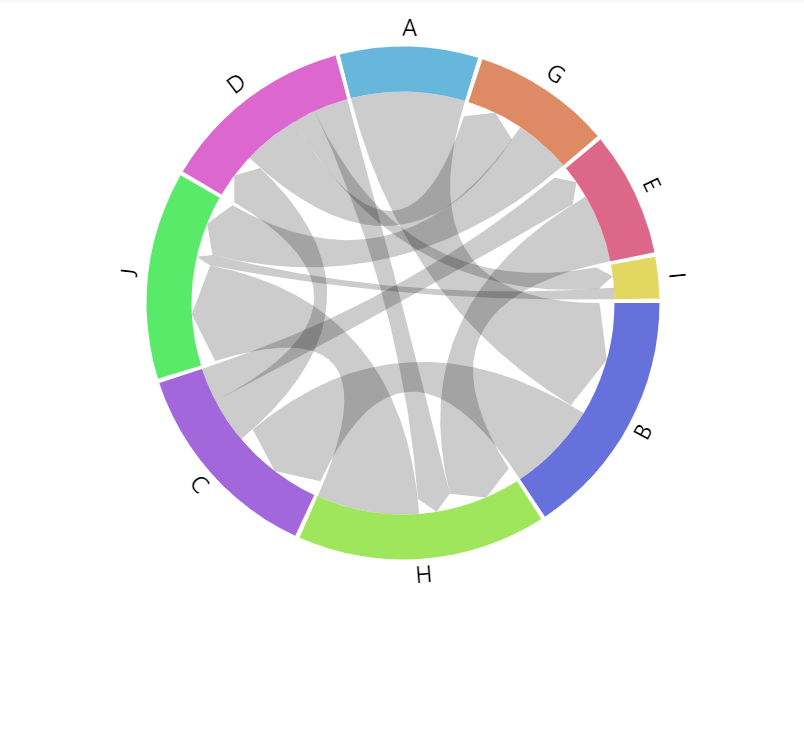

Width

Section titled “Width”

Nodes (colored bands) are 10 pixel wide by default.

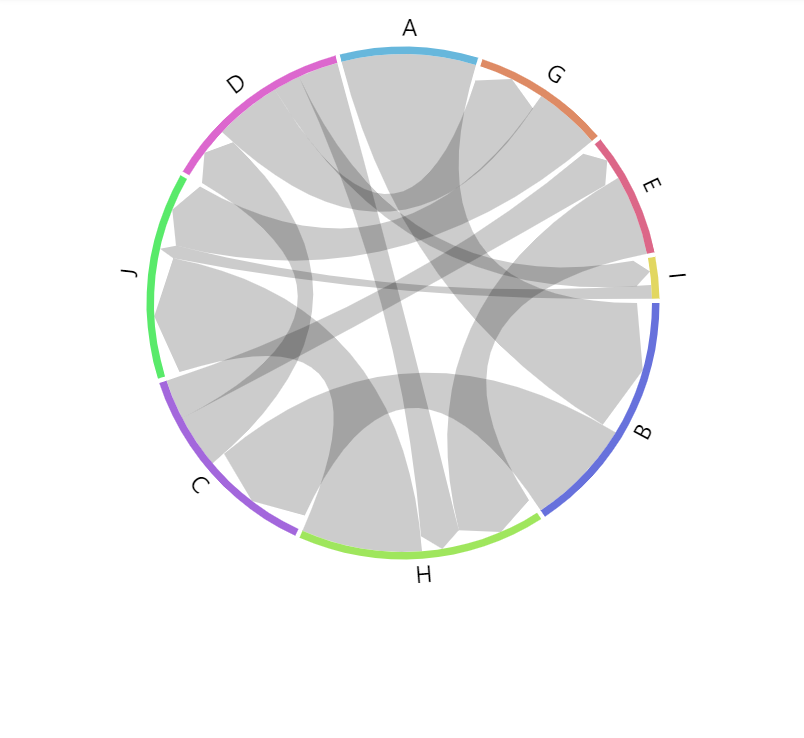

We can use series setting nodeWidth to change that:

let series = root.container.children.push(
  am5flow.Chord.new(root, {
    sourceIdField: "from",
    targetIdField: "to",
    valueField: "value",
    nodeWidth: 5
  })
);

Configuring nodes

Section titled “Configuring nodes”

Nodes in flow diagrams are represented by their own series, accessible via read-only property nodes which is an object of type ChordNodes.

It subsequently has a property rectangles which is a list of all nodes in series.

Since it’s a “list template”, we can use its template property to set any setting for the node, which is of type Slice:

series.nodes.rectangles.template.setAll({
  fillOpacity: 0.5,
  stroke: am5.color(0x000000),
  strokeWidth: 1
});
Open in CodePen

Node data

Section titled “Node data”

Setting node data

Section titled “Setting node data”

In chord diagrams, node ids (and names) are derived from link data (via sourceIdField and targetIdField).

In some cases, we might need more than just node id which comes from chord data.

For that we can set own data on series.nodes.data:

series.nodes.data.setAll([
  { id: "A", name: "Node A" },
  { id: "B", name: "Node B" },
  { id: "C", name: "Node C" }
]);

Modifying data fields

Section titled “Modifying data fields”

Node series (which is ChordNodes) is automatically set up for these data fields:

Data field Default value Comment
idField "id" ID of the node.
nameField "id" Name of the node.
fillField "fill" Fill color for the node.

We can modify those to suit our data:

series.nodes.setAll({
  idField: "id",
  nameField: "name"
});


series.nodes.data.setAll([
  { id: "A", name: "Node A" },
  { id: "B", name: "Node B" },
  { id: "C", name: "Node C" }
]);

Node colors via data

Section titled “Node colors via data”

We can also specify custom colors for nodes via node data:

series.nodes.data.setAll([
  { id: "A", name: "Node A", fill: am5.color(0xFF621F) },
  { id: "B", name: "Node B", fill: am5.color(0x297373) },
  { id: "C", name: "Node C", fill: am5.color(0x946B49) }
]);

The fill color will be lookup up in a "fill" field of the data. If we need to use something else, we will need to configure node series’ fillField as well:

series.nodes.setAll({
  idField: "id",
  nameField: "name",
  fillField: "color"
});


series.nodes.data.setAll([
  { id: "A", name: "Node A", color: am5.color(0xFF621F) },
  { id: "B", name: "Node B", color: am5.color(0x297373) },
  { id: "C", name: "Node C", color: am5.color(0x946B49) }
]);

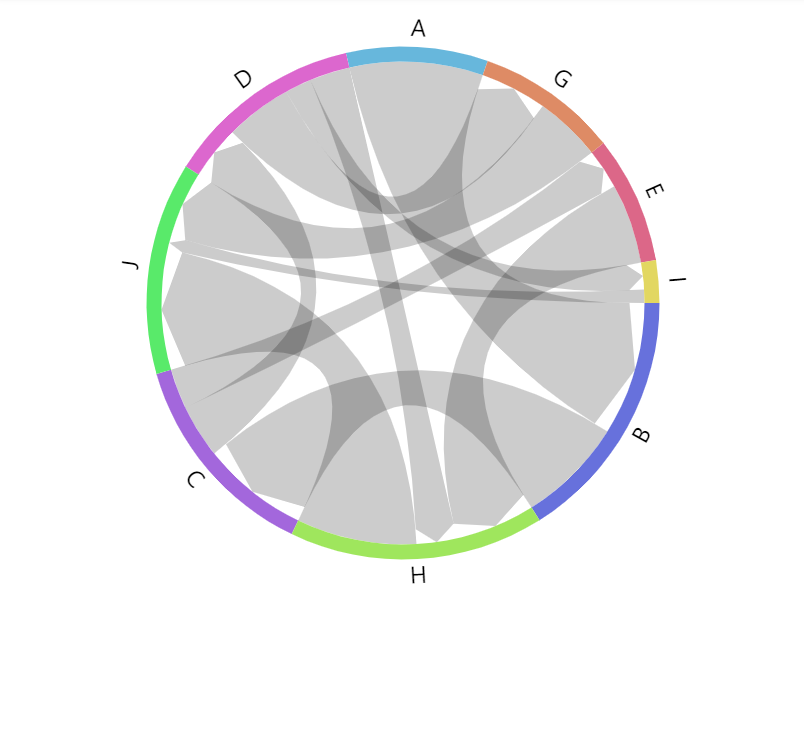

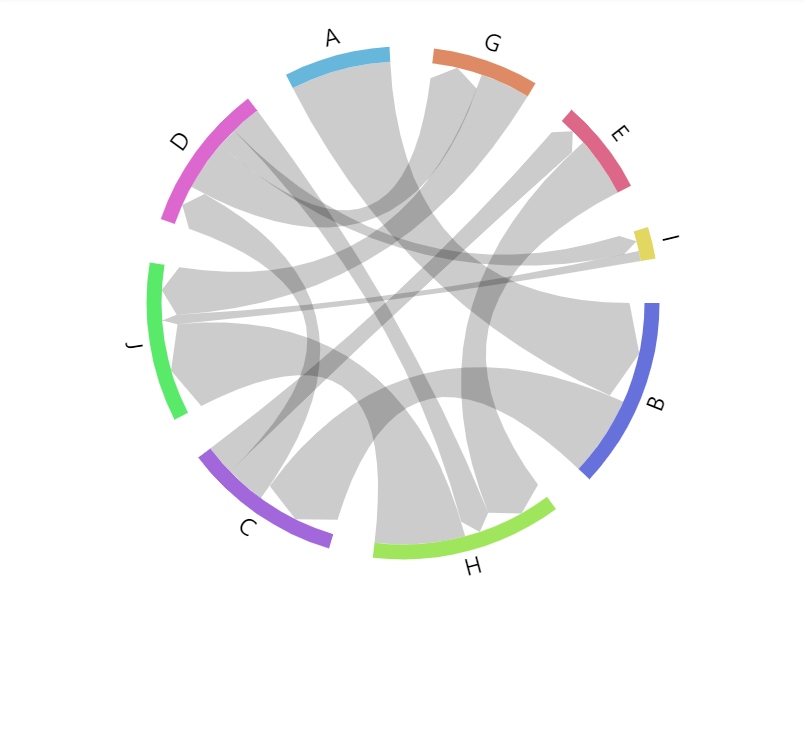

Gaps between nodes

Section titled “Gaps between nodes”

Chord diagrams display a tiny gap between each node by default.

We can control the size of it using series’ padAngle setting.

It accepts a numeric value in degrees.

let series = root.container.children.push(
  am5flow.Chord.new(root, {
    sourceIdField: "from",
    targetIdField: "to",
    valueField: "value",
    padAngle: 5
  })
);

Ordering nodes

Section titled “Ordering nodes”

Nodes in a chord diagram are ordered by their value: from biggest to smallest.

To change the order, there’s a series setting sort with possible values: "descending" (default), "ascending", and "none".

If set to "none" the nodes will appear in the same order by their first appearance in data.

let series = root.container.children.push(
  am5flow.Chord.new(root, {
    sourceIdField: "from",
    targetIdField: "to",
    valueField: "value",
    order: "none"
  })
);

Radius

Section titled “Radius”

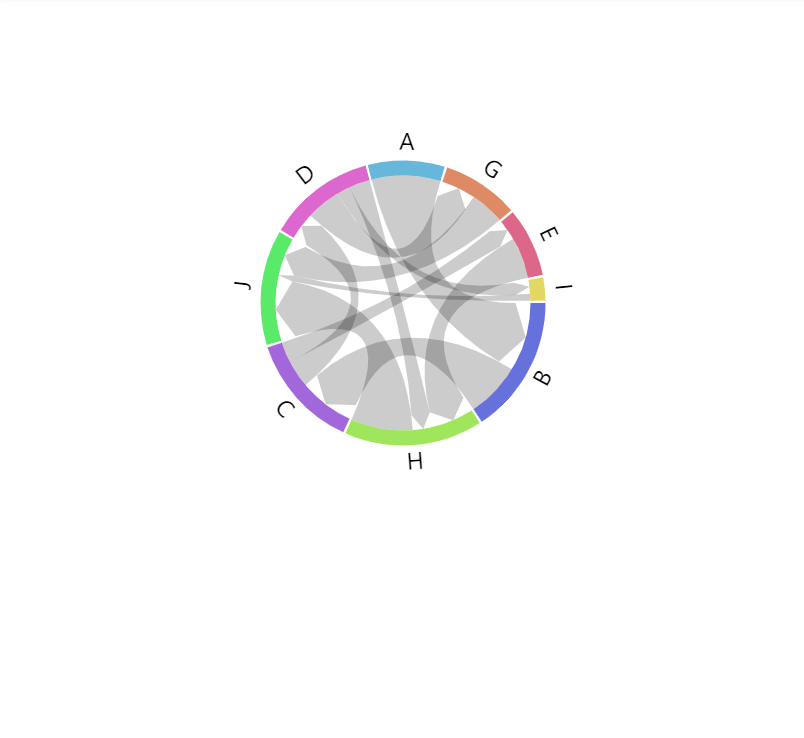

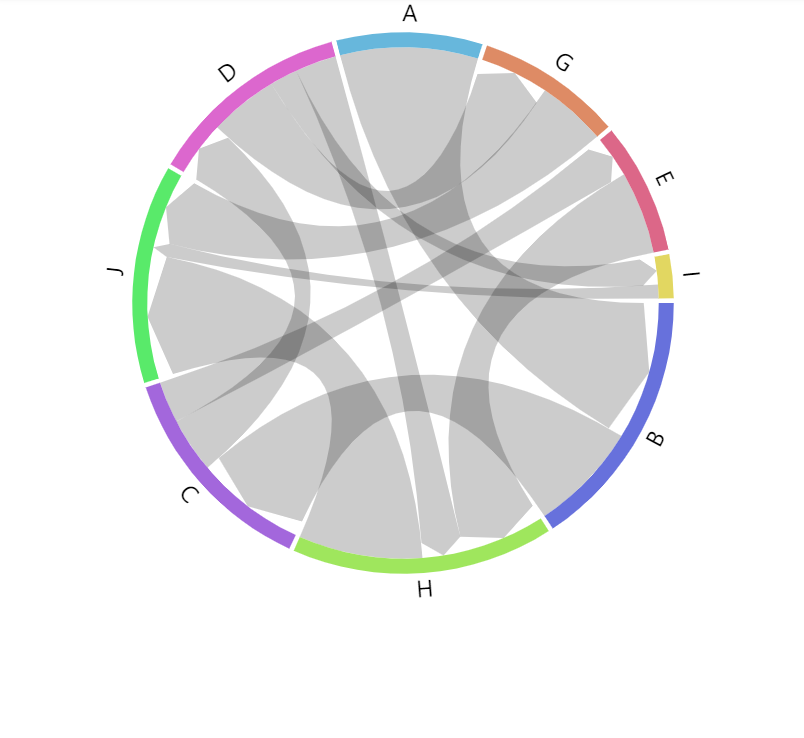

Chart’s outer radius can be set using its radius setting.

It can be either percent value (relative to available space) or fixed pixel value.

Chord diagram’s radius is set to 90% by default to leave some space for possible labels.

let series = root.container.children.push(
  am5flow.Chord.new(root, {
    sourceIdField: "from",
    targetIdField: "to",
    valueField: "value",
    radius: am5.percent(90)
  })
);

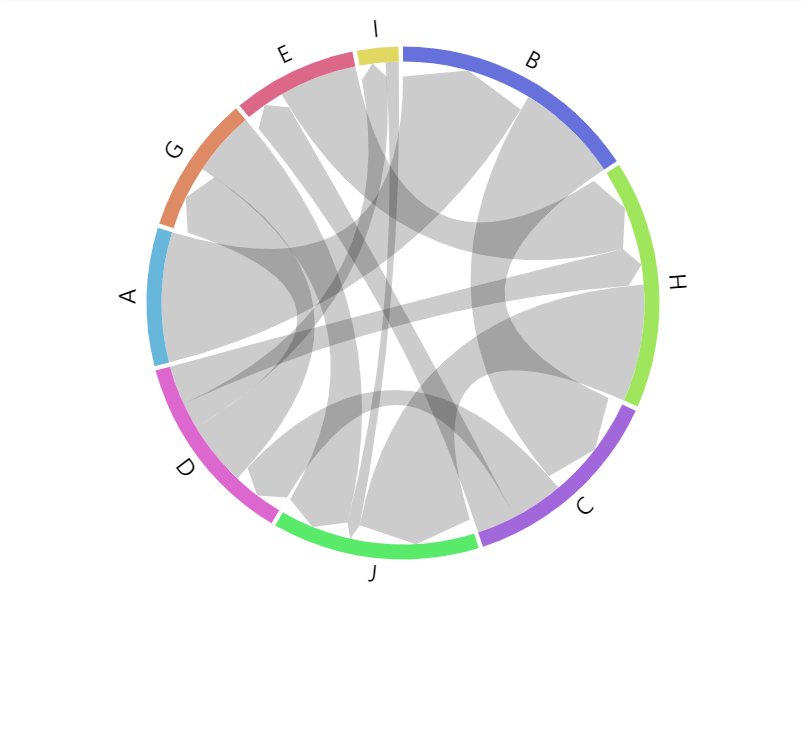

Start angle

Section titled “Start angle”

Chord diagram usually starts at zero angle (or the “right” edge of the circle). That’s where first node is drawn.

We can change that using series’ setting startAngle, which is a numeric value in degrees.

The angle can also be negative number:

let series = root.container.children.push(
  am5flow.Chord.new(root, {
    sourceIdField: "from",
    targetIdField: "to",
    valueField: "value",
    startAngle: -90
  })
);

Section titled “Links”
Section titled “Configuring links”

We can configure links using series property links.template. Via template, we can set any ChordLink setting.

series.links.template.setAll({
  fillOpacity: 0.5
});

Color mode

Section titled “Color mode”

Chord links can be colored in a number of ways via link template’s fillStyle setting:

series.links.template.setAll({
  fillStyle: "solid"
});

These values are available for fillStyle:

fillStyle

Comment

Example

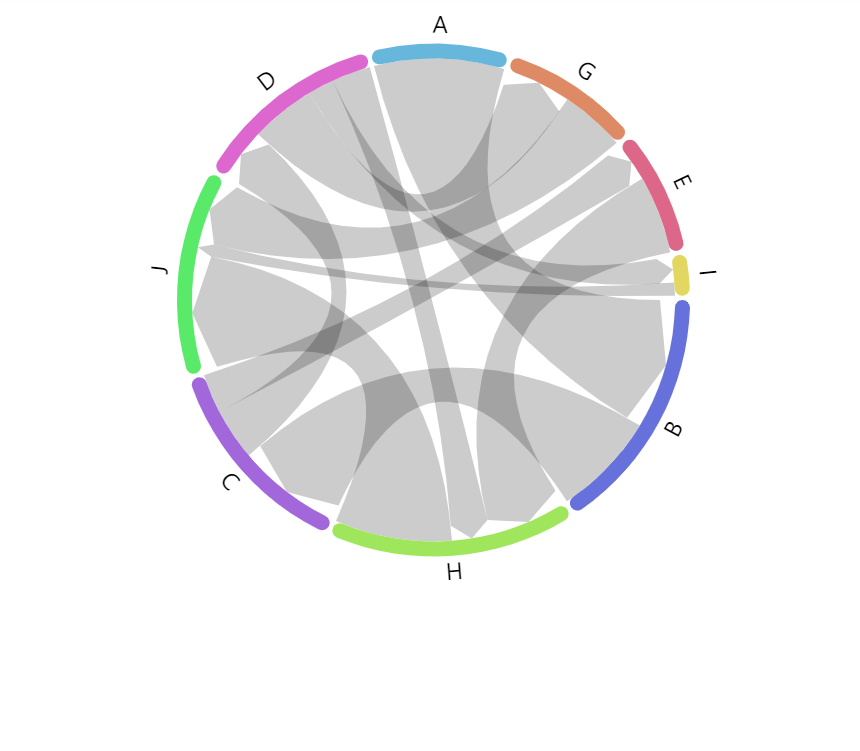

"solid" (default)

Solid color.

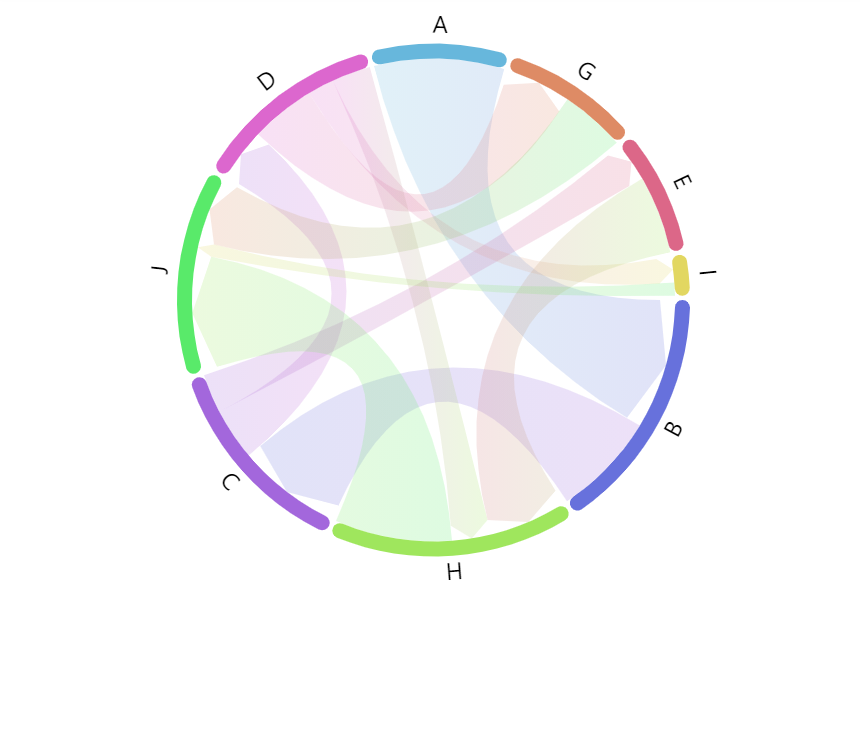

"gradient"

Gradient from source node color to target node color.

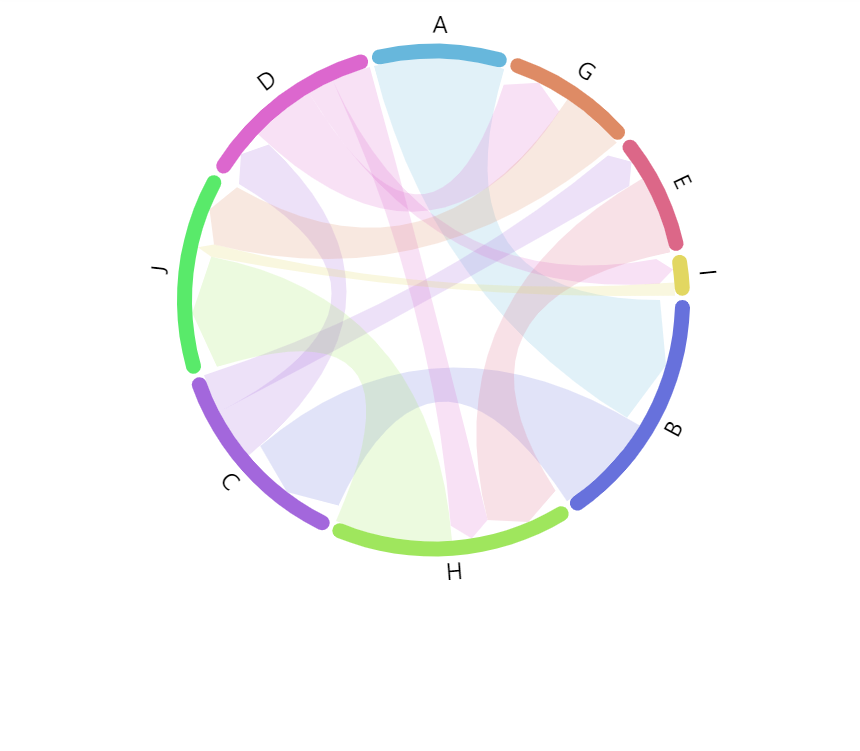

"source"

Source node color.

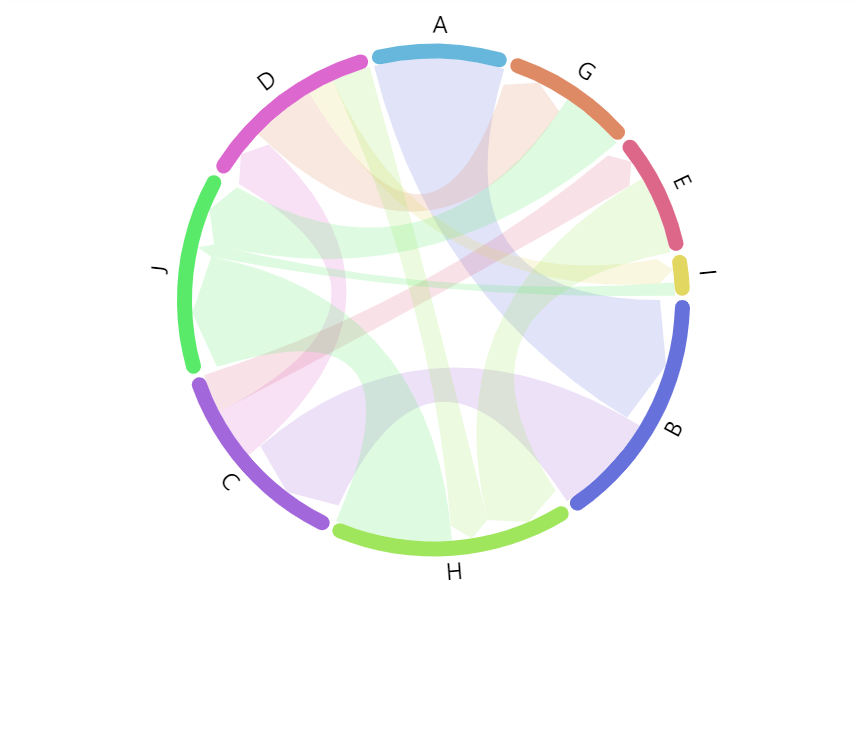

"target"

Target node color.

Labels

Section titled “Labels”

Chord diagram will display a label next to its nodes by default.

Configuring labels

Section titled “Configuring labels”

Labels in chord diagram are attached to nodes, so they can be configured via nodes sub-series, specifically nodes.labels.template:

series.nodes.labels.template.setAll({
  fontSize: 20,
  maxWidth: 150,
  wrap: true
});

Refer to RadialLabel class reference for a full list of available settings.

Label content

Section titled “Label content”

To change label content, we only need to set text property of the label template:

series.nodes.labels.template.setAll({
  text: "[bold]{name}[/] ({sumOutgoing})"
});

Contents of the label can include data placeholders (codes in curly brackets that will be replaced by actual data) and in-line formatting blocks (formatting instructions enclosed in square brackets).

For available data placeholder fields refer to IChordNodesDataItem.

Label type

Section titled “Label type”

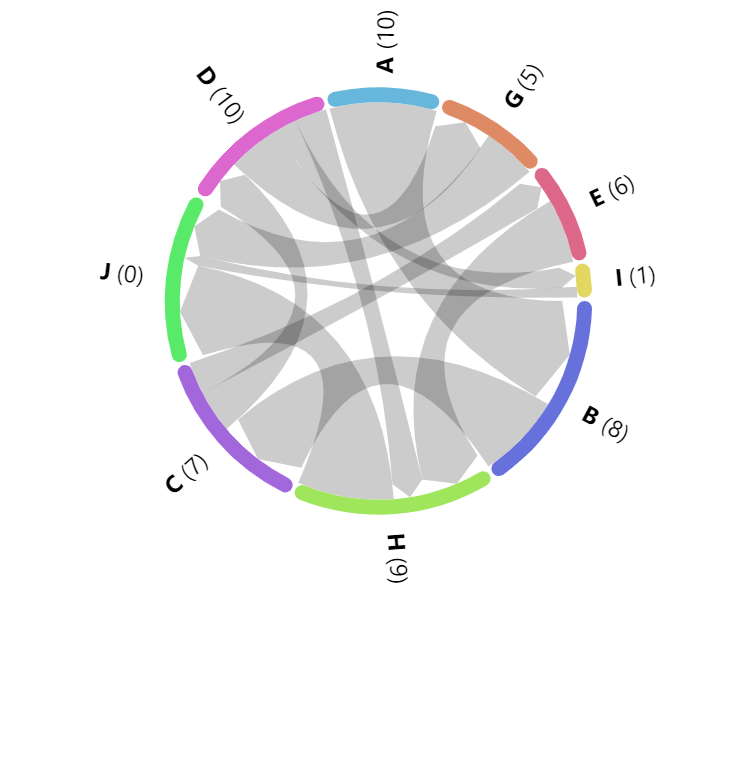

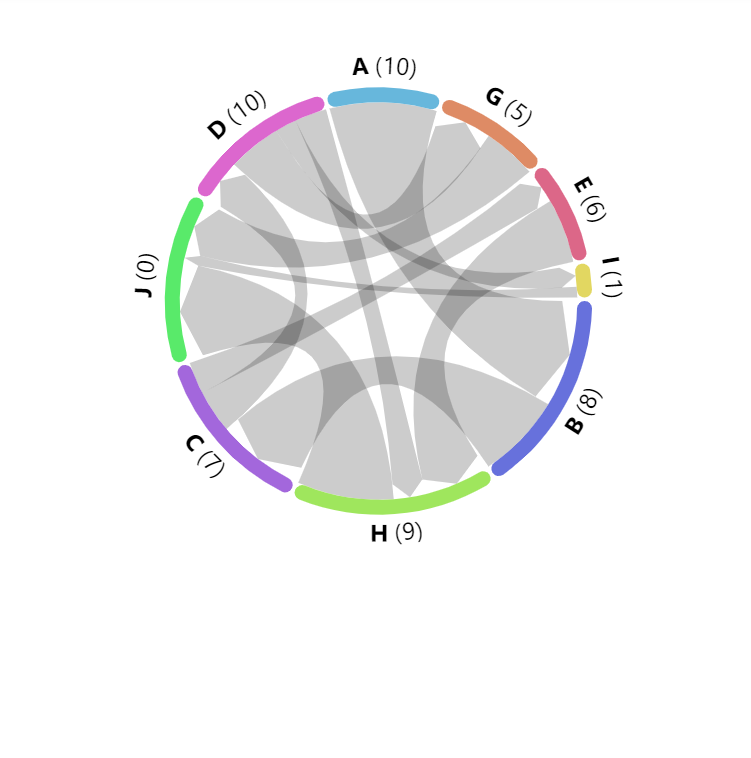

Normally, chord series will use circular labels: ones that follow the curve of the node itself.

This can be changed using label setting: textType.

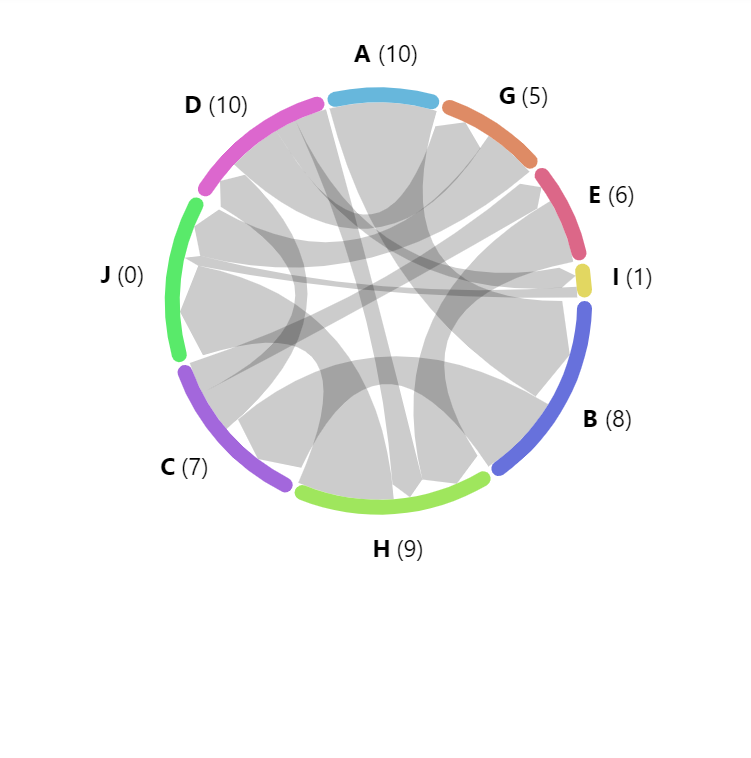

Available values are: "circular" (default), "radial", and "adjusted".

series.nodes.labels.template.setAll({
  text: "[bold]{name}[/] ({sumOutgoing})",
  textType: "radial"
});

Open in CodePen

Label radius

Section titled “Label radius”

The distance between label and outer edge of the node is controlled by label’s radius setting.

It accepts numeric values in pixels, including negative values. The latter would put label inside the node.

series.nodes.labels.template.setAll({
  text: "[bold]{name}[/] ({sumOutgoing})",
  textType: "radial",
  radius: 20
});

Disabling labels

Section titled “Disabling labels”

To disable labels, we can simply set their forceHidden to true:

series.nodes.labels.template.set("forceHidden", true);

Tooltips

Section titled “Tooltips”
Section titled “On links”

Links will display a tooltip when hovered/touched. The default content is "{sourceId} - {targetId}: {value}" which will show source node ID, followed by target node ID, and link value.

To change it, we can use link’s tooltipText setting:

series.links.template.setAll({
  tooltipText: "From: [bold]{sourceId}[/]\nTo: [bold]{targetId}\nValue: [bold]{value}[/]"
});

Contents of the tooltip can include data placeholders (codes in curly brackets that will be replaced by actual data) and in-line formatting blocks (formatting instructions enclosed in square brackets).

For available data placeholder fields refer to IChordDataItem.

On nodes

Section titled “On nodes”

To add tooltips to nodes, simple set tooltipText on node template:

series.nodes.rectangles.template.setAll({
  tooltipText: "[bold]{name}[/]\nOutgoing: {sumOutgoing}\nIncoming: {sumIncoming}"
});

For available data placeholder fields refer to IChordNodesDataItem.
