Legend

Legend is a universal control that can be used on virtually any chart type, fed by series or other sources. This tutorial will cover common techniques of using a legend.

Adding

Section titled “Adding”

We create a legend just like any other visual element: by calling its class’ new() method and pushing it to some sore of container, most commonly a chart:

let legend = chart.children.push(am5.Legend.new(root, {}));
legend.data.setAll(chart.series.values);

Legend data

Section titled “Legend data”

As per code snipped above, legend data is set via its data property.

It has a number of methods to add single or a few data items at once.

For more information, refer to the “Data” tutorial.

Now, let’s take a look at two types of data we can set on legend.

Data item list

Section titled “Data item list”

The most common and convenient way is to pass in an array of DataItem objects.

The good news is that most things that may be represented by legend already have such list readily available.

For example, chart’s series property is a list, which has values property, which is an array of data items representing each series.

We can use that to automatically feed the legend:

legend.data.setAll(chart.series.values);

Or, if we would like each data item in series to have its own legend item, we can use series’ dataItems property, which too is an array of data items:

legend.data.setAll(series.dataItems);

Please note, that non-standard setups might need a little extra configuration.

For example if we would try to use column series’ data items as data for the legend, we would need to specify which data field holds the name to use in legend:

let legend = chart.children.push(am5.Legend.new(root, {
  nameField: "categoryX"
}));


legend.data.setAll(series.dataItems);

Here’s an example of legend feed its items from actual columns in a column series:

Open in CodePen

For a more advanced version of the above demo (with hover support), check out “Individual legend item for each column in series”.

Standalone data

Section titled “Standalone data”

Another option to supply data to legend is via plain array of objects, e.g.:

let legend = chart.children.push(am5.Legend.new(root, {
  nameField: "name",
  fillField: "color",
  strokeField: "color",
  centerX: am5.percent(50),
  x: am5.percent(50)
}));


legend.data.setAll([{
  name: "Under budget",
  color: am5.color(0x297373)
}, {
  name: "Over budget",
  color: am5.color(0xff621f)
}]);

Since we are supplying completely custom data, we will need to specify which keys in data hold item name and colors using nameField, fillField, and strokeField respectively.

Open in CodePen

Positioning

Section titled “Positioning”

Legend does not have any specific position setting.

Where it is placed is determined by the layout setting of parent container.

In most chart setups, legend container will be chart itself.

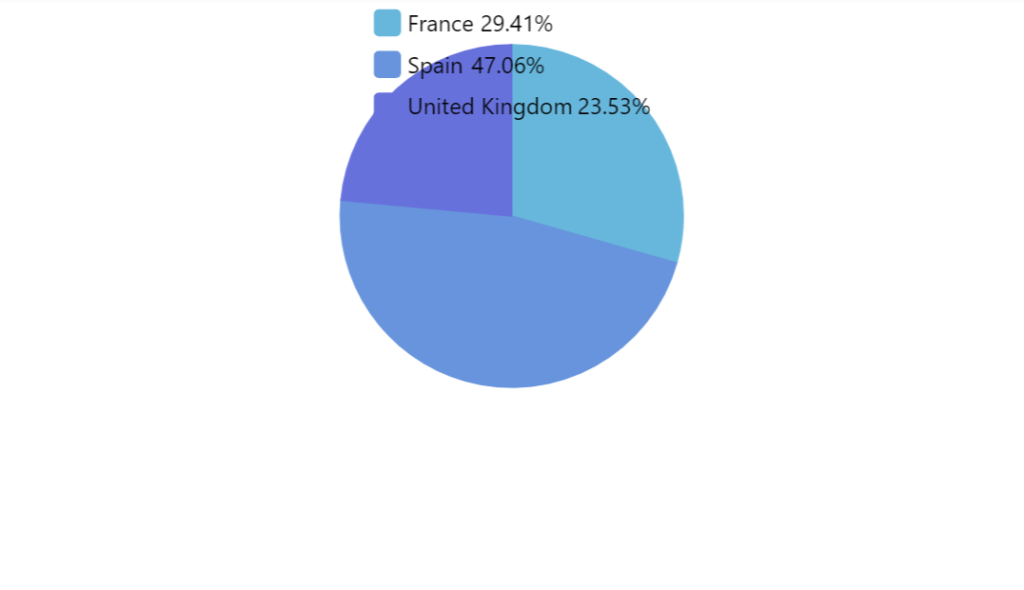

By default, chart does not have any layout, so pushing a legend will just plop it on the top. It will also not affect size of the plot itself.

If we need to arrange chart and legend neatly, in a non-overlapping, orderly way, we need to add a layout setting to the chart.

let chart = root.container.children.push(
  am5percent.PieChart.new(root, {
    layout: root.verticalLayout
  })
);


let legend = chart.children.push(am5.Legend.new(root, {}));

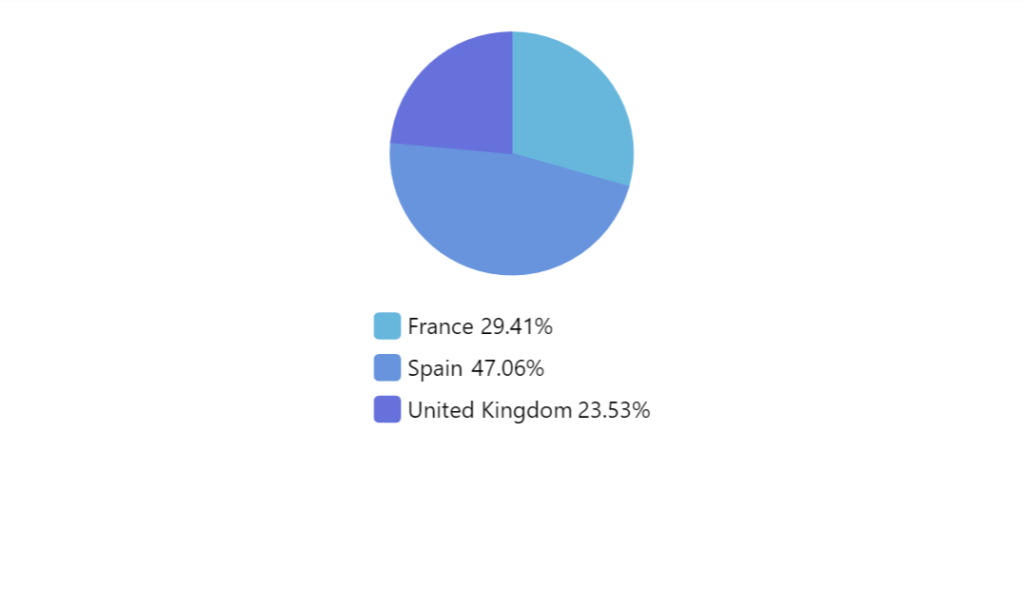

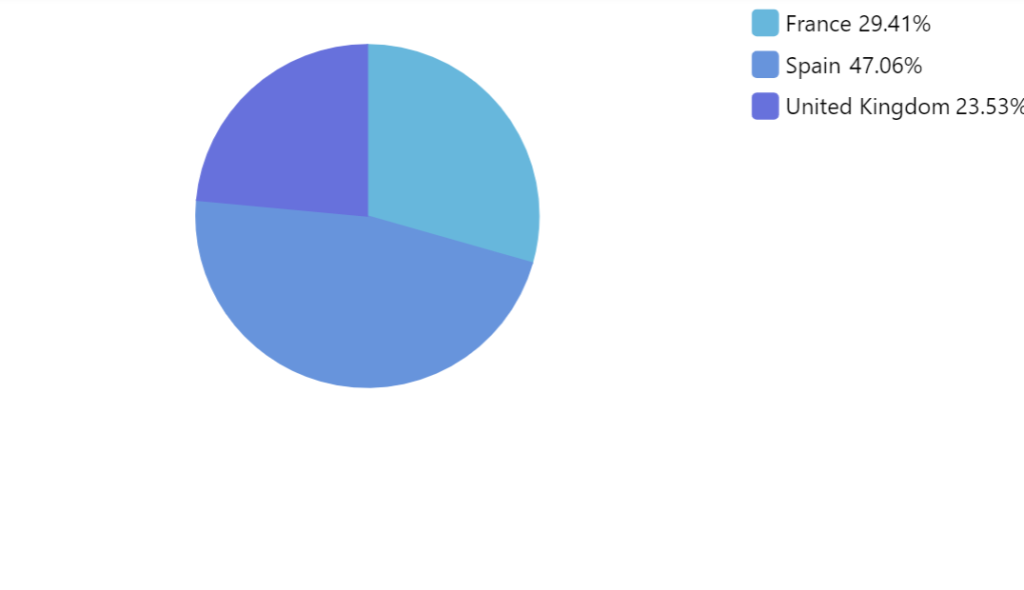

The legend appears on the bottom (or right) because it’s the last element we’ve added to the chart.

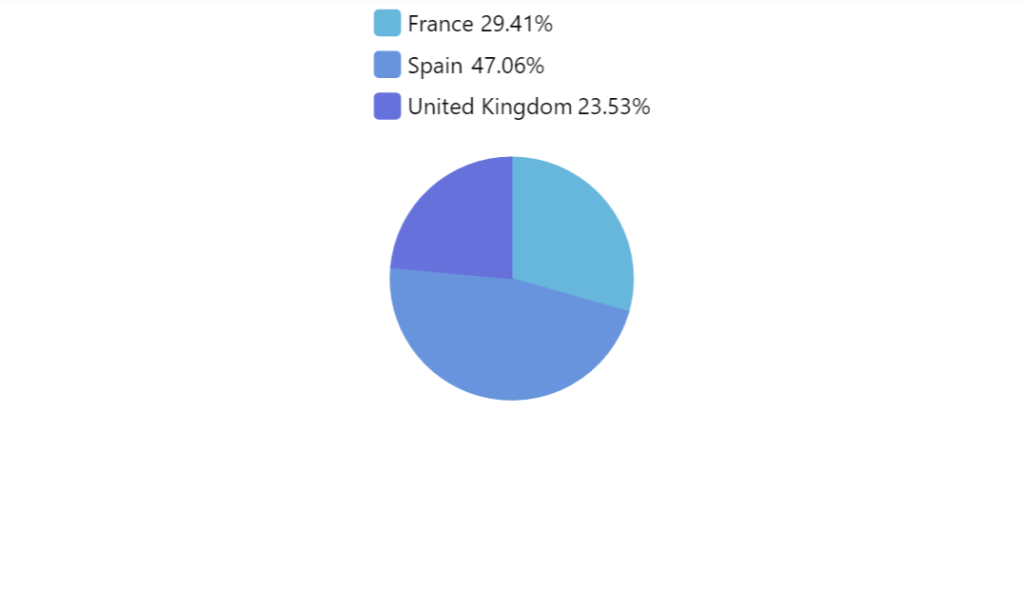

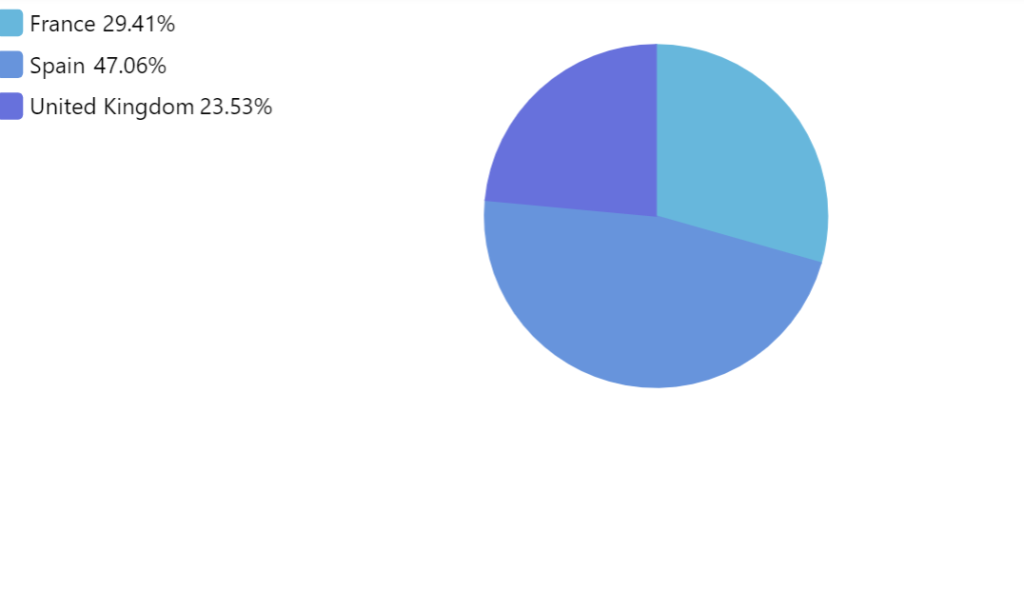

If we’d like the legend to appear on top (or left), we’d need to ensure it’s the first child of the chart by using children.unshift() method instead of push().

let chart = root.container.children.push(
  am5percent.PieChart.new(root, {
    layout: root.verticalLayout
  })
);


let legend = chart.children.unshift(am5.Legend.new(root, {}));

Aligning

Section titled “Aligning”

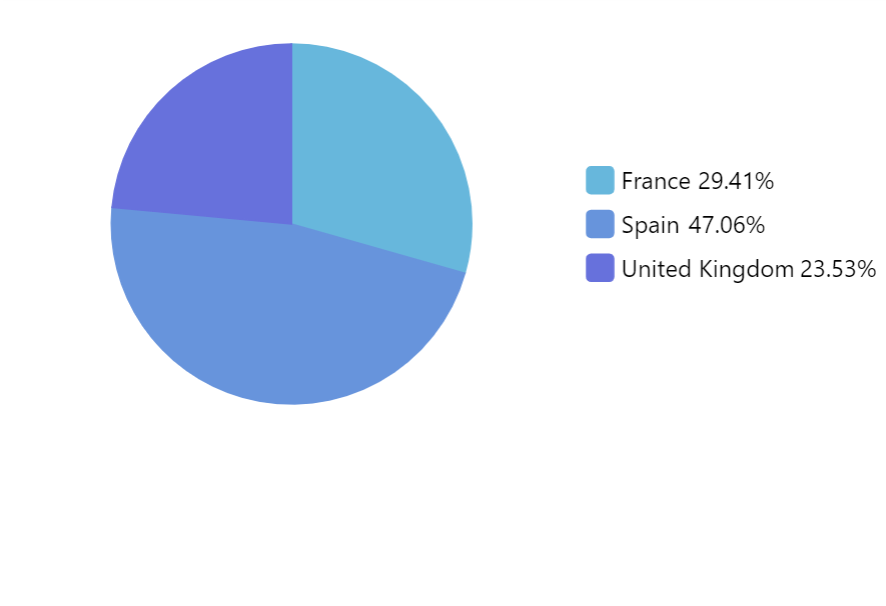

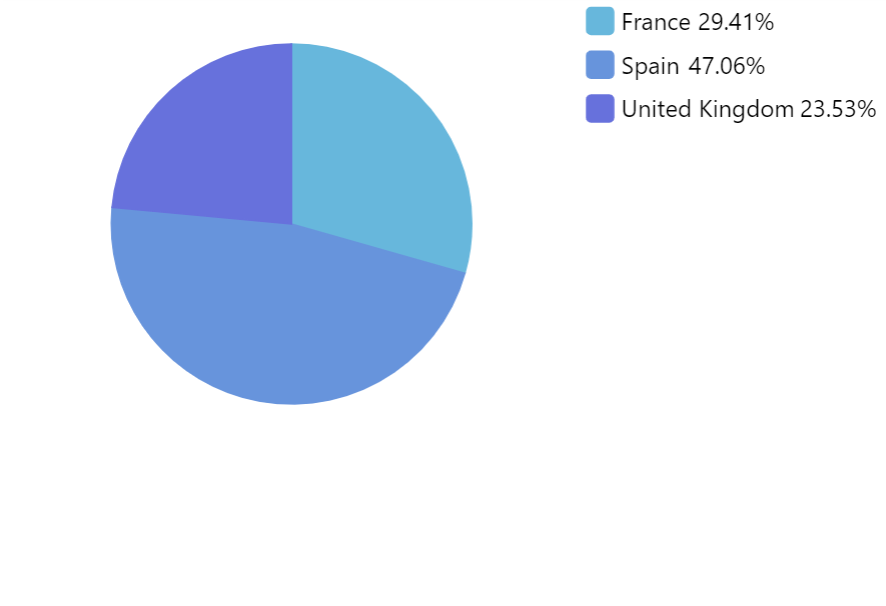

We can also fine-tune legend’s position by specifying x and/or y values as well as using centerX and centerY settings to indicate what should be considered the center of the legend.

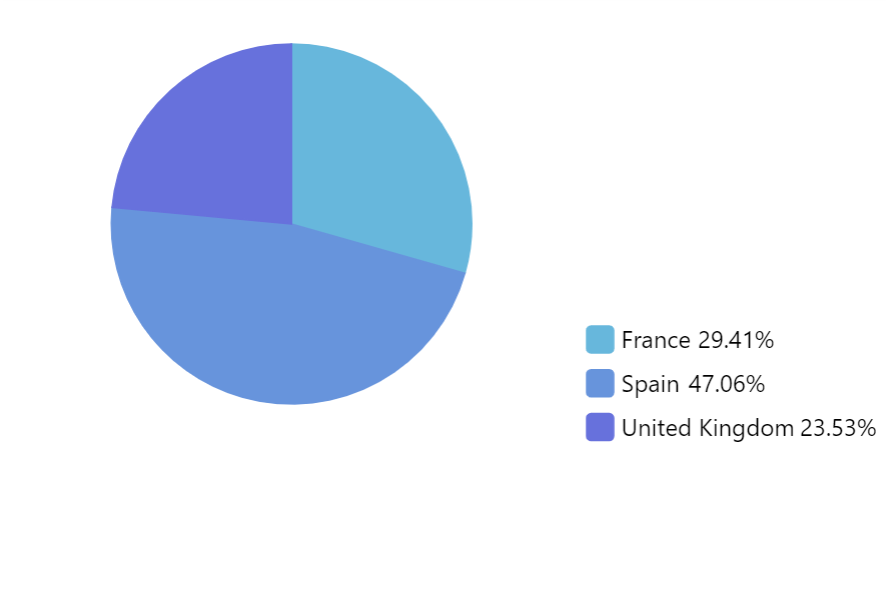

The following will align the legend vertically to the middle of the chart:

let legend = chart.children.push(am5.Legend.new(root, {
  y: am5.percent(50),
  centerY: am5.percent(50)
}));

Layout

Section titled “Layout”

Setting layout

Section titled “Setting layout”

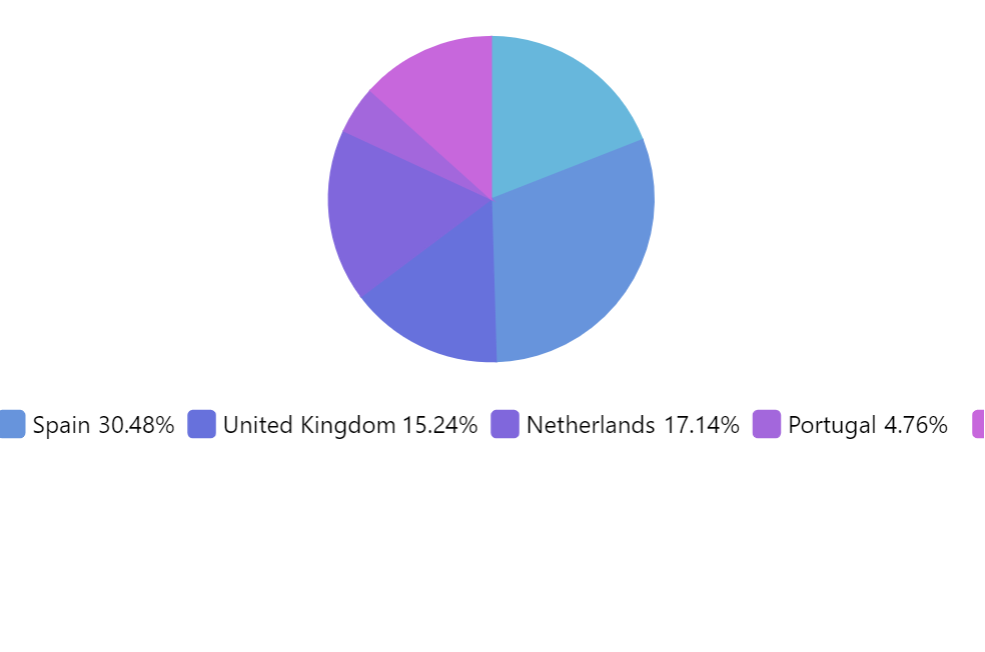

Legend’s items can be arranged horizontally, vertically, or as a grid (default).

Just like with any container, e.g. chart, it is controlled by the layout setting.

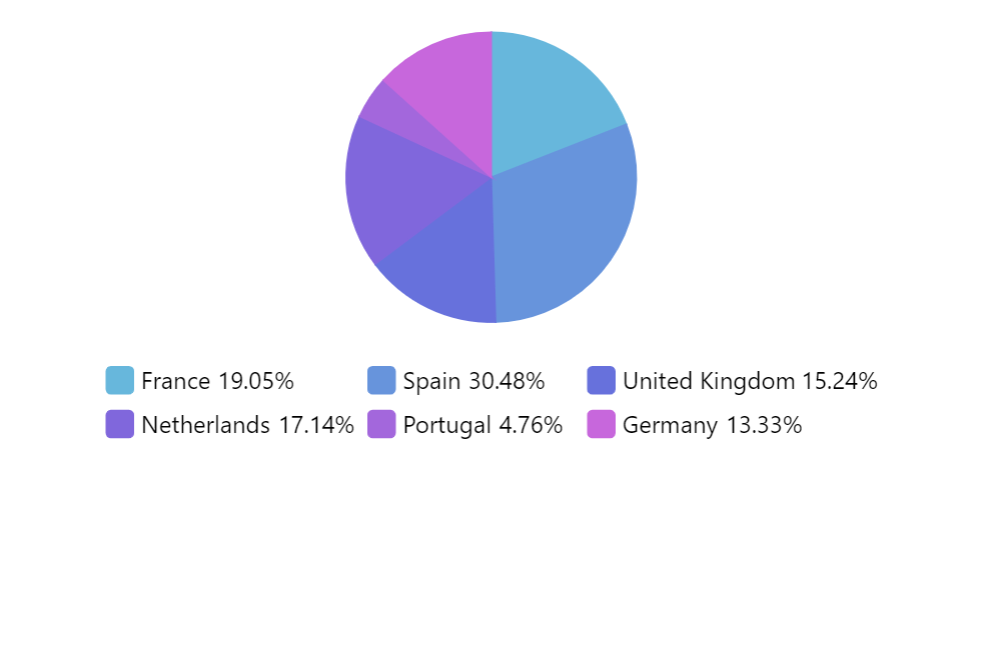

In legend, it’s set to root.gridLayout by default, which means that legend items are arranged horizontally in rows, wrapping to new lines when they don’t fit, as well as aligned into columns.

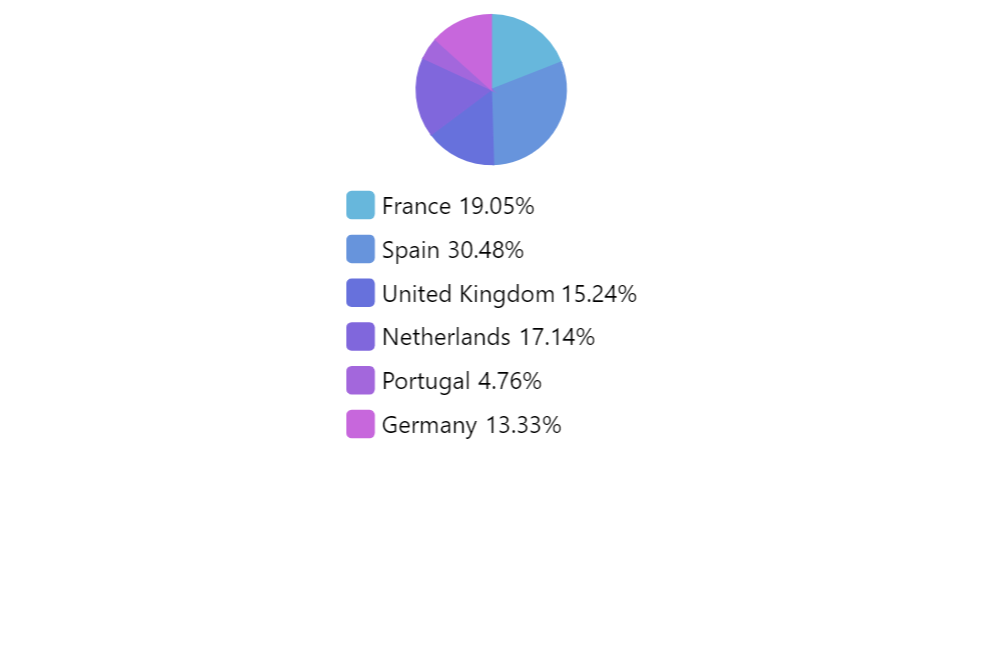

let legend = chart.children.push(am5.Legend.new(root, {
  x: am5.percent(50),
  centerX: am5.percent(50),
  layout: root.verticalLayout
}));

Obviously, when choosing layout, we need to think of the place the legend will appear in, as well as a number of potential items in it.

Grid layout

Section titled “Grid layout”

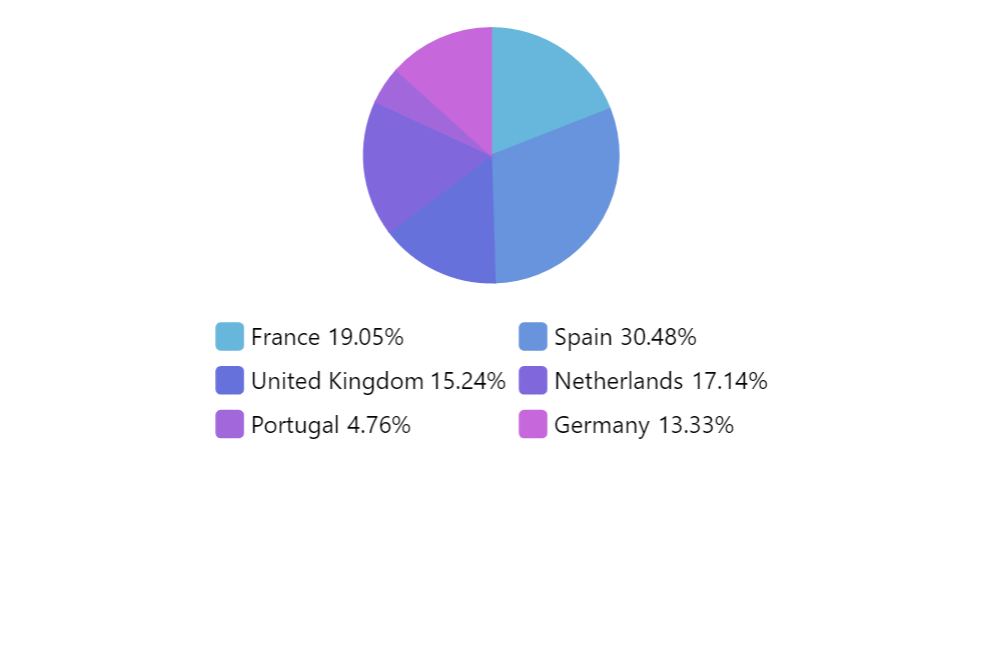

Grid layout can also be tweaked with a couple of settings of its own:

  • maxColumns - maximum number of columns to allow in the grid.

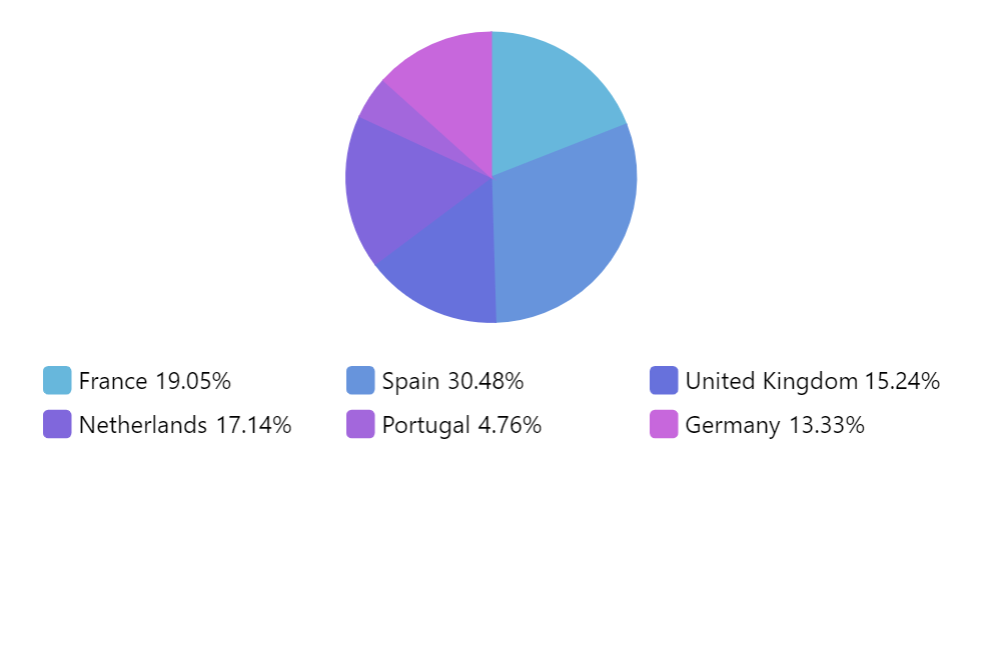

  • fixedWidthGrid - if set to true will make all columns equal in width, as opposed to best fit.

Since we don’t want to modify a global instance of the grid layout (it may be used by other chart elements), we will need to create a unique instance of GridLayout specifically for the legend:

let legend = chart.children.push(am5.Legend.new(root, {
  centerX: am5.percent(50),
  x: am5.percent(50),
  layout: am5.GridLayout.new(root, {
    maxColumns: 3,
    fixedWidthGrid: true
  })
}));

Open in CodePen

Markers

Section titled “Markers”

There are a few ways a legend can build its markers:

  • Markers that resemble actual look of the item, e.g. series.
  • Default square markers.
  • Completely custom markers.

Marker size

Section titled “Marker size”

Markers are 18 x18 pixels by default.

We can change that using markers.template:

legend.markers.template.setAll({
  width: 24,
  height: 24
});

Note that marker template is just a container but not actual element, so there’s not much we can do here besides the size, and some other settings like padding.

Look-resembling markers

Section titled “Look-resembling markers”

By default legend will try to build a marker that resembles its items, e.g. series.

For example, marker for line series will look like line with the same color.

Since the markers are build by each target, e.g. series, and can contain a number of elements, there’s little we can do about configuring the look for those.

Default markers

Section titled “Default markers”

If we want to have more control on look of the markers, we can enable default markers by setting legend’s setting useDefaultMarker to true.

let legend = chart.children.push(am5.Legend.new(root, {
  centerX: am5.percent(50),
  x: am5.percent(50),
  useDefaultMarker: true
}));

Now the legend will create its own markers for each item, using RoundedRectangle elements.

We can configure those rectangles using markerRectangles.template. It accepts all RoundedRectangle settings.

legend.markerRectangles.template.setAll({
  cornerRadiusTL: 10,
  cornerRadiusTR: 10,
  cornerRadiusBL: 10,
  cornerRadiusBR: 10
});

The above will make all legend markers round:

Open in CodePen

Images as markers

Section titled “Images as markers”

Markers can also be completely customized.

After we insert an item into legend’s data, it creates a related data item and all the marker elements - such as rectangles.

We can grab that data item, use it to access visual elements, then modify them.

The following code will remove built-in marker elements and will replace them with an image.

let legendDataItem = legend.dataItems[legend.dataItems.length - 1];
let marker = legendDataItem.get("marker")
marker.children.push(am5.Picture.new(root, {
  width: 20,
  height: 20,
  src: "/myImage.svg"
}));
legendDataItem.get("markerRectangle").set("forceHidden", true);
Open in CodePen

Another way to modify legend markers is to use template’s setup function.

Same result, different approach.

legend.markers.template.setup = function(marker) {
  marker.events.on("dataitemchanged", function() {
    let dataItem = marker._dataItem
    let series = dataItem.dataContext;
    marker.children.push(am5.Picture.new(root, {
      width: 20,
      height: 20,
      src: "https://www.amcharts.com/wp-content/uploads/flags/" + series.get("name").toLowerCase() + ".svg"
    }));


    dataItem.on("markerRectangle", function(rectangle) {
      rectangle.set("forceHidden", true);
    })
  });
};
Open in CodePen

Labels

Section titled “Labels”

Configuring labels

Section titled “Configuring labels”

Legend has two properties related to labels: labels and valueLabels.

One contains all instances of name labels, the other - value labels.

Both are “list templates”, meaning that we can use their template property to specify any setting for those labels.

template accepts any Label setting.

legend.labels.template.setAll({
  fontSize: 16,
  fontWeight: "300"
});


legend.valueLabels.template.setAll({
  fontSize: 16,
  fontWeight: "400"
});

Disabling value labels

Section titled “Disabling value labels”

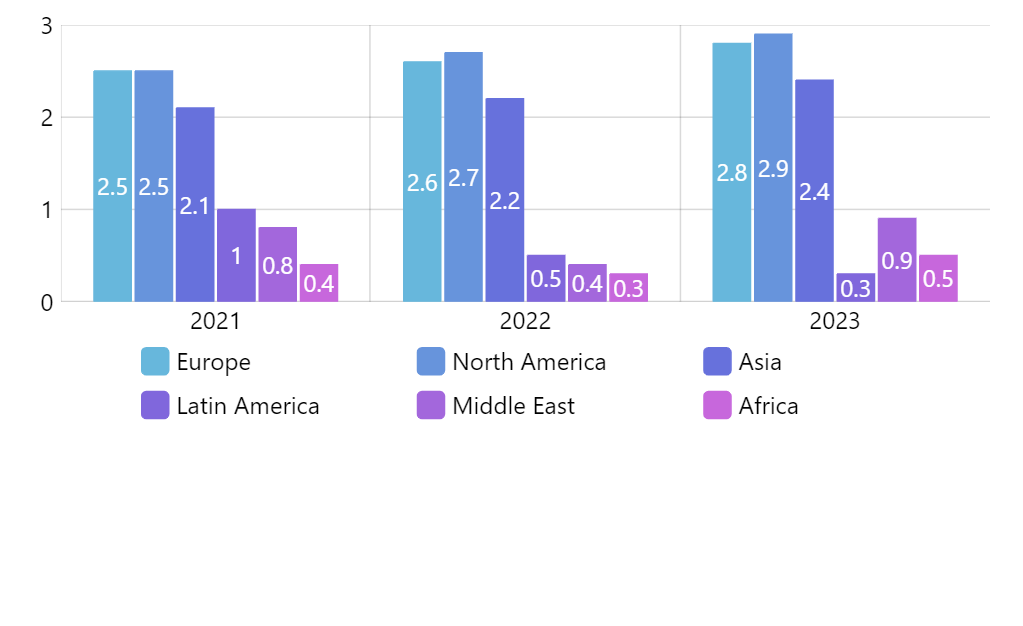

Legend comes with both labels and value labels, with space reserved for both of them.

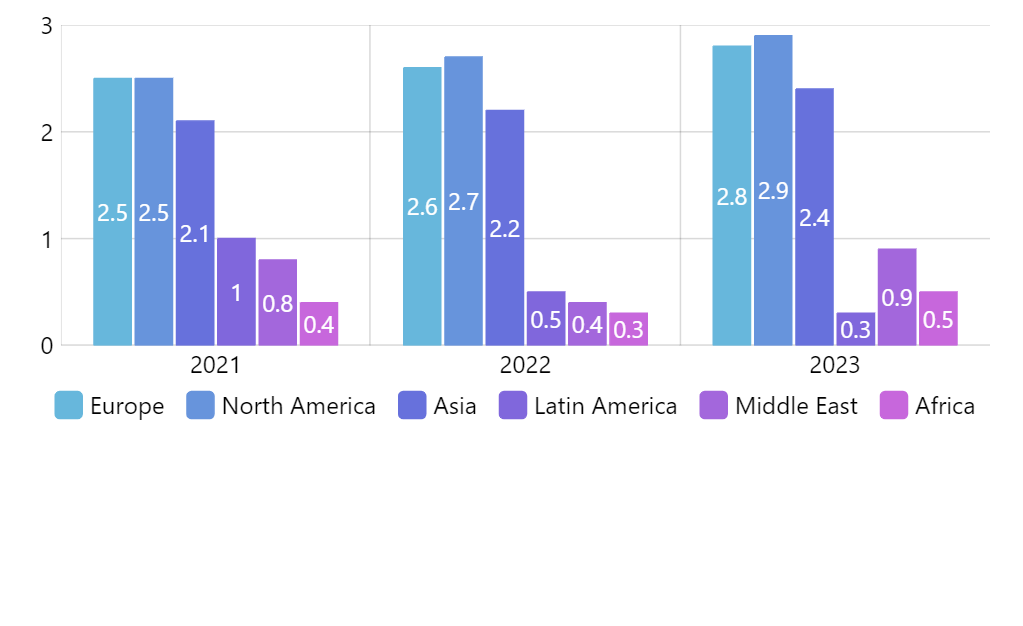

If you are not using the latter, you might consider disabling them, so that the legend becomes more compact, possibly freeing up more space for the chart itself.

legend.valueLabels.template.set("forceHidden", true);

Dynamic label content

Section titled “Dynamic label content”

In most charts legend’s labels will be populated by its series.

The content of labels will depend on whether legend is displaying list of series, or series data items, and how those series are set up.

For series-specific configuration options refer to these tutorials:

Altering functionality

Section titled “Altering functionality”

Disabling toggling

Section titled “Disabling toggling”

Legend items are togglable by default.

To disable toggling, we need to set legend’s clickTarget setting to "none":

let legend = chart.children.push(am5.Legend.new(root, {
  y: am5.percent(50),
  centerY: am5.percent(50),
  clickTarget: "none"
}));
Open in CodePen

Disabling hovers

Section titled “Disabling hovers”

To disable just hover effects, like when hovering on legend item triggers hover on a related object, like a slice of a pie chart, we will need to explicitly disable pointerover event of all created items.

legend.itemContainers.template.setup = function(item) {
  item.events.disableType("pointerover")
};
Open in CodePen

Disabling graying out

Section titled “Disabling graying out”

To disable graying out of legend items when they are toggled off, simply disable propagation of a disabled state on item containers:

legend.itemContainers.template.set("setStateOnChildren", false);

Scrollable legend

Section titled “Scrollable legend”

If legend’s contents do not fit into its height, we can enable scrolling by setting its verticalScrollbar instance of a Scrollbar:

var legend = chart.children.push(am5.Legend.new(root, {
  centerY: am5.percent(50),
  y: am5.percent(50),
  layout: root.verticalLayout,
  height: am5.percent(100),
  verticalScrollbar: am5.Scrollbar.new(root, {
    orientation: "vertical"
  })
}));
Open in CodePen

External container

Section titled “External container”

Separate Root element

Section titled “Separate Root element”

Creating a legend in an external container is as easy as creating another root element, then pushing legend into its children:

let legendRoot = am5.Root.new("legenddiv");


let legend = legendRoot.container.children.push(
  am5.Legend.new(legendRoot, {
    width: am5.percent(100),
    centerX: am5.percent(50),
    x: am5.percent(50),
    layout: legendRoot.grid
  })
);


legend.data.setAll(series.dataItems);
Open in CodePen

External legend on XY charts

Section titled “External legend on XY charts”
let legendRoot = am5.Root.new("legenddiv");


legendRoot.setThemes([
  am5themes_Animated.new(legendRoot),
  am5xy.DefaultTheme.new(legendRoot)
]);

Sizing external legend container

Section titled “Sizing external legend container”

If we’d like our external legend to auto-size according to its actual contents, we could use its boundschanged event:

legend.events.on("boundschanged", function() {
  document.getElementById("legenddiv").style.height = legend.height() + "px"
});
Open in CodePen

And here’s another example which creates a horizontally-scrollable external legend:

Open in CodePen
