Map chart

Map chart is a chart type used to display geographical maps. This tutorial walks through the basics of creating such charts.

Loading required modules

Map charts require two amCharts 5 modules: “index” and “map”.

You can import those in your TypeScript / ES6 application as JavScript modules:

import * as am5 from "@amcharts/amcharts5";
import * as am5map from "@amcharts/amcharts5/map";

For vanilla JavaScript applications and web pages, you can use “script” version:

<script src="https://cdn.amcharts.com/lib/5/index.js"></script>
<script src="https://cdn.amcharts.com/lib/5/map.js"></script>

More info

For more information on installing amCharts 5 as well as loading modules refer to our “Getting started” tutorial.

Geodata (maps)

Besides modules that bring in actual functionality, we will also need to load a specific map we need to use. We call such map data “geodata”.

Map chart uses geodata in GeoJSON format. There are hundreds of maps available for use with amCharts 5.

They are available as a zipped download from our downloads page, or as an NPM package @amcharts/amcharts5-geodata, or via CDN.

Geodata detail

Most of the maps come in two detail versions: “low” and “high”.

Some global world and region maps come in three: “low”, “high”, and “ultra”.

High and ultra detail maps offer finer maps, but they’re much bigger files to load, so we, as a developer, would need to weight pros and cons before choosing the correct file to use.

For most setups “low” detail should be enough.

File and directory structure

World/country maps

The name of the geodata files consist of a camel-cased country or region name, as well as detail suffix (“Low”, “High”, “Ultra”), e.g.: franceHigh or worldLow.

World and country-maps are located in the root directory of the geodata package. They can be loaded like this:

TypeScript

import am5geodata_worldLow from "@amcharts/amcharts5-geodata/worldLow";

JavaScript

<script src="https://cdn.amcharts.com/lib/5/geodata/worldLow.js"></script>

Regional maps

Regional maps are located in their respective sub-directories, e.g. region/usa/*.

The global name of the regional map will reflect its sub-directory structure.

For example, congressional district map of Florida would load like this:

TypeScript

import am5geodata_region_usa_congressional2022_flLow from "@amcharts/amcharts5-geodata/region/usa/congressional2022/flLow";

JavaScript

<!-- Will load as a global am5geodata_region_usa_congressional2022_flLow variable -->
<script src="https://cdn.amcharts.com/lib/5/geodata/region/usa/congressional2022/flLow.js"></script>

More info

For more information on how to use regional maps, visit “Using regional maps” tutorial.

Instantiating the chart

As with any chart type in amCharts 5, we’ll need to start with creation of the Root element.

In it we will create an instance of MapChart class.

TypeScript

let root = am5.Root.new("chartdiv");
let chart = root.container.children.push(
  am5map.MapChart.new(root, {})
);

JavaScript

var root = am5.Root.new("chartdiv");
var chart = root.container.children.push(
  am5map.MapChart.new(root, {})
);

More info

The notion of creating class instances using .new() method is described in “Creating a chart” section in the “Getting started” tutorial. Make sure you check it out.

Adding series

Map chart, like most of the charts, is a serial chart, which means that it requires at least one series to operate.

We create a series by calling its new() method and pushing the new object into chart’s series list:

TypeScript

let polygonSeries = chart.series.push(
  am5map.MapPolygonSeries.new(root, {
    geoJSON: am5geodata_worldLow
  })
);

JavaScript

var polygonSeries = chart.series.push(
  am5map.MapPolygonSeries.new(root, {
    geoJSON: am5geodata_worldLow
  })
);

Note

A MapPolygonSeries requires its geoJSON setting to bet set to a geodata of a particular map we need to show, but we’ll get to that later.

Available series types

Map chart supports these types of series:

Class	Comment
MapPolygonSeries	Used to display shapes of countries and other regions (polygons).	More info
MapLineSeries	Used to draw lines on the map.	More info
MapPointSeries	Used to put markers on the map.	More info
ClusteredPointSeries	Markers that group into clusters when close together.	More info
MapSankeySeries	Flows between places, with width showing the amount.	More info
PixelMapSeries	Map polygons drawn as a grid of pixels (squares, circles, diamonds, or hexagons).	More info
MapRasterSeries	A whole-world image, such as a satellite photo, fitted to the map.	More info
NightSeries	Shades the part of the map where it is night, and shows the sun.	More info
GraticuleSeries	Used to display a map grid.	More info

For most of the map chart setups, it will require at least one polygon series to make sense. A map that only needs to show the Earth itself can use a raster series instead.

Projections

Setting a projection

There’s a lot of ways to translate spherical surface of a planet into a flat map. In cartography those are called projections.

To specify which projection to use, set chart’s projection setting:

TypeScript

let chart = root.container.children.push(
  am5map.MapChart.new(root, {
    projection: am5map.geoMercator()
  })
);

JavaScript

var chart = root.container.children.push(
  am5map.MapChart.new(root, {
    projection: am5map.geoMercator()
  })
);

Built-in projections

Map chart supports a number of built-in projections:

Projection	Function name	Sample

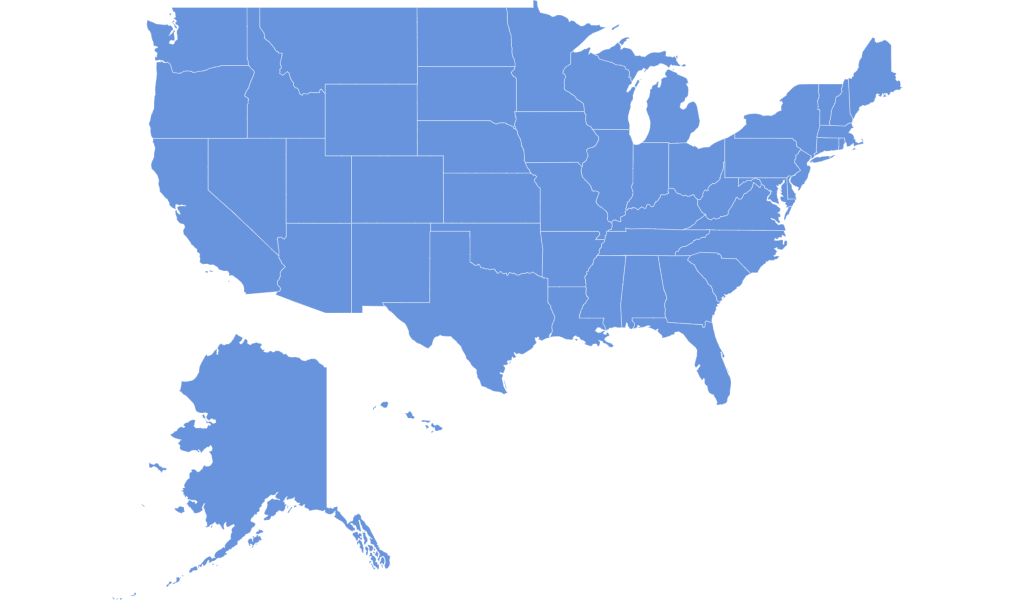

Albers USA (only suitable for U.S. maps)	am5map.geoAlbersUsa()

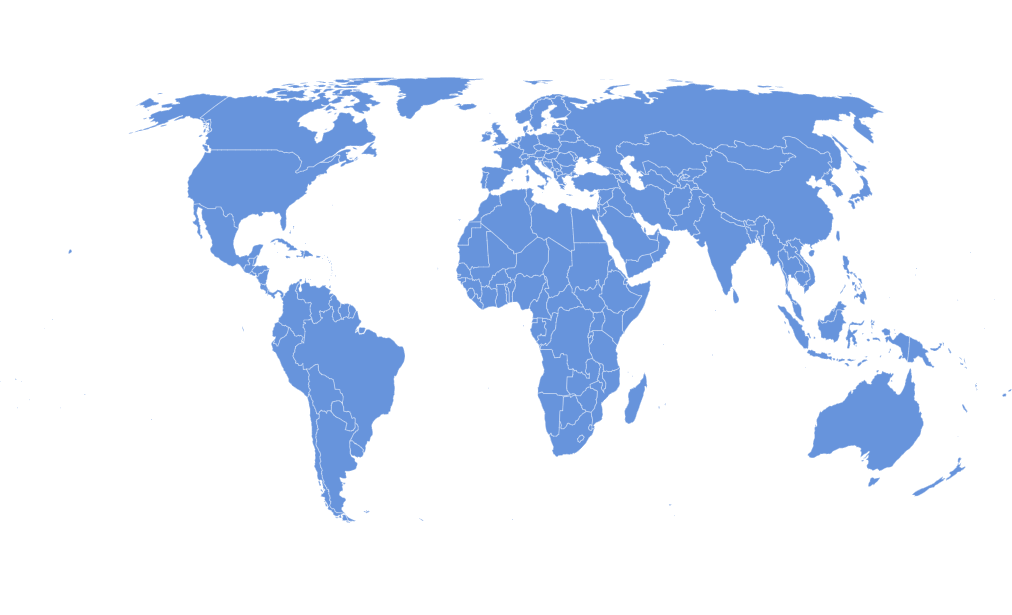

Equal Earth	am5map.geoEqualEarth()

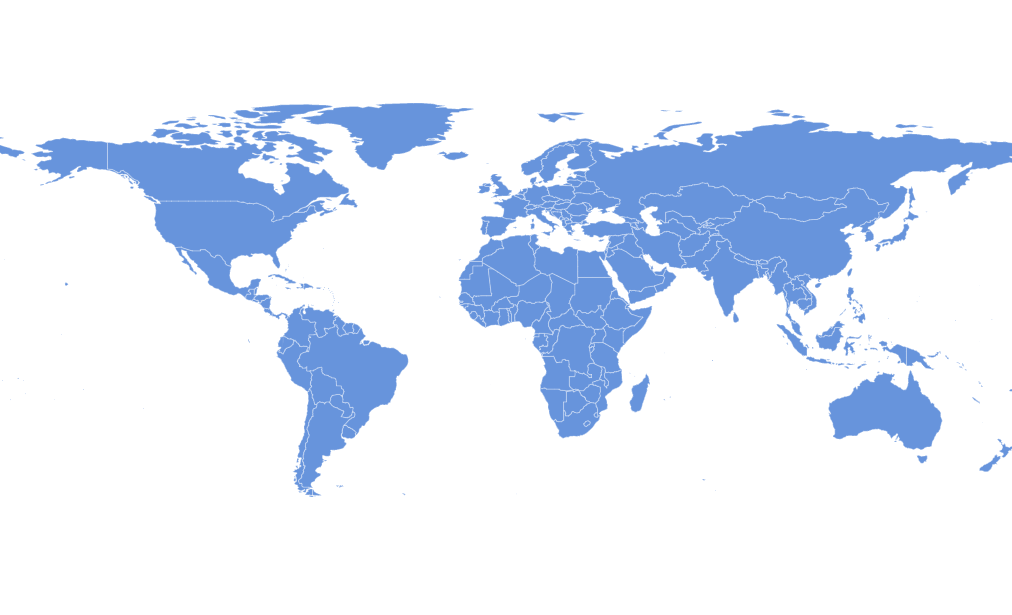

Equirectangular	am5map.geoEquirectangular()

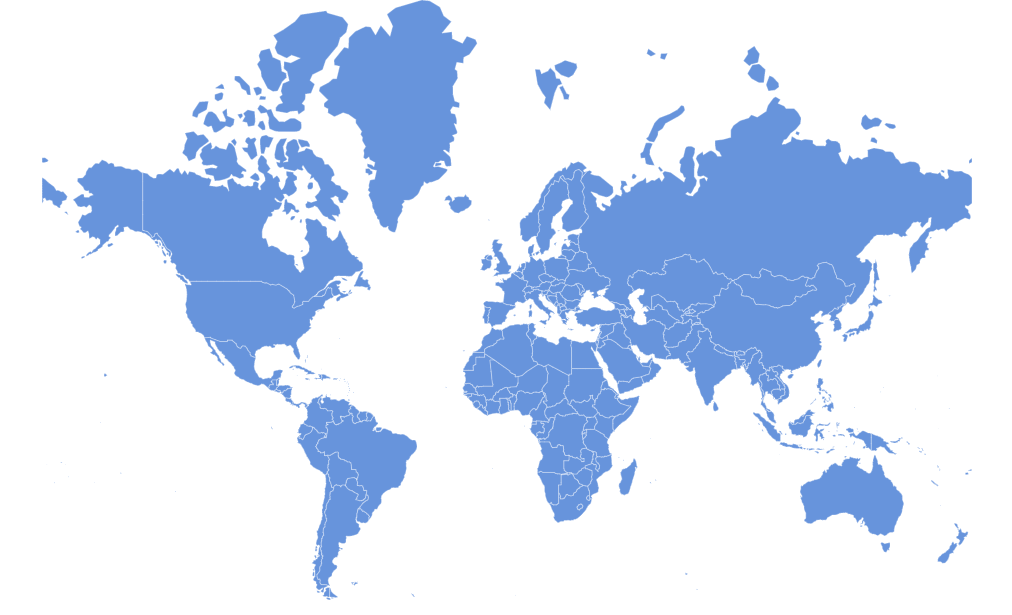

Mercator (default)	am5map.geoMercator()

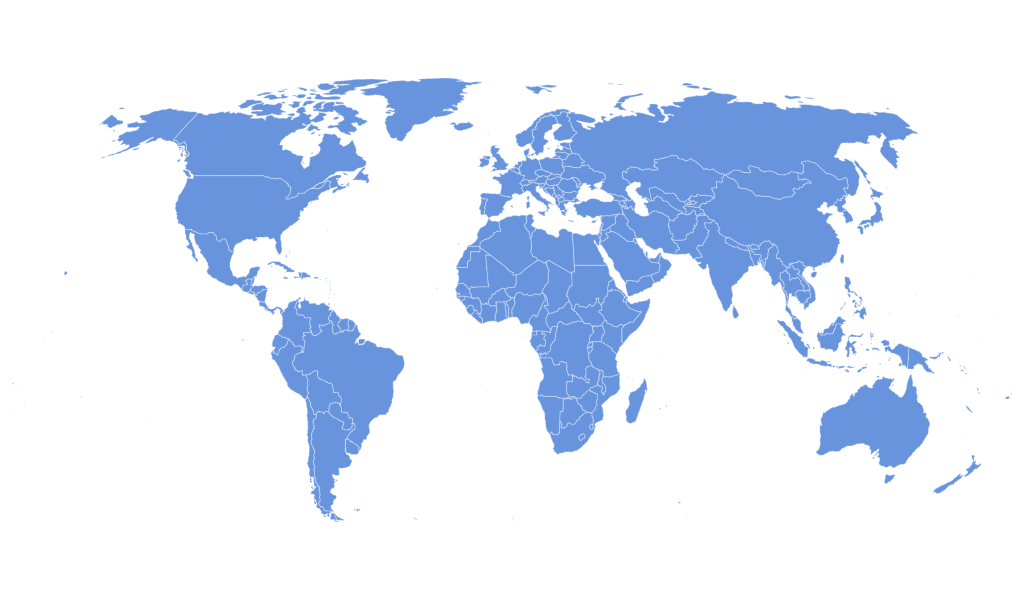

Natural Earth 1	am5map.geoNaturalEarth1()

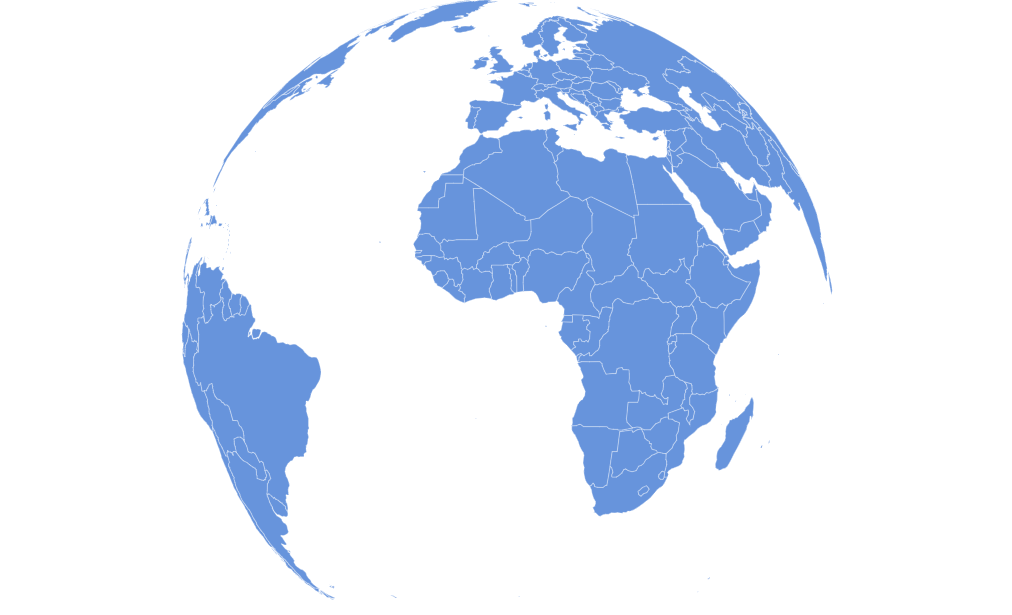

Orthographic (globe)	am5map.geoOrthographic()

Using D3 projections

There are more projections available than the list above.

Map chart supports projections from the d3-geo-projection library.

Since those are not bundled with amCharts, you may need to load load them as modules from d3-geo-projection NPM package or compiled JS binaries from some CDN:

TypeScript

import {geoAitoff} from "d3-geo-projection@4";

JavaScript

<script src="https://cdn.jsdelivr.net/npm/d3-array@3"></script>
<script src="https://cdn.jsdelivr.net/npm/d3-geo@3"></script>
<script src="https://cdn.jsdelivr.net/npm/d3-geo-projection@4"></script>

Then it’s just as easy as setting projection on a MapChart:

TypeScript

let chart = root.container.children.push(
  am5map.MapChart.new(root, {
    projection: geoAitoff
  })
);

JavaScript

var chart = root.container.children.push(
  am5map.MapChart.new(root, {
    projection: d3.geoAitoff
  })
);

Open in CodePen

Panning

There is a number of options for us when it comes how map behaves when is dragged (either with mouse or by touch).

Those are controlled by map chart’s panX and panY settings. The former controls what happens when dragged horizontally, and the latter - vertically.

For example, we can set up the map to rotate endlessly horizontally using panX: "rotateX":

TypeScript

let chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "rotateX"
  })
);

JavaScript

var chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "rotateX"
  })
);

For more information, refer to “Panning and zooming the map” tutorial.

Zooming

Zooming of the map can be done in a number of ways: zoom control, mouse wheel or pinch gestures, clicking on polygons, API, or custom events.

For more information, refer to “Panning and zooming the map” tutorial.

Centering the map

The map will center itself in the coordinate between its boundaries. On a world map that is usually zero coordinate: 0 latitude / 0 longitude.

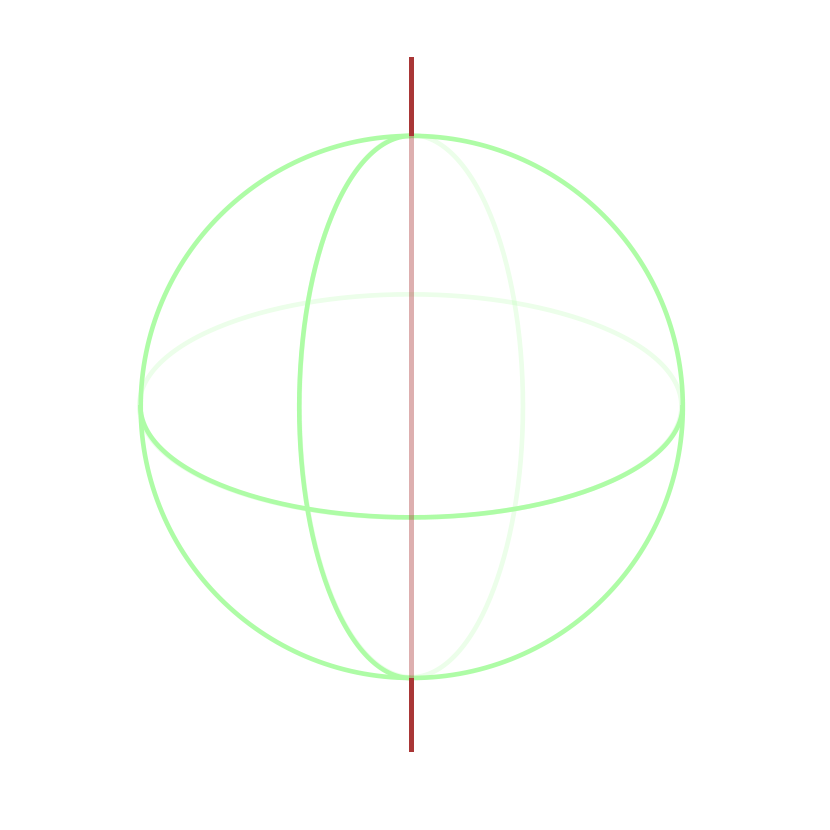

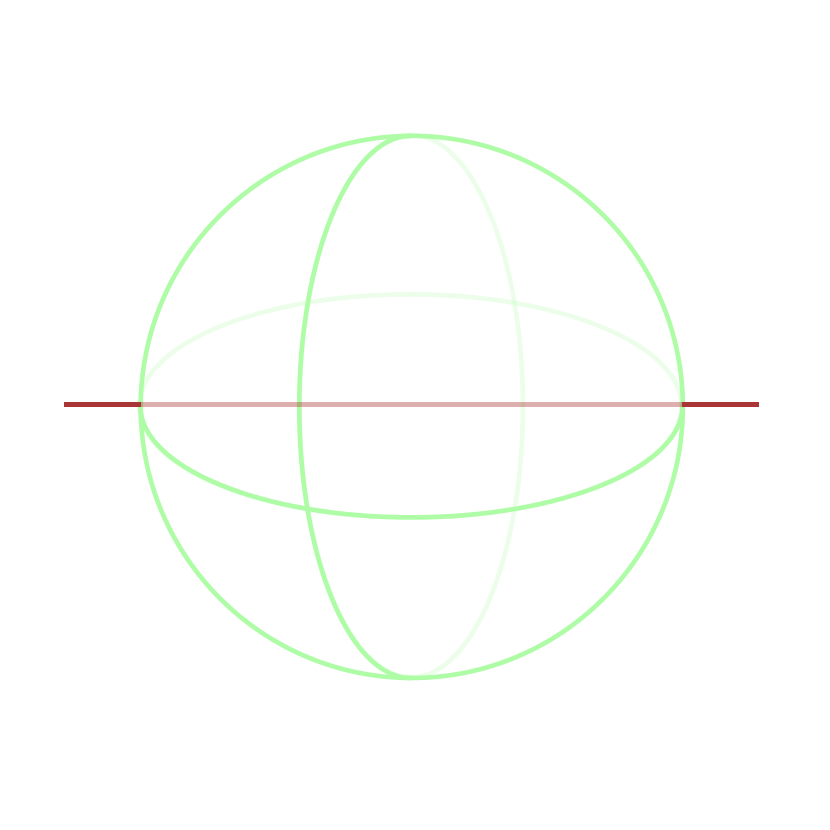

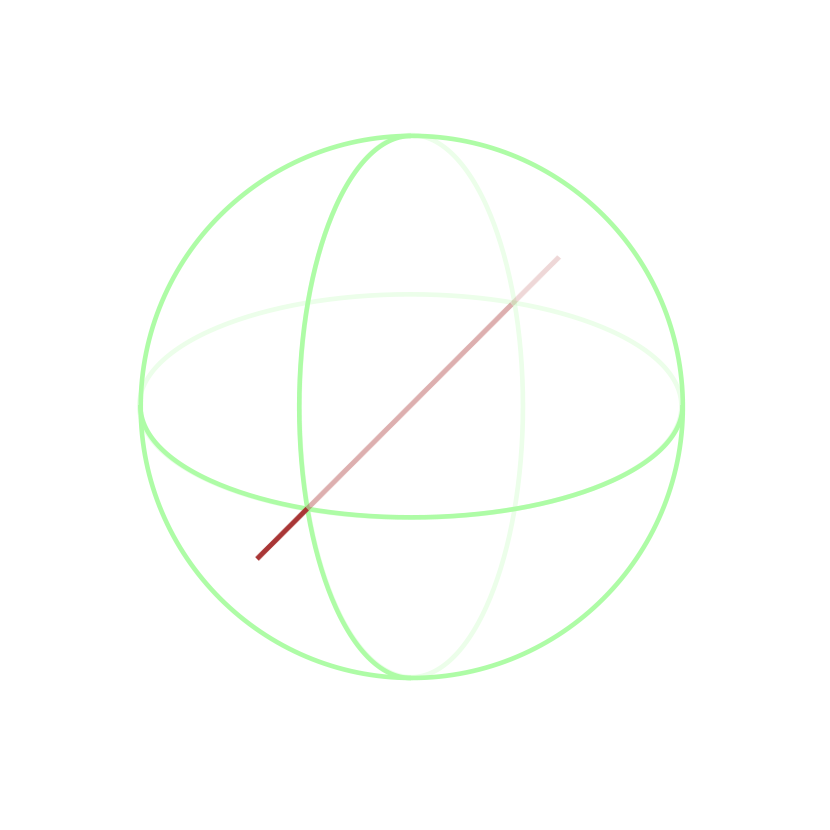

We can re-center the map using its rotationX (longitude), rotationY (latitude), and/or rotationZ (Z axis).

They are numeric settings to shift map center by certain amount of degrees.

To have a map centered on a Pacific ocean, we could do this:

TypeScript

let chart = root.container.children.push(
  am5map.MapChart.new(root, {
    rotationX: -160
  })
);

JavaScript

var chart = root.container.children.push(
  am5map.MapChart.new(root, {
    rotationX: -160
  })
);

Complete example

TypeScript

import * as am5 from "@amcharts/amcharts5";
import * as am5map from "@amcharts/amcharts5/map";
import am5geodata_worldLow from "@amcharts/amcharts5-geodata/worldLow";

// Create root and chart
let root = am5.Root.new("chartdiv");
let chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "rotateX",
    projection: am5map.geoNaturalEarth1()
  })
);

// Create polygon series
let polygonSeries = chart.series.push(
  am5map.MapPolygonSeries.new(root, {
    geoJSON: am5geodata_worldLow,
    exclude: ["AQ"]
  })
);

JavaScript

<script src="https://cdn.amcharts.com/lib/5/index.js"></script>
<script src="https://cdn.amcharts.com/lib/5/map.js"></script>
<script src="https://cdn.amcharts.com/lib/5/geodata/worldLow.js"></script>

<div id="chartdiv"></div>

<script>
// Create root and chart
var root = am5.Root.new("chartdiv");
var chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "rotateX",
    projection: am5map.geoNaturalEarth1()
  })
);

// Create polygon series
var polygonSeries = chart.series.push(
  am5map.MapPolygonSeries.new(root, {
    geoJSON: am5geodata_worldLow,
    exclude: ["AQ"]
  })
);
</script>

Open in CodePen

Map background

There are a couple of ways to attach a background (water fill) for the map.

Both of them are described in “Map polygon series: Background polygon” tutorial.

Heat maps

It’s possible to create heat maps (choropleth) maps using heat rules.

For detailed instructions and live samples, make sure to check “Heat rules” tutorial.

Additional controls

Zoom control

Map chart supports built-in control that adds zooming chart via handy buttons.

To add it, simply instantiate a ZoomControl and set it to map chart’s zoomControl setting.

TypeScript

chart.set("zoomControl", am5map.ZoomControl.new(root, {}));

JavaScript

chart.set("zoomControl", am5map.ZoomControl.new(root, {}));

For more information, refer to “Panning and zooming the map: Zoom control” tutorial.
