amCharts 5

Map line series

Map line series are used to plot projected lines on the map.

Adding series

Section titled “Adding series”

To create a map line series we need to call its new() method and push the new object into chart’s series list:

let lineSeries = chart.series.push(
  am5map.MapLineSeries.new(root, {
    // ...
  })
);

Configuring lines

Section titled “Configuring lines”

Appearance

Section titled “Appearance”

Lines are configured using series’ mapLines.template, which can be used to set any MapLine setting.

lineSeries.mapLines.template.setAll({
  stroke: am5.color(0xff0000),
  strokeWidth: 2,
  strokeOpacity: 0.5
});

Line color can also be set directly via polygon series’ setting stroke:

let lineSeries = chart.series.push(
  am5map.MapLineSeries.new(root, {
    stroke: am5.color(0x22ff55)
  })
);

Curved or straight

Section titled “Curved or straight”

Lines between two points will follow shortest distance, meaning that it will most probably look curved, based on the projection of the map.

This can be configured using lineType setting of the series.

There are two options:

  • "curved" (default) - follows shortest distance. Can cross -180/180 longitude.

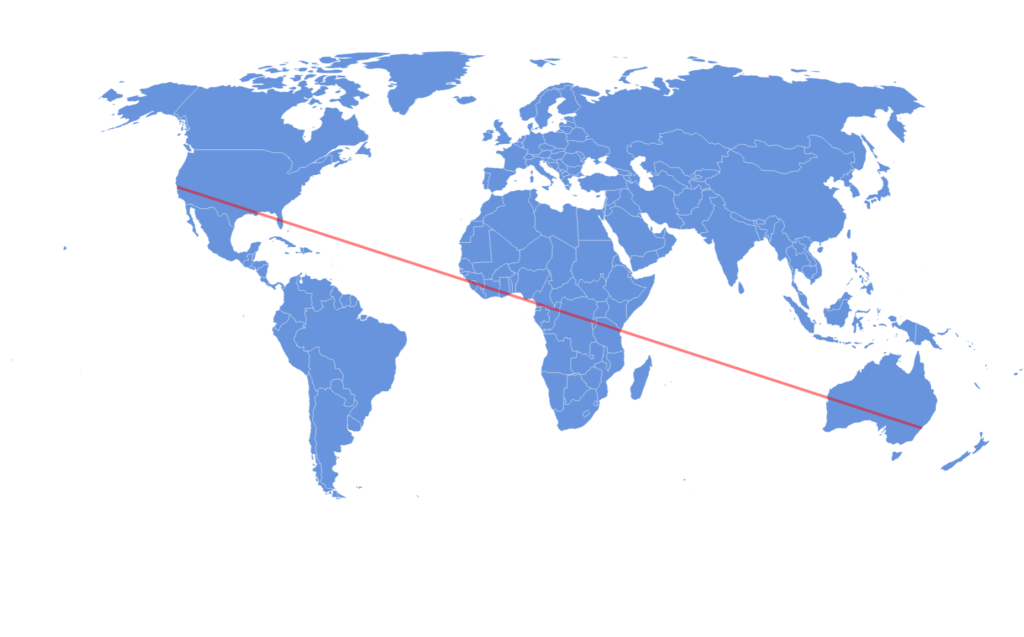

  • "straight" - will connect two points with a visually straight line. Will not cross -180/180 longitude.
let lineSeries = chart.series.push(
  am5map.MapLineSeries.new(root, {
    lineType: "straight"
  })
);

Altitude

Section titled “Altitude”

Lines can be raised above the ground, so they arc like a flight path or a trajectory. The altitude setting of a line sets how high, in metres, each leg of the line (from one point to the next) rises in its middle. Each leg lands on its points at both ends.

lineSeries.mapLines.template.setAll({
  altitude: 800000
});

For scale: 400000 is about the height of the International Space Station. On a globe, lines rise away from its surface. On flat maps they rise up the screen.

Once altitude is set (even to 0), the ends of each leg are placed at the height of the points they connect: the altitude of points in pointsToConnect, or the third value of the coordinates in geometry (in metres, as in GeoJSON). Lines without altitude stay on the ground, whatever their coordinates hold.

To give each line its own height, set it via data using template fields:

lineSeries.mapLines.template.set("templateField", "lineSettings");


lineSeries.data.setAll([{
  geometry: {
    type: "LineString",
    coordinates: [
      [ -73.778137, 40.641312 ],
      [ -0.454296, 51.470020 ]
    ]
  },
  lineSettings: {
    altitude: 500000
  }
}, {
  geometry: {
    type: "LineString",
    coordinates: [
      [ -0.454296, 51.470020 ],
      [ 116.597504, 40.072498 ]
    ]
  },
  lineSettings: {
    altitude: 1200000
  }
}]);
Open in CodePen

Data

Section titled “Data”

There is a number of ways to add data to series. Let’s explore them.

GeoJSON

Section titled “GeoJSON”

Line series accepts data in GeoJSON format. It will pick out features of type LineString and MultiLineString.

Here’s an example of a simple GeoJSON data, depicting flight route: JFK > Heathrow > Beijing.

GeoJSON
{
  "type": "FeatureCollection",
  "features": [{
    "type": "Feature",
    "properties": {
    },
    "geometry": {
      "type": "LineString",
      "coordinates": [
        [ -73.778137, 40.641312 ],
        [ -0.454296, 51.470020 ],
        [ 116.597504, 40.072498 ]
      ]
    }
  }]
}

We can set such data directly to series geoJSON property:

let routes = {
  "type": "FeatureCollection",
  "features": [{
    "type": "Feature",
    "properties": {
    },
    "geometry": {
      "type": "LineString",
      "coordinates": [
        [ -73.778137, 40.641312 ],
        [ -0.454296, 51.470020 ],
        [ 116.597504, 40.072498 ]
      ]
    }
  }]
};


// Create line series
let lineSeries = chart.series.push(
  am5map.MapLineSeries.new(root, {
    geoJSON: routes
  })
);
Open in CodePen

Plain data

Section titled “Plain data”

Another way to set data is via series data interface.

Each item in data needs to have at least geometry key in it, that identifies line points. Basically, it’s a subset of a GeoJSON format:

lineSeries.data.setAll([{
  "geometry": {
    "type": "LineString",
    "coordinates": [
      [ -73.778137, 40.641312 ],
      [ -0.454296, 51.470020 ],
      [ 116.597504, 40.072498 ]
    ]
  }
}]);
Open in CodePen

Individual data items

Section titled “Individual data items”

We can also use series pushDataItem() method to add data lines one-by-one.

The parameter is an object that adheres to IMapLineSeriesDataItem interface.

lineSeries.pushDataItem({
  geometry: {
    type: "LineString",
    coordinates: [
      [ -73.778137, 40.641312 ],
      [ -0.454296, 51.470020 ],
      [ 116.597504, 40.072498 ]
    ]
  }
});
Open in CodePen

Or, if we have a map line series with points we’d like to connect, we can use pointsToConnect instead of geometry. See “Connecting line series points” section of this tutorial for further info.

Relation to point series

Section titled “Relation to point series”

Connecting line series points

Section titled “Connecting line series points”

We can use actual data items from a map point series as points for the line.

This eliminates the need to define geometry for our lines, as we can use pointsToConnect setting instead, which is an array of map line series’ data items:

// Create point series
let pointSeries = chart.series.push(
  am5map.MapPointSeries.new(root, {})
);


let nyc = pointSeries.pushDataItem({ latitude: 40.641312, longitude: -73.778137 });
let london = pointSeries.pushDataItem({ latitude: 51.470020, longitude: -0.454296 });
let beijing = pointSeries.pushDataItem({ latitude: 40.072498, longitude: 116.597504 });


// Create line series
let lineSeries = chart.series.push(
  am5map.MapLineSeries.new(root, {})
);


lineSeries.pushDataItem({
  pointsToConnect: [nyc, london, beijing]
});
Open in CodePen

Points on a line

Section titled “Points on a line”

This can also work the other way around: we can make a data item form map line series “stick” to any point on a line.

All we have to do is to set lineDataItem to a data item of the specific line, as well as positionOnLine to indicate relative position, when creating a point series data item:

// Create line series
let lineSeries = chart.series.push(
  am5map.MapLineSeries.new(root, {})
);


let route = lineSeries.pushDataItem({
  geometry: {
    type: "LineString",
    coordinates: [
      [ -73.778137, 40.641312 ],
      [ -0.454296, 51.470020 ],
      [ 116.597504, 40.072498 ]
    ]
  }
});


// Create point series
let pointSeries = chart.series.push(
  am5map.MapPointSeries.new(root, {})
);


pointSeries.bullets.push(function() {
  return am5.Bullet.new(root, {
    sprite: am5.Circle.new(root, {
      radius: 5,
      fill: am5.color(0xff0000)
    })
  });
});


let plane = pointSeries.pushDataItem({
  lineDataItem: route,
  positionOnLine: 0.7,
  autoRotate: true
});

Let’s examine the code above.

The pointSeries.pushDataItem() creates a new point in point (item) series. Normally it would contain a latitude/longitude information, but since we’re sticking it to a line, we use different settings:

Setting key Comment
lineDataItem A data item from map line series. Created with pushDataItem() on a line series, or extracted from series dataItems.
positionOnLine Relative position on the line. 0 (zero) means the beginning, and 1 (one) the end. Any intermediate number will indicate relative position along the whole line.
In case the line is multi-segmented, the position is calculated from the beginning of the first segment to the end of the last one.
autoRotate If set to true, point bullet will be automatically rotated to the angle of the exact point in line.
autoRotateAngle If set, this will be added to the angle calculated by autoRotate. Can be used to reverse the direction.

If the line has an altitude, the point rides along the arc at the line’s height.

The below example uses above code, albeit with the slightly more sophisticated image as a point bullet:

Open in CodePen
