Styling or removing tooltip shadow

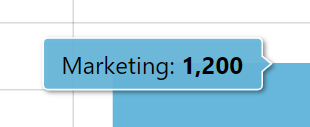

Most of the elements on charts can display a tooltip when hovered. By default, a tooltip will cast a slight shadow behind it. This tutorial will explain on how to style it, or get rid of it altogether.

Accessing tooltip

Before we can start, let’s see how we can access the tooltip, that is Tooltip object that represents it.

Each object has a property: tooltip. You can access tooltips of basic objects directly.

Some objects, like series and elements within series share a single Tooltip object, which is accessible “centrally”, e.g. series.tooltip.

Shadow is a filter

A shadow you see under a tooltip is actually a DropShadowFilter. For more information about how filters work, read here.

Important thing to know, is that this filter is not applied directly to the Tooltip object, but rather to its background object.

So, if we want to access current filters, we go deep, e.g.: series.tooltip.background.filters.

Modifying shadow

Normally, a shadow filter is the first (and only) filter applied to tooltip’s background. So, if we want to modify it, we just need to fish it out and set its properties.

TypeScript

let shadow = series.tooltip.background.filters.getIndex(0);shadow.dx = 10;shadow.dy = 10;shadow.blur = 5;shadow.color = am4core.color("#f55");

JavaScript

var shadow = series.tooltip.background.filters.getIndex(0);shadow.dx = 10;shadow.dy = 10;shadow.blur = 5;shadow.color = am4core.color("#f55");

JSON

{  // ...  "series": [{    // ...    "tooltip": {      "background": {        "filters": [{          "dx": 10,          "dy": 10,          "blur": 5,          "color": "#f55"        }]      }    }  }]}

•
•

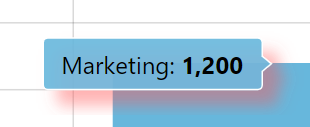

Here’s the above in live action:

Open in CodePen

Disabling shadow

Disabling shadow is even easier. We just need to remove it from the filters list:

TypeScript

series.tooltip.background.filters.clear();

JavaScript

series.tooltip.background.filters.clear();

JSON

{  // ...  "series": [{    // ...    "tooltip": {      "background": {        "filters": [{          "opacity": 0        }]      }    }  }]}

Open in CodePen
