Using "sticky" tooltips

Any element on a chart can have tooltipText set to display in form of a tooltip when hovered or touched. This tutorial will show how you can turn those tooltips into “sticky”, so they are always shown, without requiring to hover/touch the element.

Requirements

The functionality was introduced in version 4.5.4, so if you happen to be using some older version, you’ll need to upgrade.

Enabling sticky tooltip

Single element

To make an element display its tooltip permanently, we use its showTooltipOn property. To make tooltip always be shown, set it to "always".

The following will create a simple circle with it’s tooltip always visible:

TypeScript

let circle = chart.createChild(am4core.Circle);
circle.radius = 50;
circle.fill = am4core.color("#c00");
circle.align = "center";
circle.valign = "middle";
circle.tooltipText = "Hi, I'm Mr. Circle.";
circle.showTooltipOn = "always";

JavaScript

var circle = chart.createChild(am4core.Circle);
circle.radius = 50;
circle.fill = am4core.color("#c00");
circle.align = "center";
circle.valign = "middle";
circle.tooltipText = "Hi, I'm Mr. Circle.";
circle.showTooltipOn = "always";

JSON

{
  // ...
  "children": [{
    "type": "Circle",
    "radius": 50,
    "fill": "#c00",
    "align": "center",
    "valign": "middle",
    "tooltipText": "Hi, I'm Mr. Circle.",
    "showTooltipOn": "always"
  }]
}

Open in CodePen

Template

However, most of the time we won’t be using it on a single element, but rather on all items of, say, Series.

In this case we can set it on list template, which will propagate it all elements.

For example, let’s enable sticky tooltips on all columns of a ColumnSeries:

TypeScript

series.columns.template.tooltipText = "{categoryX}\n[bold]{valueY}[/]";
series.columns.template.showTooltipOn = "always";

JavaScript

series.columns.template.tooltipText = "{categoryX}\n[bold]{valueY}[/]";
series.columns.template.showTooltipOn = "always";

JSON

{
  // ...
  "series": [{
    "type": "ColumnSeries",
    // ...
    "columns": {
      "tooltipText": "{categoryX}\n[bold]{valueY}[/]",
      "showTooltipOn": "always"
    }
  }]
}

Open in CodePen

Position and orientation

Tooltip positioning is bound to a certain logic in amCharts 4.

For series, it usually is placed to the side. It also depends on vertical and horizontal position.

For sticky tooltips that might not work, and we might want to micro-manage tooltip positions and orientation.

Orientation

For that we can use Tooltip property pointerOrientation.

Let’s make our tooltips always stick upwards instead of to the side:

TypeScript

series.tooltip.pointerOrientation = "down";

JavaScript

series.tooltip.pointerOrientation = "down";

JSON

{
  // ...
  "series": [{
    "type": "ColumnSeries",
    // ...
    "tooltip": {
      "pointerOrientation": "down"
    }
  }]
}

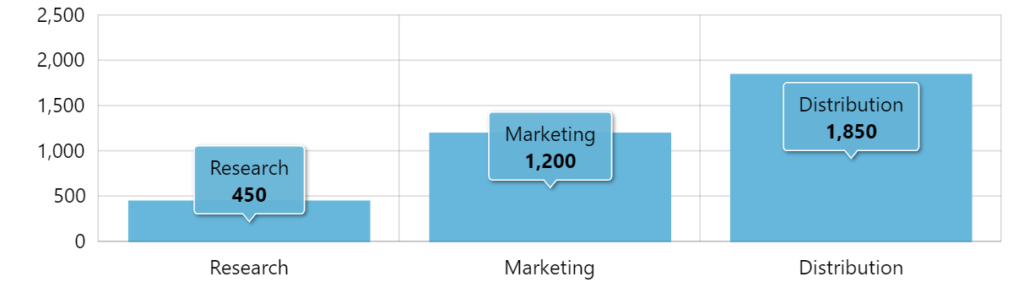

pointerOrientation is set to 'down'

Position

Positioning within target element

You can see that the tooltip is now pointing to the center of each column.

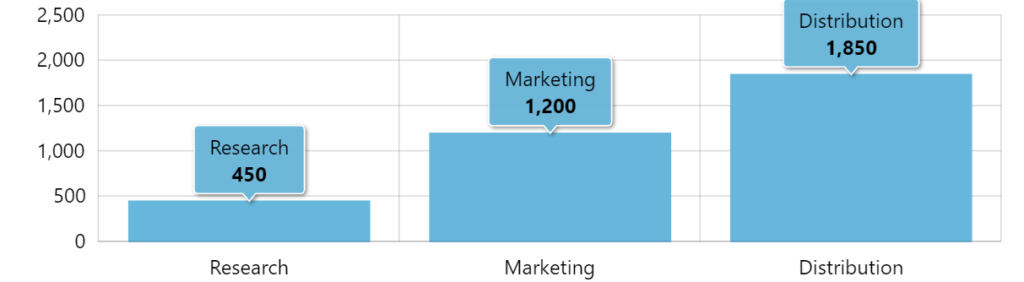

Let’s make them point to the top.

For that we do have a handy properties like tooltipX and tooltipY, which indicate the relative position within element where tooltip should point to horizontally and vertically.

We want to position the tooltip on the very top of the column, which means we need to set tooltipY to zero.

TypeScript

series.columns.template.tooltipY = 0;

JavaScript

series.columns.template.tooltipY = 0;

JSON

{
  // ...
  "series": [{
    "type": "ColumnSeries",
    // ...
    "columns": {
      // ...
      "tooltipY": 0
    }
  }]
}

tooltipY = 0

Micro-adjusting position

If we want, we can micro-adjust the position using tooltip’s dx and dy, which move element by X pixels horizontally or vertically respectively.

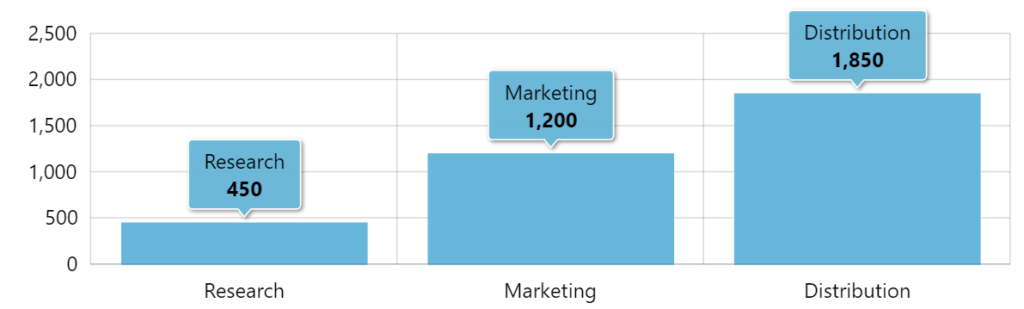

Let’s move the tooltip a few pixels up.

TypeScript

series.tooltip.dy = -5;

JavaScript

series.tooltip.dy = -5;

JSON

{
  // ...
  "series": [{
    "type": "ColumnSeries",
    // ...
    "tooltip": {
      // ...
      "dy": -5
    }
  }]
}

dy = -5

Selective sticky tooltips

Sometimes we won’t want to show tooltips for all items in the series.

Let’s say we want to show a tooltip for the first and last item.

That’s where “property fields” come into play.

Property fields allow overriding virtually any property of an item in series with a value from data. The properties like showTooltipOn, pointerOrientation, and dy are no exception.

TypeScript

bullet.propertyFields.showTooltipOn = "showTooltip";
series.tooltip.propertyFields.pointerOrientation = "orientation";
series.tooltip.propertyFields.dy = "offset";

JavaScript

bullet.propertyFields.showTooltipOn = "showTooltip";
series.tooltip.propertyFields.pointerOrientation = "orientation";
series.tooltip.propertyFields.dy = "offset";

JSON

{
  // ...
  "series": [{
    "type": "ColumnSeries",
    // ...
    "bullets": [{
      // ...
      "propertyFields": {
        "showTooltipOn": "showTooltip"
      }
    }],
    "tooltip": {
      // ...
      "propertyFields": {
        "pointerOrientation": "orientation",
        "dy": "offset"
      }
    }
  }]
}

The above means that for each and every item, the chart will look for values keys showTooltip, orientation, and offset in data context of the data item, to override default settings for properties showTooltipOn, pointerOrientation, and dy respectively.

Open in CodePen

Deprecation notice

If you were using alwaysShowTooltip = true property before, make sure you update your code to use showTooltipOn = "always" instead. The former method is being deprecated in favor of the latter, which is more flexible.
