Using PDF export fonts

Exporting a chart with related textual information to PDF will not work properly if you have a non-Latin language. This tutorial will show how to overcome this.

The problem

When exporting charts to PDF, the resulting document can contain not just image of chart snapshot, but also textual information, like title, data table, and virtually any custom text.

The default font bundled with amCharts 4 that is used in the PDFs, contains only characters for Latin-based languages.

Should you try to export text in any some other charset, like Chinese, Japanese, or Korean, you’d get garbage characters instead of real symbols.

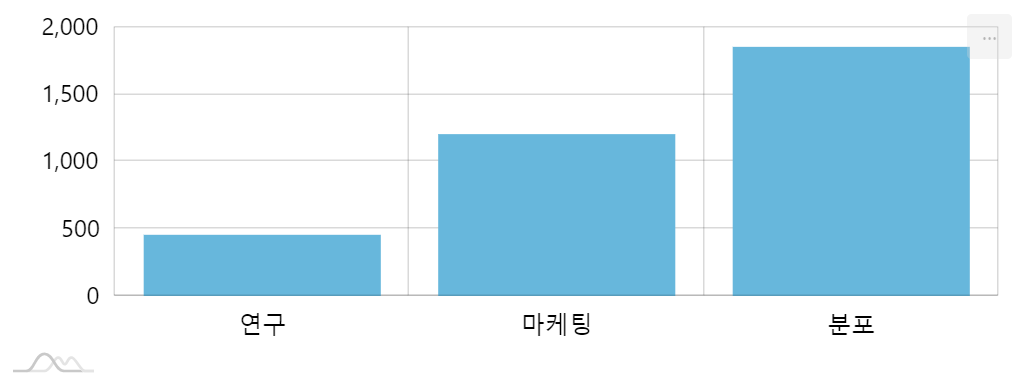

Consider this chart:

It has Korean category names. We also want to add a title and chart data into resulting PDF:

TypeScript

let pdf = chart.exporting.formatOptions.getKey("pdf");
chart.exporting.title = "예산 2020";
pdf.addData = true;
pdf.addURL = false;

JavaScript

var pdf = chart.exporting.formatOptions.getKey("pdf");
chart.exporting.title = "예산 2020";
pdf.addData = true;
pdf.addURL = false;

JSON

{
  // ...
  "exporting": {
    // ...
    "formatOptions": {
      "pdf": {
        "addData": true,
        "addURL": false
      }
    }
  }
}

If we export it now, we’d get something like this:

Not quite what we've expected

The solution

That’s where PDF export setting font and amcharts4-fonts package come in.

The latter, is a downloadable/installable collection of font files for different languages. The former is a way to specify which font out of the font package to use for PDFs.

Loading a font

amCharts 4 has a separate repository/package/archive that holds fonts for a variety of languages.

Depending on what type of setup you have you may need to acquire it from a different source.

NPM package

To get all available fonts, install the @amcharts/amcharts4-fonts package:

npm install @amcharts/amcharts4-fonts

Then you can access each specific font as a module:

import am4fonts_notosans_kr from "@amchats/amcharts4-fonts/notosans-kr";

JavaScript script

Font files are provided in plain JS files that you can load using <script> tags:

<script src="https://cdn.amcharts.com/lib/4/fonts/notosans-kr.js"></script>

The file will create a global variable am4fonts_notosans_kr which you can use later in the code.

List of available fonts

Font	Language	Global variable
Cairo	Arabic	am4fonts_cairo_arabic
NotoSans JP	Japanese	am4fonts_notosans_jp
NotoSans KR	Korean	am4fonts_notosans_kr
NotoSans SC	Simplified Chinese	am4fonts_notosans_sc
NotoSans TC	Traditional Chinese	am4fonts_notosans_tc
OpenSans	Cyrilic	am4fonts_pensans_cyrilic
Rubik	Hebrew	am4fonts_rubik_hebrew
Sarabun	Thai	am4fonts_sarabun_thai

Using loaded font

Now that we have our font loaded, we need to instruct our export to use that font.

To do that, we’ll use PDF-specific setting font - for both “pdf” and “pdfdata” export formats:

TypeScript

let pdf = chart.exporting.formatOptions.getKey("pdf");
pdf.font = am4fonts_notosans_kr;

let pdfdata = chart.exporting.formatOptions.getKey("pdfdata");
pdfdata.font = am4fonts_notosans_kr;

JavaScript

var pdf = chart.exporting.formatOptions.getKey("pdf");
pdf.font = am4fonts_notosans_kr;

var pdfdata = chart.exporting.formatOptions.getKey("pdfdata");
pdfdata.font = am4fonts_notosans_kr;

JSON

{
  // ...
  "exporting": {
    // ...
    "formatOptions": {
      "pdf": {
        // ...
        "font": am4fonts_notosans_kr
      },
      "pdfdata": {
        // ...
        "font": am4fonts_notosans_kr
      }
    }
  }
}

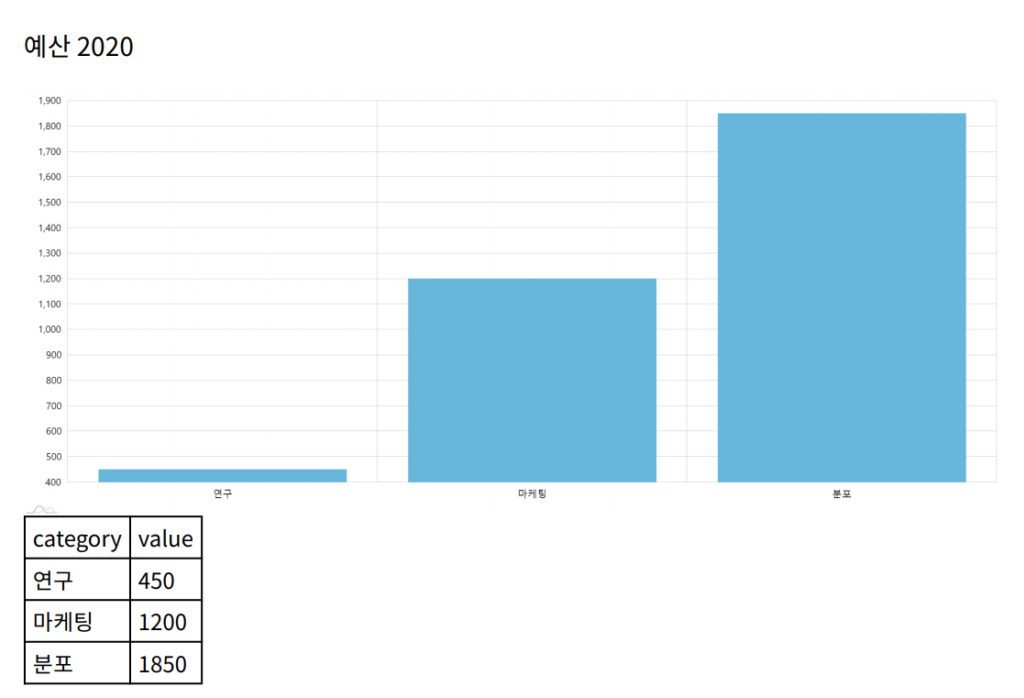

Now, let’s try exporting PDF again:

Much better

Example

Open in CodePen

Using multiple fonts

Information coming.

Creating your own fonts

Information coming.
