Fixing gradients and filters on straight lines

Due to how SVG handles filters and gradients if you have a perfectly straight line, e.g. on a LineSeries with some filter applied, say a DropShadowFilter or a LinearGradient, browser will cause it to render completely invisible. This short tutorial will show how to fix that.

The problem

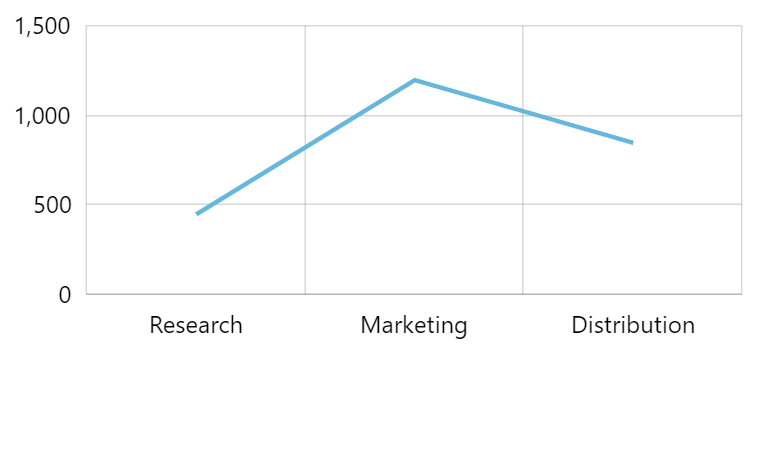

Let’s start with a very basic chart with a single LineSeries:

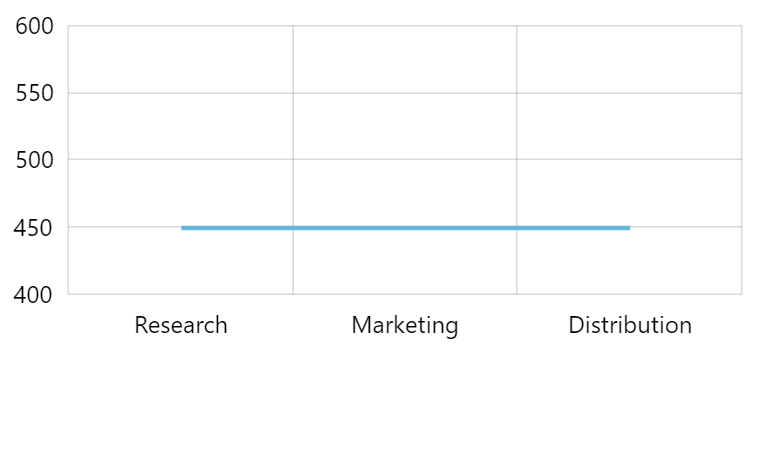

The two screenshots of the chart use the same LineSeries settings, but different data, with the second one resulting in a perfectly straight line.

Now, let’s try to add a shadow to our LineSeries and see what happens.

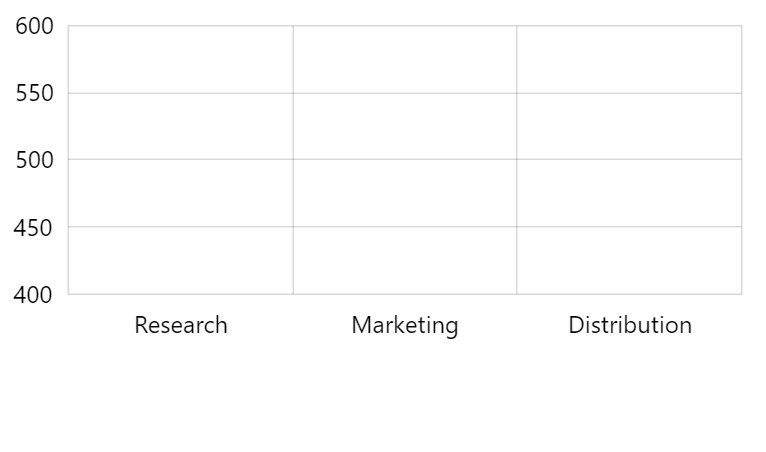

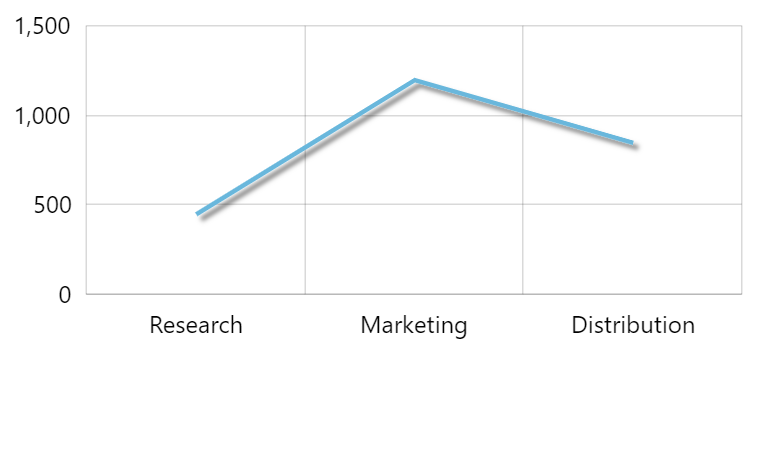

The first line is still there, with a nice shadow in tow, whereas the second one is gone completely.

This happens because rendering engine considers a perfectly straight line to have zero height, which in turn causes filter to misfire.

More info

For more technical dirt about filterUnits visit this Mozilla article.

Let’s see how we can fix that.

The solution

Fixing filters

Without delving into internals on how SVG rendering works, to fix it we just need to change filter units from default "objectBoundingBox" to "userSpaceOnUse".

This is done on a filter object:

TypeScript

let shadow = series.filters.push(new am4core.DropShadowFilter());
shadow.filterUnits = "userSpaceOnUse";

JavaScript

var shadow = series.filters.push(new am4core.DropShadowFilter());
shadow.filterUnits = "userSpaceOnUse";

JSON

{
  // ...
  "series": [{
    // ...
    "filters": [{
      "type": "DropShadowFilter",
      "filterUnits": "userSpaceOnUse"
    }]
  }]
}

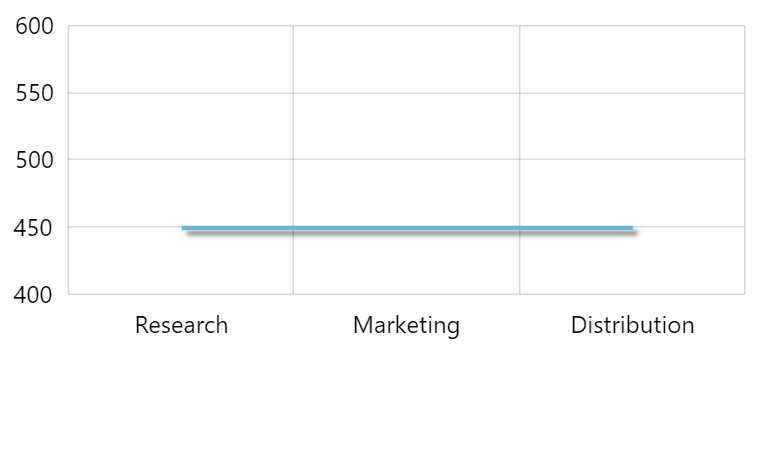

That should fix it:

And here’s a working example:

Open in CodePen

Fixing gradients

It works similarly on gradients as well. Except instead of setting filterUnits with set gradientUnits.

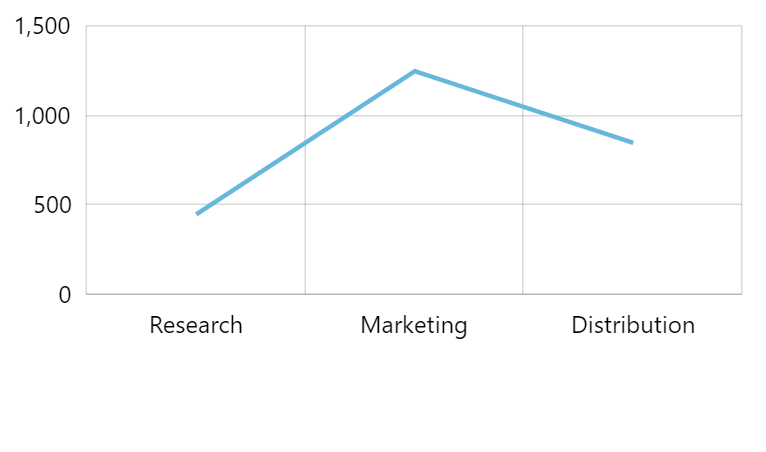

Let’s try this on a horizontal axis line this time:

TypeScript

let gradient = new am4core.LinearGradient();
gradient.addColor(am4core.color("red"));
gradient.addColor(am4core.color("black"));
gradient.gradientUnits = "userSpaceOnUse";
categoryAxis.renderer.line.strokeOpacity = 1;
categoryAxis.renderer.line.strokeWidth = 3;
categoryAxis.renderer.line.stroke = gradient;

JavaScript

var gradient = new am4core.LinearGradient();
gradient.addColor(am4core.color("red"));
gradient.addColor(am4core.color("black"));
gradient.gradientUnits = "userSpaceOnUse";
categoryAxis.renderer.line.strokeOpacity = 1;
categoryAxis.renderer.line.strokeWidth = 3;
categoryAxis.renderer.line.stroke = gradient;

JSON

{
  // ...
  "xAxes": [{
    // ...
    "renderer": {
      "line": {
        "strokeOpacity": 1,
        "strokeWidth": 3,
        "stroke": {
          "type": "LinearGradient",
          "gradientUnits": "userSpaceOnUse",
          "stops": [{
            "color": "red"
          }, {
            "color": "black"
          }]
        }
      }
    }
  }]
}

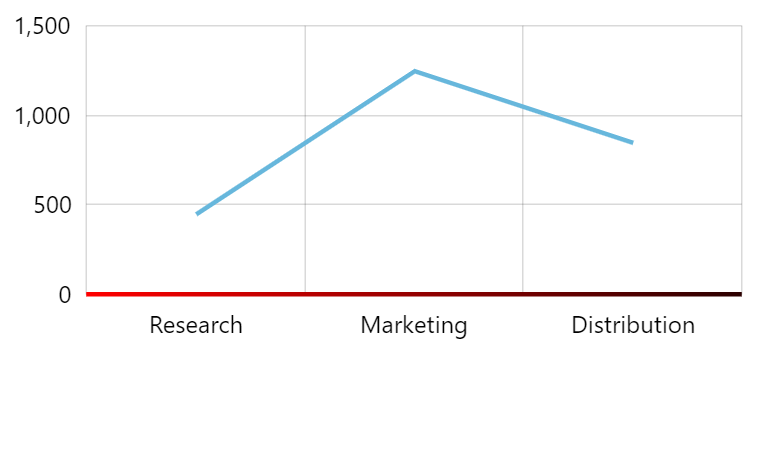

Live example:

Open in CodePen
