Custom ValueAxis grid using ranges

ValueAxis is a clever kid. It will try to space out its grid/labels in a way that they come in non-crowded “pretty” increments, e.g. in 10 incremental steps. But what if we want to show custom step increments, like every 25? This tutorial will explain how to do that.

•
•

The task

Here’s a very basic chart:

Open in CodePen

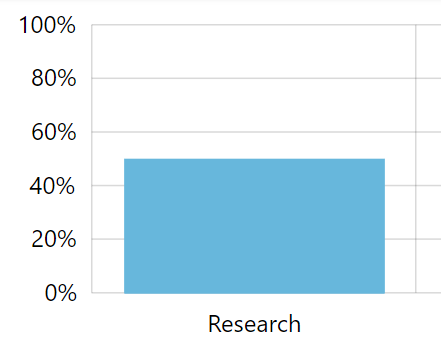

Given available height, the axis chose to display a label every 20, which is a multiple of 10.

We need to display a number every 25, or rather only numbers that are multiples of 25.

However, there’s no way to set such non-standard step for the axis.

Let’s see how we can work around that.

Using axis ranges

The only solution is this:

1. Disable axis labels and grid altogether.
2. Add axis ranges with labels at precisely the values we want them to appear.

Disabling grid and labels

To disable built-in grid lines and labels, we’ll access axis’ their respective templates:

TypeScript

valueAxis.renderer.grid.template.disabled = true;valueAxis.renderer.labels.template.disabled = true;

JavaScript

valueAxis.renderer.grid.template.disabled = true;valueAxis.renderer.labels.template.disabled = true;

JSON

{  // …  "yAxes": [{    // …    "renderer": {      "grid": {        "disabled" : true      },      "labels": {        "disabled" : true      }    }  }]}

Adding ranges

Axis ranges have multiple uses. For more information about them read here. However, for our purposes here, we are going to use their functionality as labelled guides only.

Since we don’t want to repeat the code multiple times, let’s build a function that creates those ranges:

TypeScript

function createGrid(value) {  let range = valueAxis.axisRanges.create();  range.value = value;  range.label.text = "{value}";}

JavaScript

function createGrid(value) {  var range = valueAxis.axisRanges.create();  range.value = value;  range.label.text = "{value}";}

JSON

function createGrid(value) {  return {    "value": value,    "label": {      "text": "{value}}    }  };}

Then we can just use it to create multiple ranges with simple one-liners:

TypeScript

createGrid(0);createGrid(25);createGrid(50);createGrid(75);createGrid(100);

JavaScript

createGrid(0);createGrid(25);createGrid(50);createGrid(75);createGrid(100);

JSON

{  // …  "yAxes": [{    // …    "axisRanges": [       createGrid(0),       createGrid(25),       createGrid(50),       createGrid(75),       createGrid(100)    ]  }]}

Example

Open in CodePen
