Clustered Pie Charts

This short tutorial will show how we can leverage amCharts 4 containers and automated layouts to display multiple Pie charts in a single <div>.

The challenge of multiple pie series

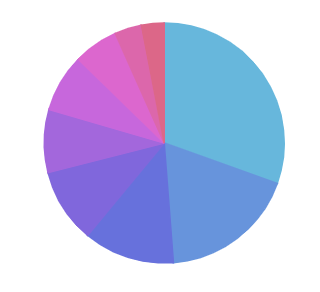

When we have a simple Pie chart, it’s easy. We just create a chart and get a pie.

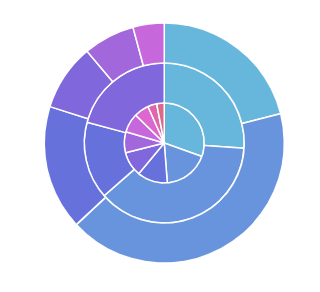

But what if we have several series of data to depict? We add several Pie series and create a “nested donut” chart.

Sure, it does display all the information, but is kinda cluttery and hard to understand.

We also have an option of creating three separate charts. However, in that case we will need to take care of layout and sizing of the HTML containers that house them.

There’s a fourth option, though.

Using amCharts containers

amCharts 4 has a powerful layouting mechanism built-in right into its core.

We can create a generic Container and just push any chart instances there. It will automatically take care of positioning and sizing of the charts.

// Create and configure the containerlet container = am4core.create("chartdiv", am4core.Container);container.width = am4core.percent(100);container.height = am4core.percent(100);container.layout = "horizontal";// Create the charts in itlet chart1 = container.createChild(am4charts.PieChart);// ...let chart2 = container.createChild(am4charts.PieChart);// ... let chart2 = container.createChild(am4charts.PieChart);// ...

TypeScript
JSON

// Create and configure the containervar container = am4core.create("chartdiv", am4core.Container);container.width = am4core.percent(100);container.height = am4core.percent(100);container.layout = "horizontal";// Create the charts in itvar chart1 = container.createChild(am4charts.PieChart);// ...var chart2 = container.createChild(am4charts.PieChart);// ... var chart2 = container.createChild(am4charts.PieChart);// ...

var container = am4core.createFromConfig({  "width": "100%",  "height": "100%",  "layout": "horizontal",  "children": [{    "type": "PieChart",    // ...  }, {    "type": "PieChart",    // ...  }, {    "type": "PieChart",    // ...  }]}, "chartdiv", am4core.Container);

Full demo

Open in CodePen

One more thing

Before you ask, yes you can create dashboards like that out of any chart type, not just Pie charts.
