Adaptive column corner rounding for positive and negative values

This tutorial will show how we can use adapters to selectively apply rounding to columns of the ColumnSeries based on their value.

The problem

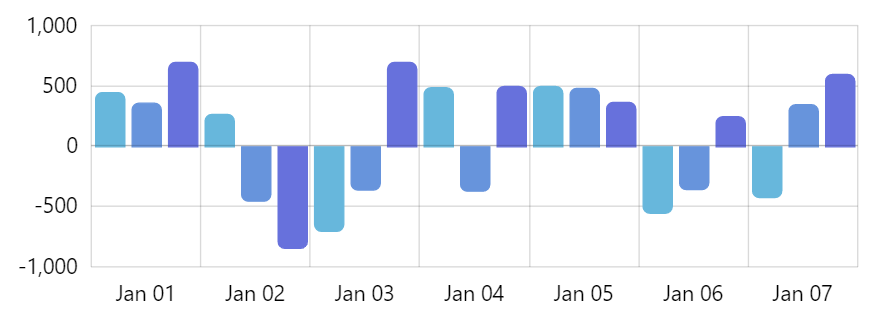

Suppose we have this chart:

We want to round the corners of the tips of those columns.

The properties for columns that are responsible for rounding of top corners are cornerRadiusTopLeft and cornerRadiusTopRight.

TypeScript

series.columns.template.column.cornerRadiusTopLeft = 5;
series.columns.template.column.cornerRadiusTopRight = 5;

JavaScript

series.columns.template.column.cornerRadiusTopLeft = 5;
series.columns.template.column.cornerRadiusTopRight = 5;

JSON

{
  // ...
  "series": [{
    "columns": {
      "column": {
        "cornerRadiusTopLeft": 5,
        "cornerRadiusTopRight": 5
      }
    }
  }]
}

However, if we do that, our negative-value columns look a bit off:

We could set bottom radii, too:

TypeScript

series.columns.template.column.cornerRadiusBottomLeft = 5;
series.columns.template.column.cornerRadiusBottomRight = 5;

JavaScript

series.columns.template.column.cornerRadiusBottomLeft = 5;
series.columns.template.column.cornerRadiusBottomRight = 5;

JSON

{
  // ...
  "series": [{
    "columns": {
      "column": {
        "cornerRadiusTopLeft": 5,
        "cornerRadiusTopRight": 5,
        "cornerRadiusBottomLeft": 5,
        "cornerRadiusBottomRight": 5
      }
    }
  }]
}

But that would create another problem - all columns rounded on both ends:

The solution

We need something that would set corner radius dynamically, based on each columns individual value.

That’s where adapters come in.

SIDE INFO Adapters are custom functions that can be attached to each element and modify value of any property.

TypeScript

function topRadius(radius, target) {
  return (target.dataItem && (target.dataItem.valueY < 0)) ? 0: 5;
}

function bottomRadius(radius, target) {
  return (target.dataItem && (target.dataItem.valueY > 0)) ? 0: 5;
}

series.columns.template.column.adapter.add("cornerRadiusTopLeft", topRadius);
series.columns.template.column.adapter.add("cornerRadiusTopRight", topRadius);
series.columns.template.column.adapter.add("cornerRadiusBottomLeft", bottomRadius);
series.columns.template.column.adapter.add("cornerRadiusBottomRight", bottomRadius);

JavaScript

function topRadius(radius, target) {
  return (target.dataItem && (target.dataItem.valueY < 0)) ? 0: 5;
}

function bottomRadius(radius, target) {
  return (target.dataItem && (target.dataItem.valueY > 0)) ? 0: 5;
}

series.columns.template.column.adapter.add("cornerRadiusTopLeft", topRadius);
series.columns.template.column.adapter.add("cornerRadiusTopRight", topRadius);
series.columns.template.column.adapter.add("cornerRadiusBottomLeft", bottomRadius);
series.columns.template.column.adapter.add("cornerRadiusBottomRight", bottomRadius);

JSON

{
  // ...
  "series": [{
    "columns": {
      "column": {
        "cornerRadiusTopLeft": function(radius, target) {
          return (target.dataItem && (target.dataItem.valueY < 0)) ? 0: 5;
        },
        "cornerRadiusTopRight": function(radius, target) {
          return (target.dataItem && (target.dataItem.valueY < 0)) ? 0: 5;
        },
        "cornerRadiusBottomLeft": function(radius, target) {
          return (target.dataItem && (target.dataItem.valueY > 0)) ? 0: 5;
        },
        "cornerRadiusBottomRight": function(radius, target) {
          return (target.dataItem && (target.dataItem.valueY > 0)) ? 0: 5;
        }
      }
    }
  }]
}

Done!

Example

Open in CodePen
